Engine Control System (L5)
>>
Control System Diagram [L5]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control System Diagram [L5]

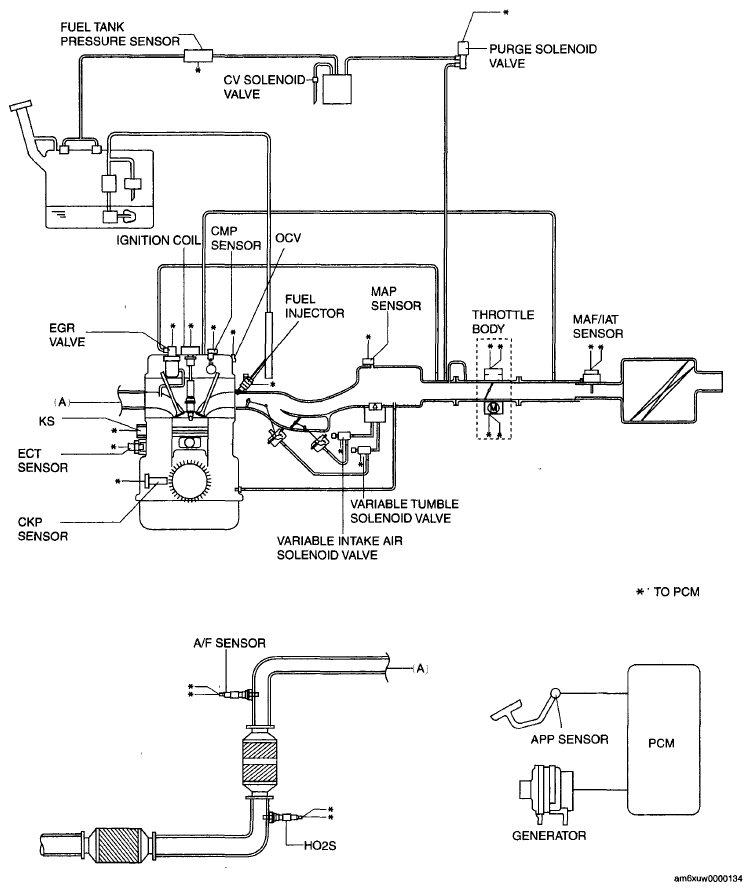

Fig 1: Control System Diagram [L5]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
