Diagnostic Trouble Code (DTC) Index - Restraints Control Module (RCM)



-
DIAGNOSTIC TROUBLE CODE (DTC) INDEX - RESTRAINTS CONTROL MODULE (RCM)

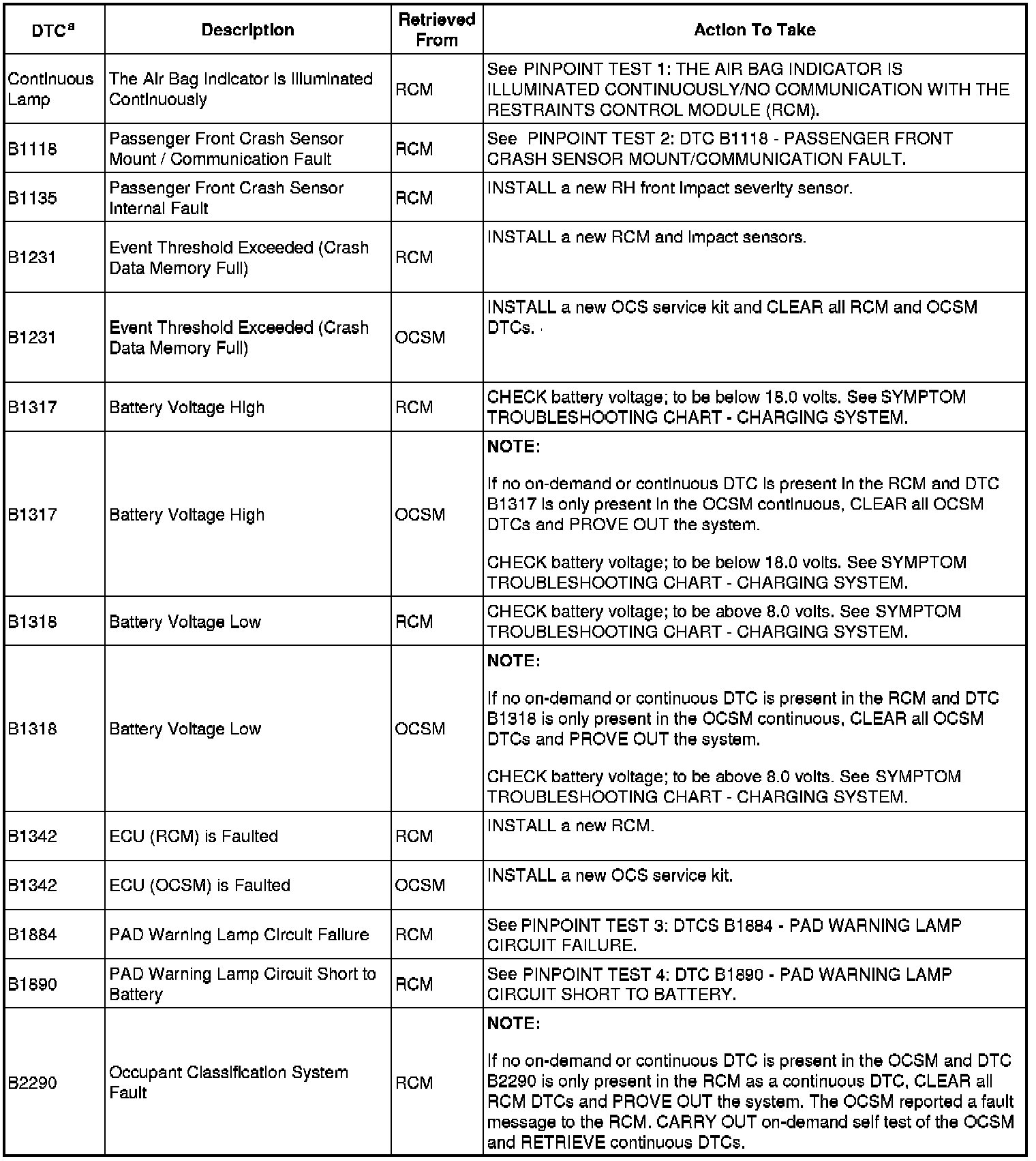

B1118-B2290:

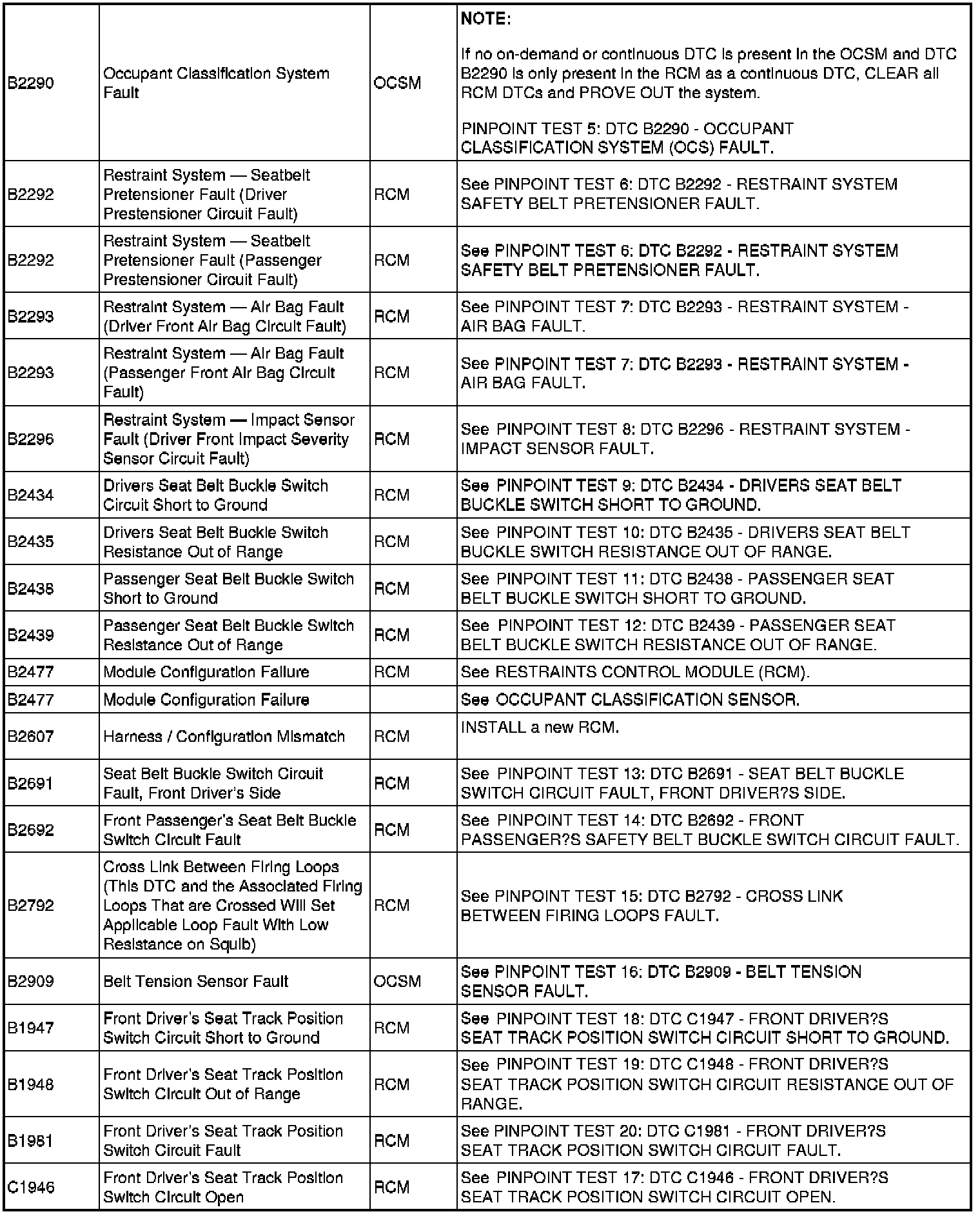

B1947-B2909 / C1946:

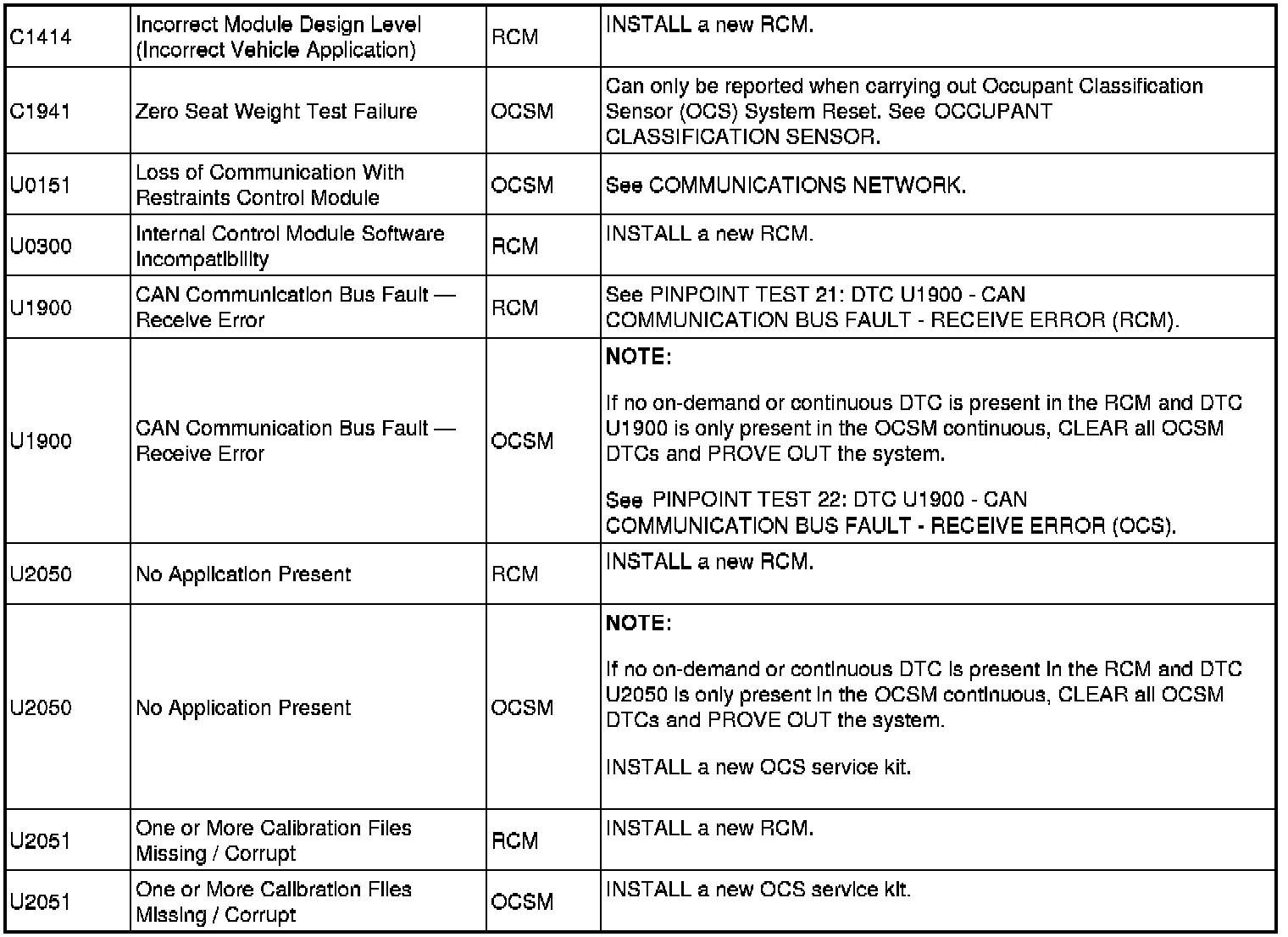

C1414-C1941 / U0151-U2051:





DTC: retrieved using a IDS or equivalent tester.
