Pinpoint Test 7: DTC C1414: Incorrect Module Design Level

PINPOINT TEST 7: DTC C1414: INCORRECT MODULE DESIGN LEVEL

Normal Operation

The anti-lock brake system (ABS) module is 2WD and 4WD specific. The ABS module used in 4WD application includes a G-sensor. It detects vehicle movements during a brake lockup event that is transferred to other wheels through the powertrain.

Possible Causes
- Circuit open
- Circuit shorted
- Instrument cluster
- ABS module

CAUTION:Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.

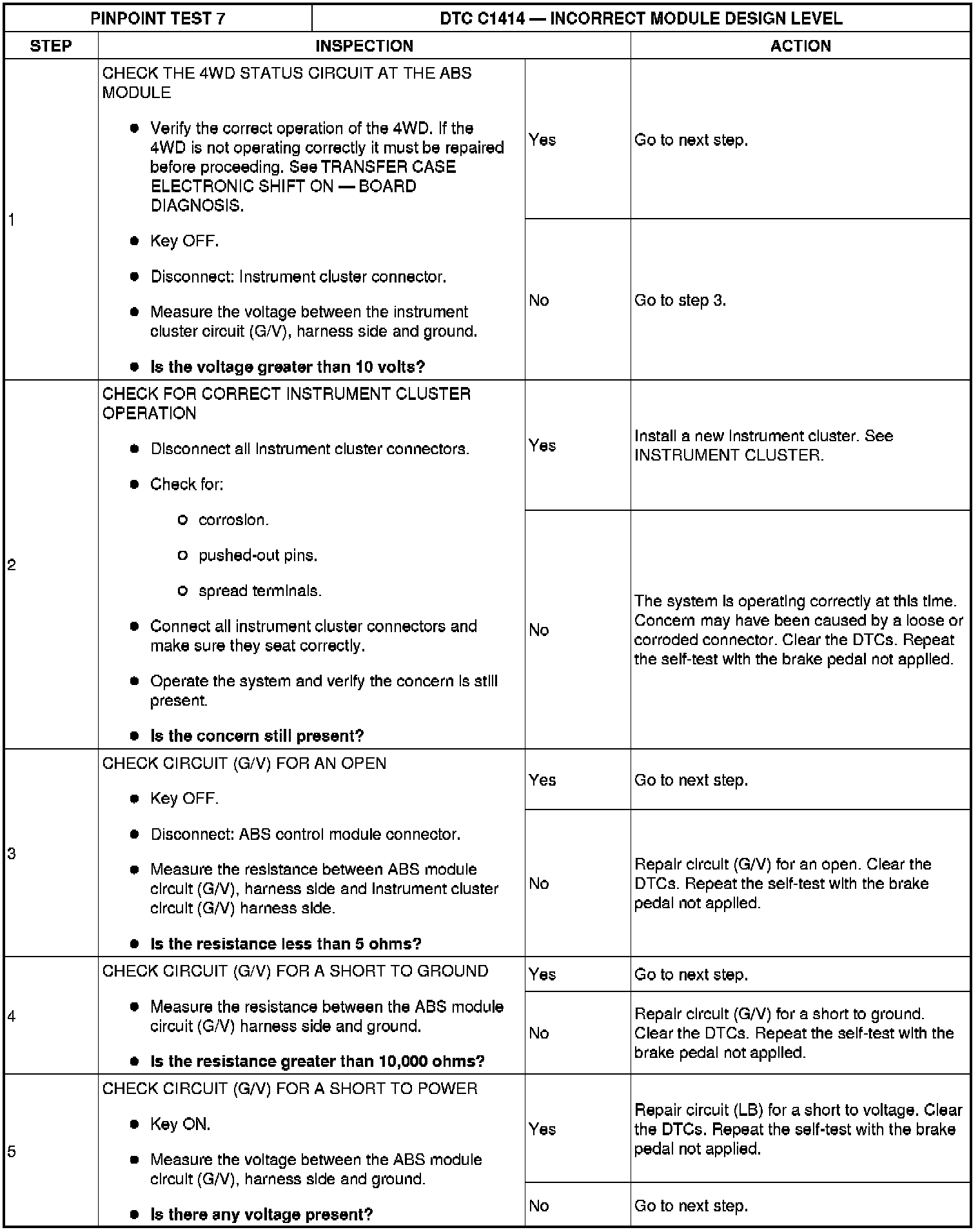

Step 1-Step 5:

Step 6:
