Blower Motor: Service and Repair

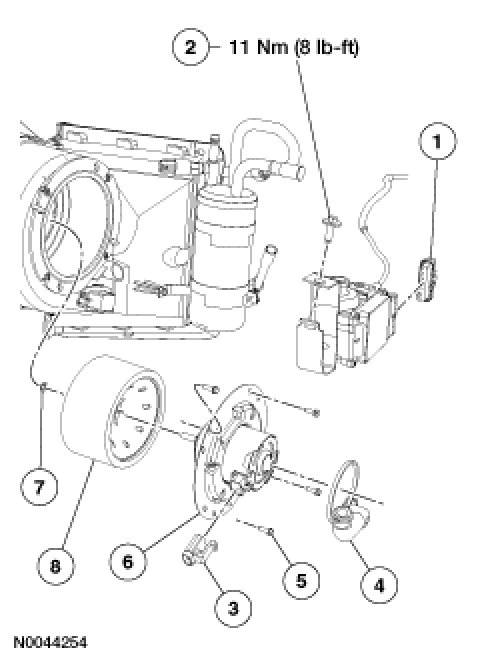

BLOWER MOTOR REMOVAL / INSTALLATION









1. Disconnect the speed control actuator electrical connector.

2. Remove the speed control actuator bolt and position the speed control actuator aside.

- To install, tighten to 11 Nm (8 ft-lbf).

3. Disconnect the blower motor electrical connector.

4. Remove the blower motor vent tube

5. Remove the 4 blower motor screws and the blower motor.

6. Remove the blower motor wheel clip.

7. Remove the blower motor wheel.

8. To install, reverse the removal procedure.
