Climate Control Pinpoint Test 7: Blower Motor Does Not Operate




CLIMATE CONTROL PINPOINT TEST 7: BLOWER MOTOR DOES NOT OPERATE

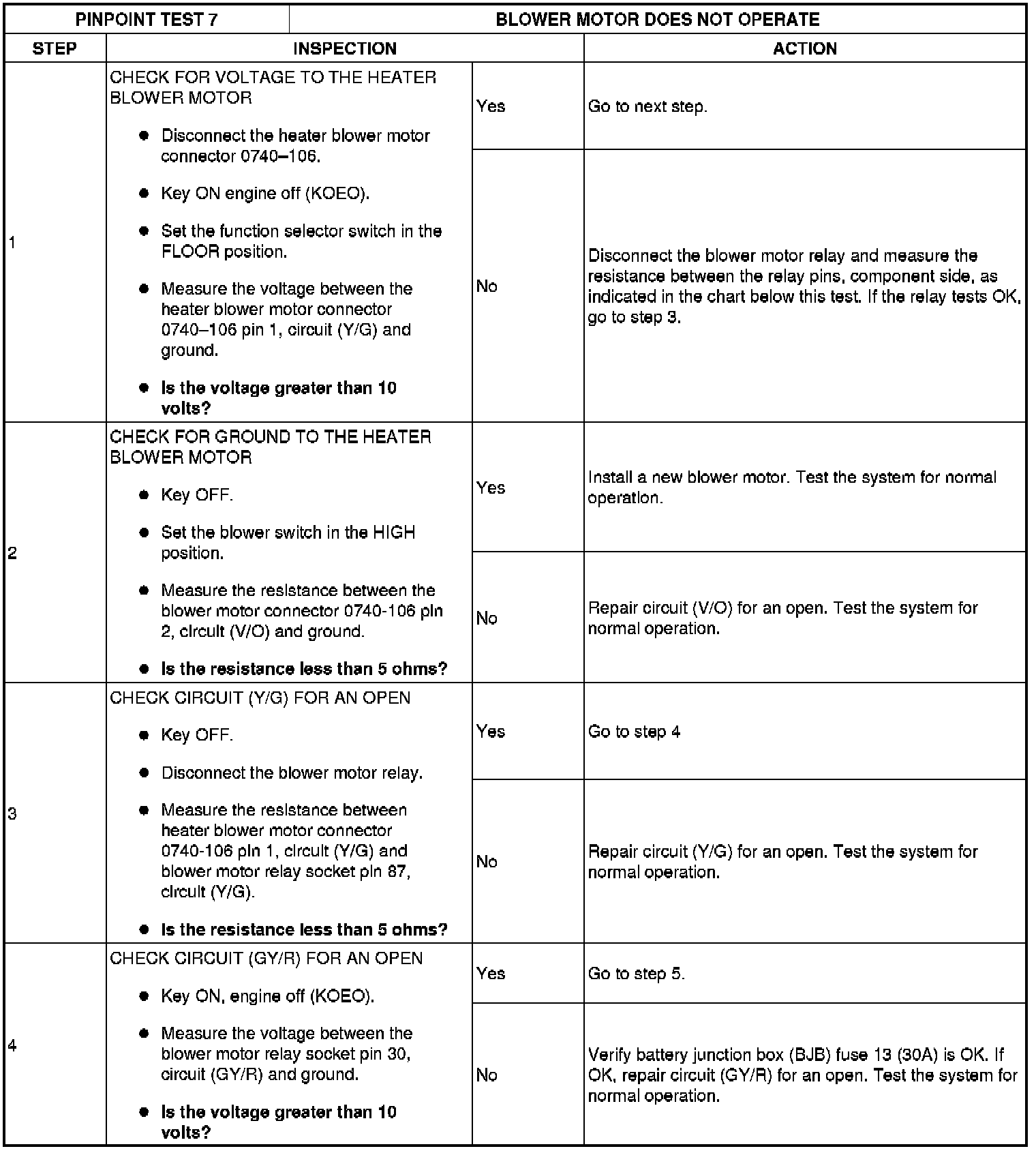

Step 1-Step 4:





Step 5-Step 6:
