Manifold Pressure/Vacuum Sensor: Testing and Inspection

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR MALFUNCTION (2.3L)

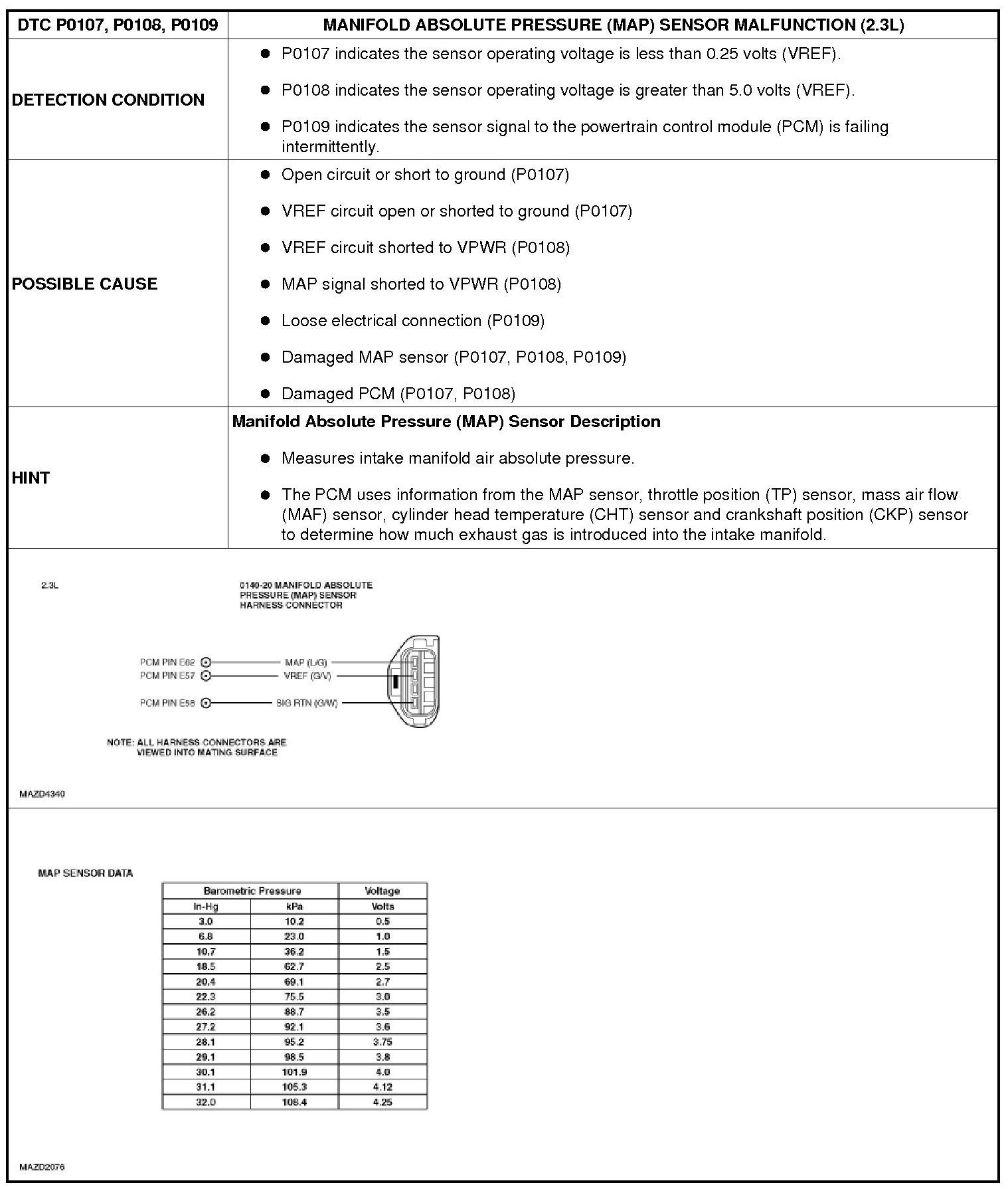

Detection Condition/Possible Cause:

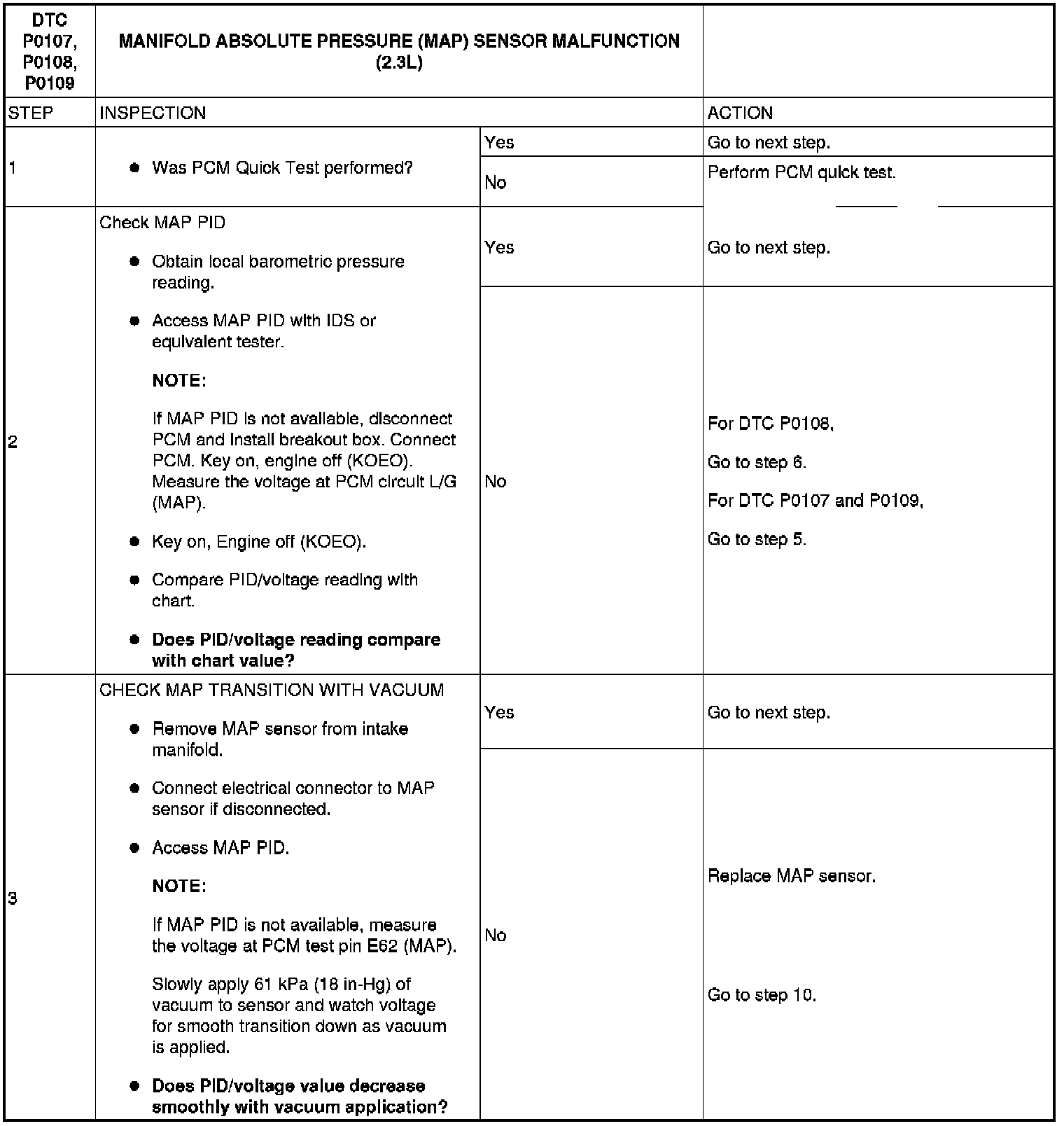

Step 1-Step 3:

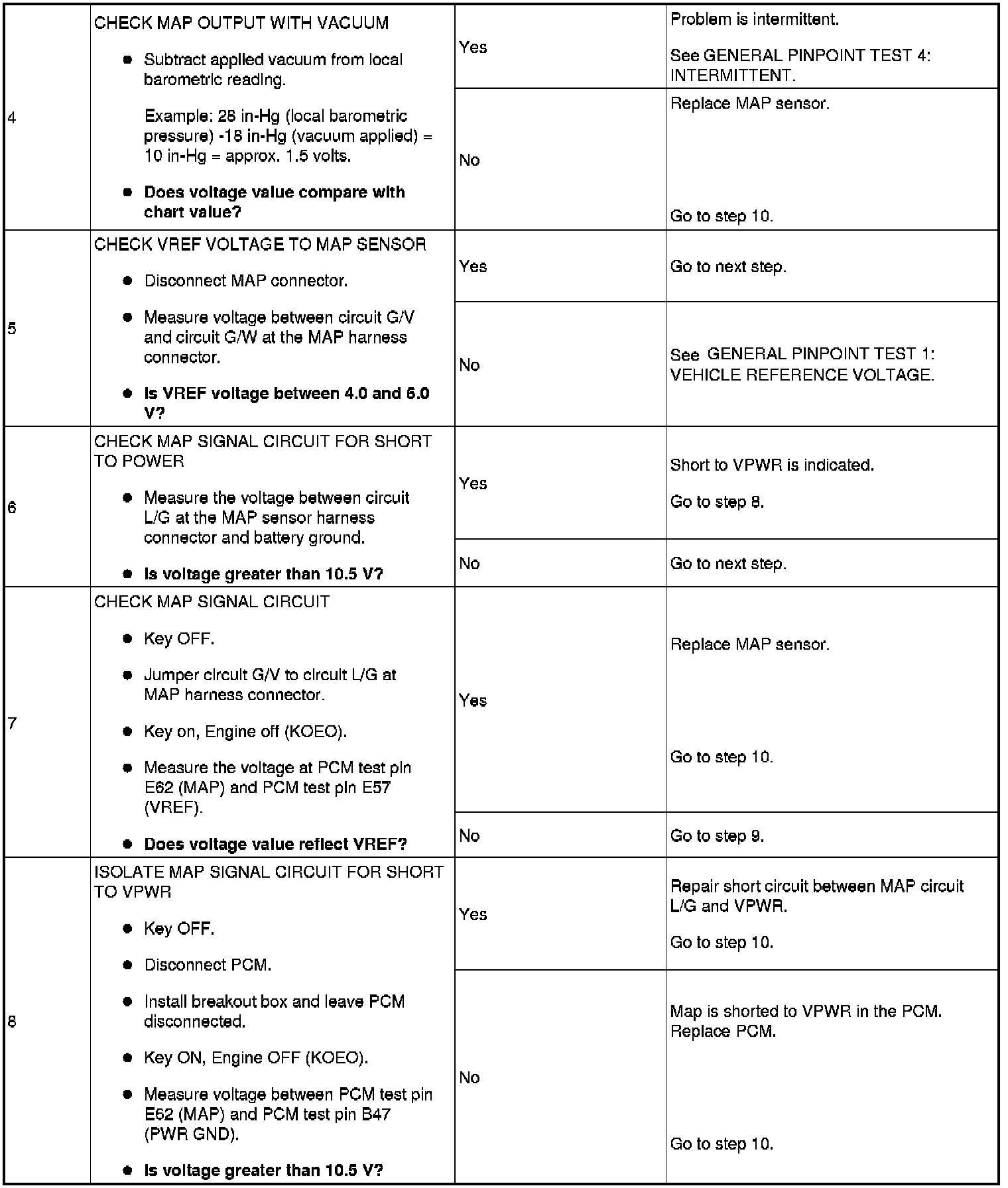

Step 4-Step 8:

Step 9-Step 10:
