Ignition Switch Inspection




IGNITION SWITCH INSPECTION

1. Remove the ignition switch. See Ignition Switch.

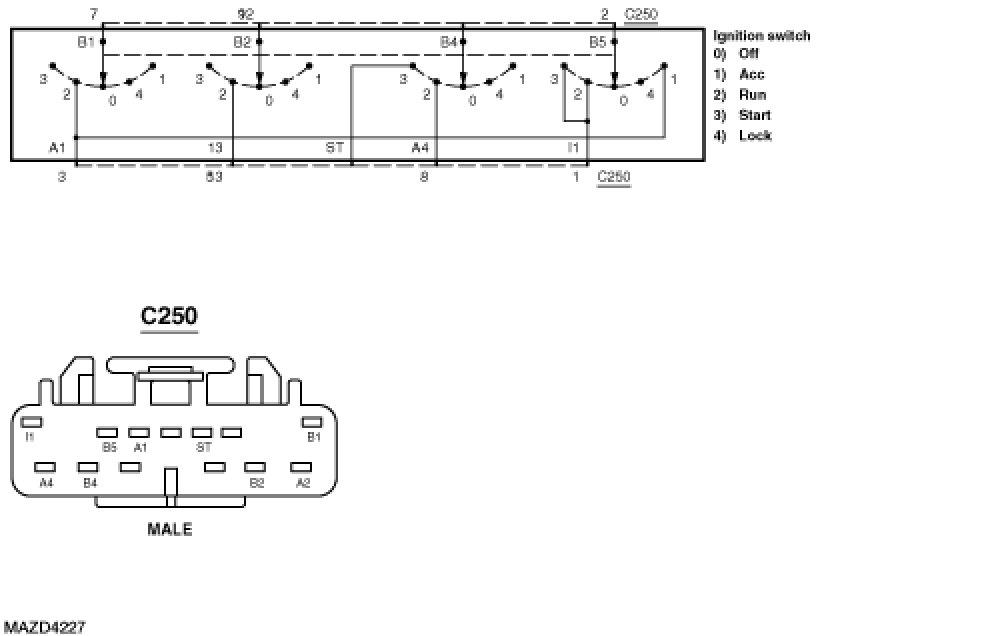

2. Inspect for continuity between the ignition switch terminals using an ohmmeter.





Inspection





1. If not as specified, replace the ignition switch.
