Starting System Pinpoint Test 1: Engine Does Not Crank
STARTING SYSTEM
PINPOINT TEST 1: ENGINE DOES NOT CRANK

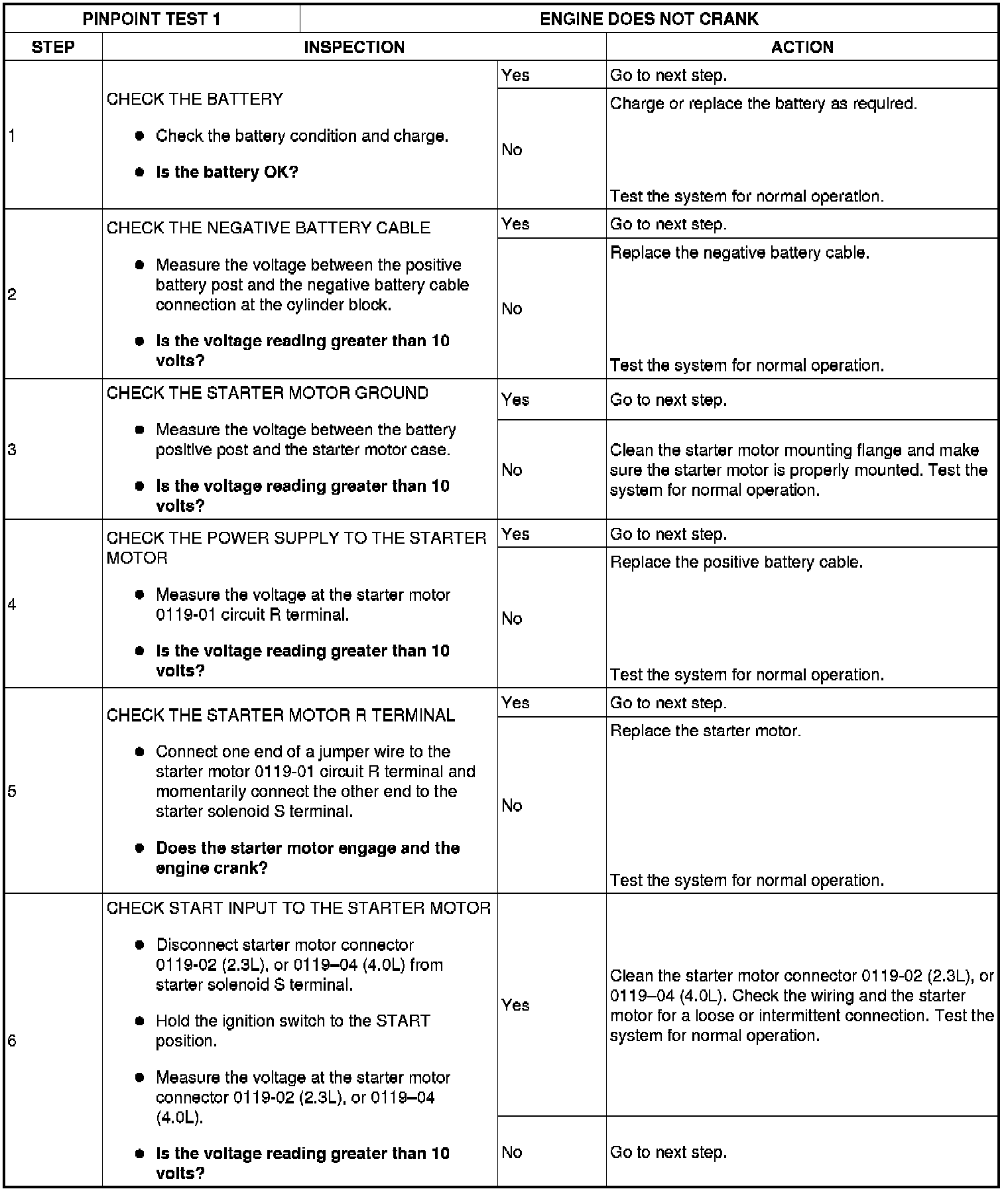

Step 1-Step 6:

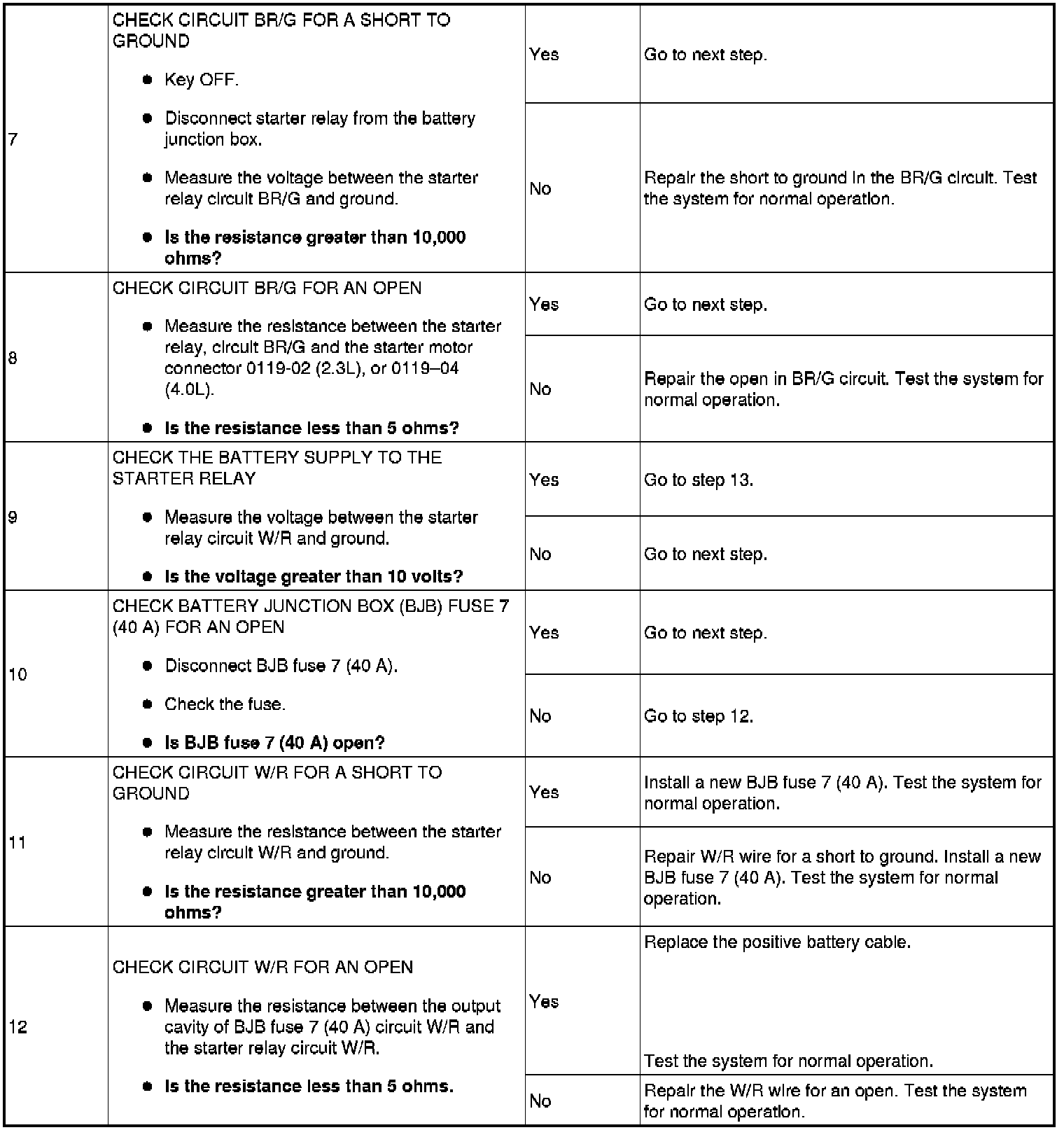

Step 7-Step 12:

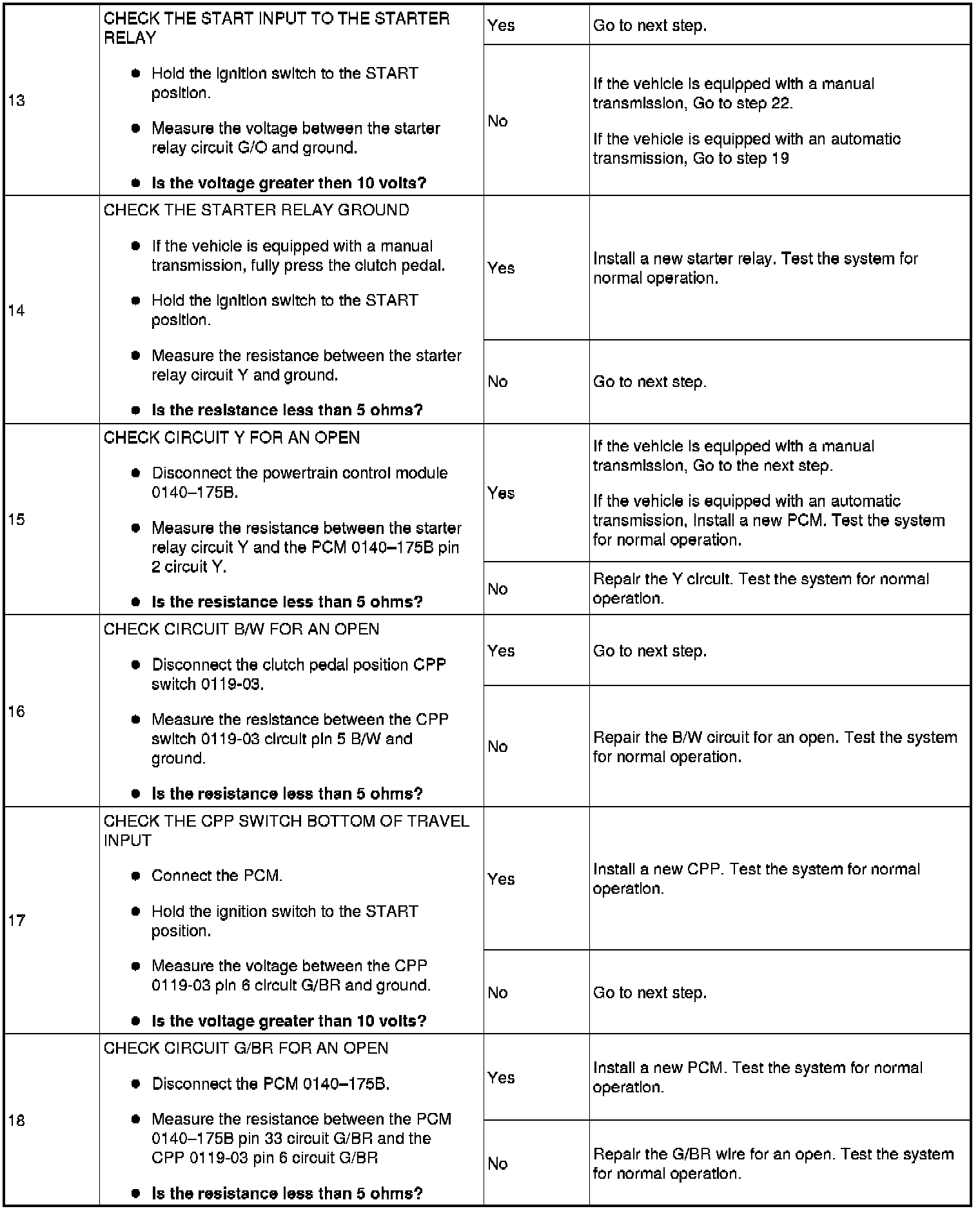

Step 13-Step 18:

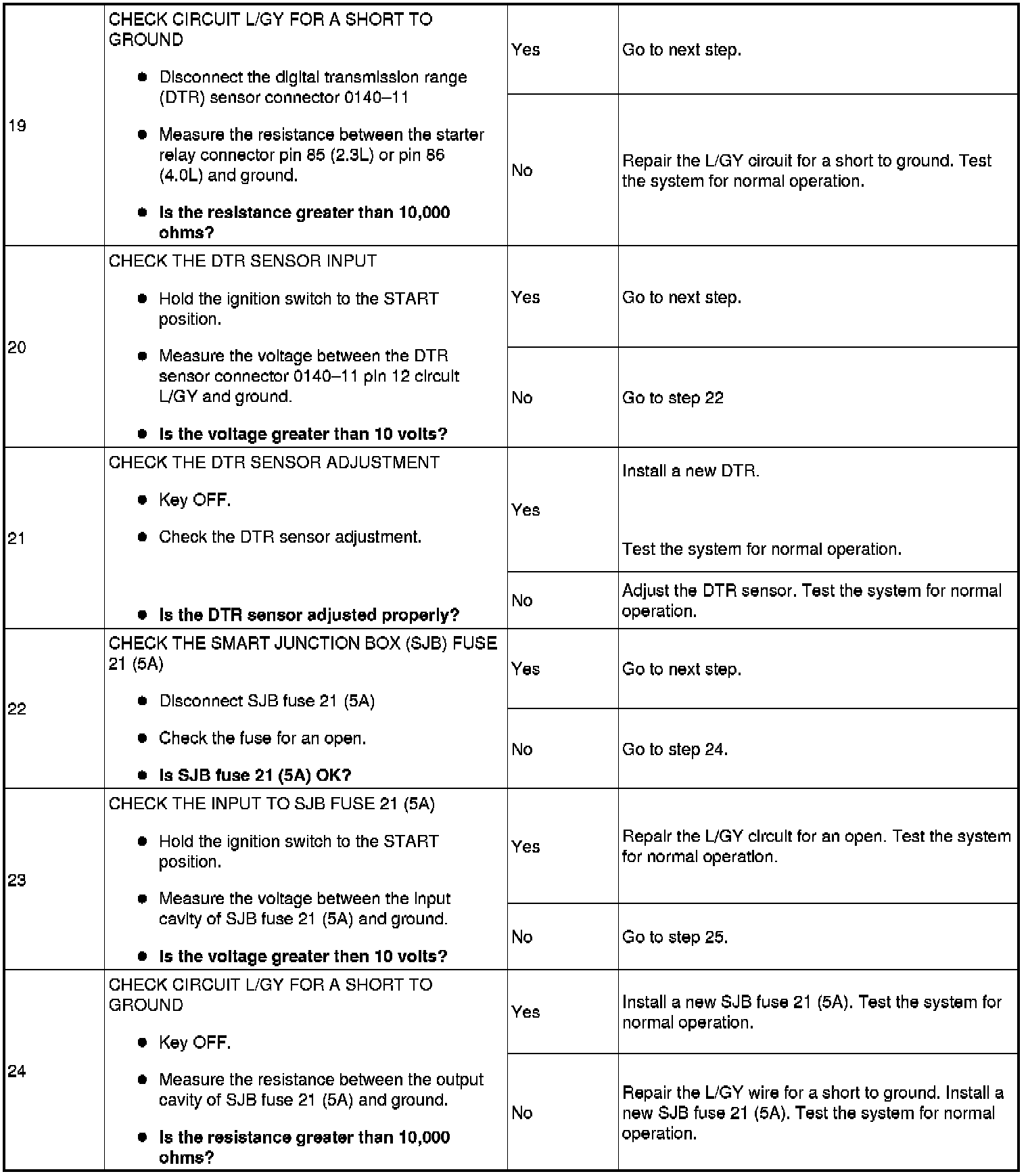

Step 19-Step 24:
Step 25-Step 26:
