Transmission Mode Switch: Service and Repair

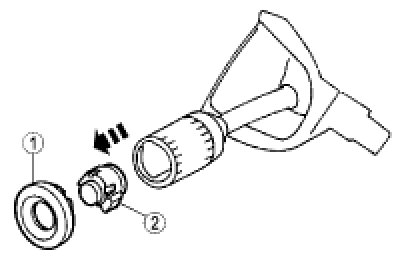

TRANSMISSION CONTROL SWITCH (TCS) REMOVAL / INSTALLATION

1. Remove the transmission control switch (TCS).
a. Carefully pry off the TCS cover.

b. Remove the TCS.






2. To install, reverse the removal procedure.
