Power Window Switch: Locations

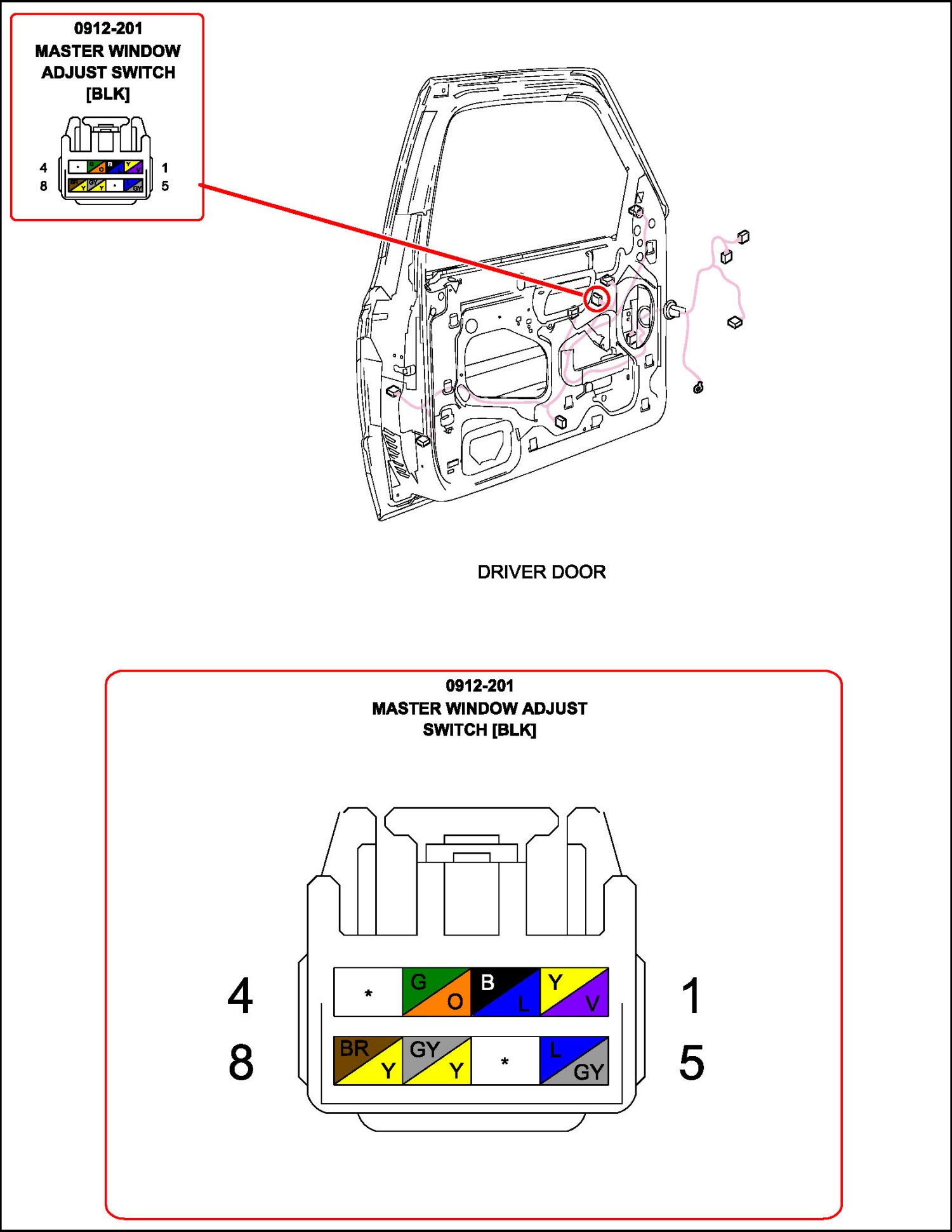

Master Window Adjust Switch:

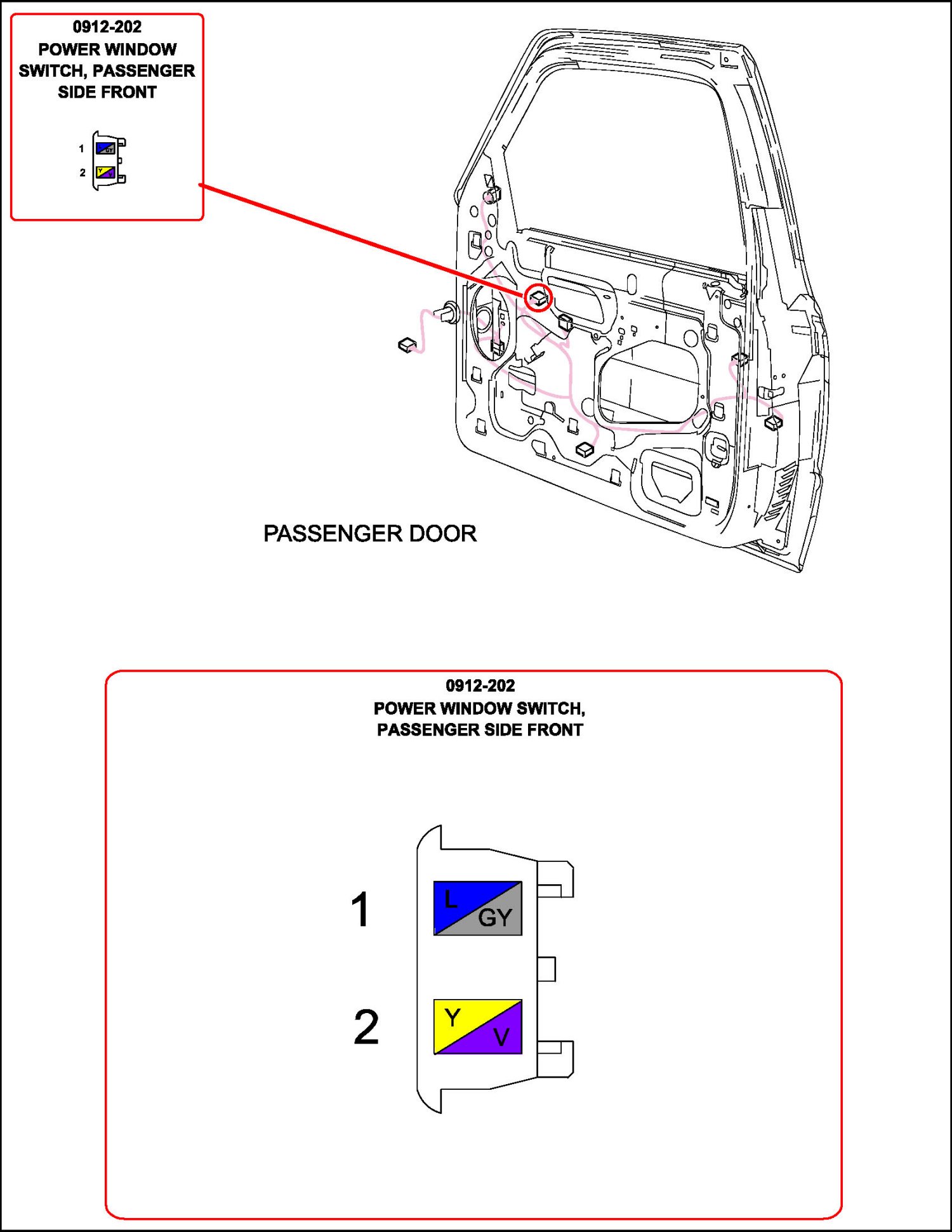

Power Window Switch, Passenger Side Front:
