Wiper Switch: Testing and Inspection




MULTIFUNCTION SWITCH INSPECTION

1. Remove the multifunction switch. See Service and Repair.

2. Inspect for continuity between the multifunction switch terminals using an ohmmeter.

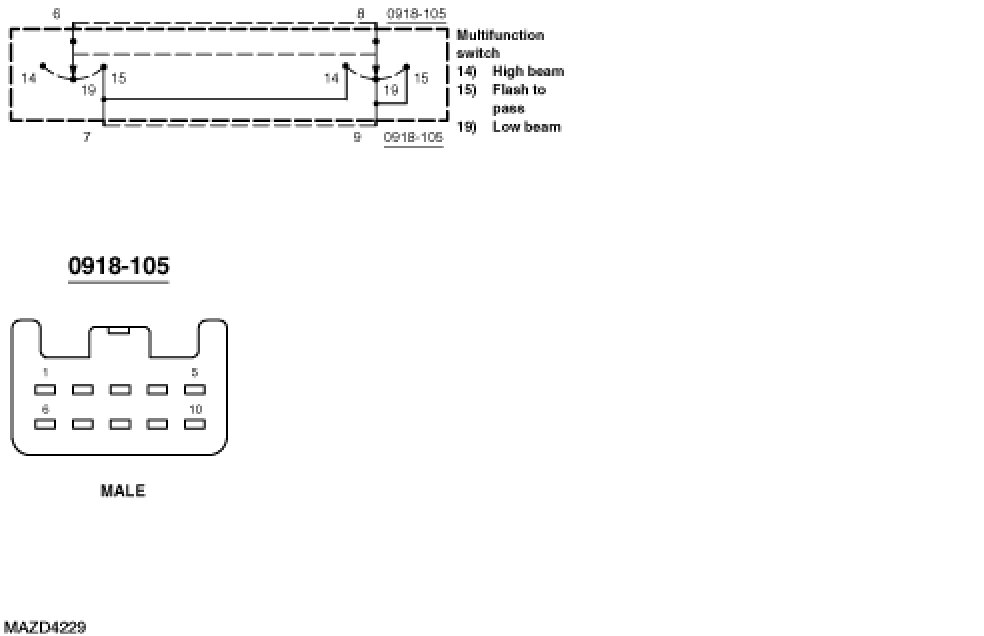

Lamp portion





Inspection

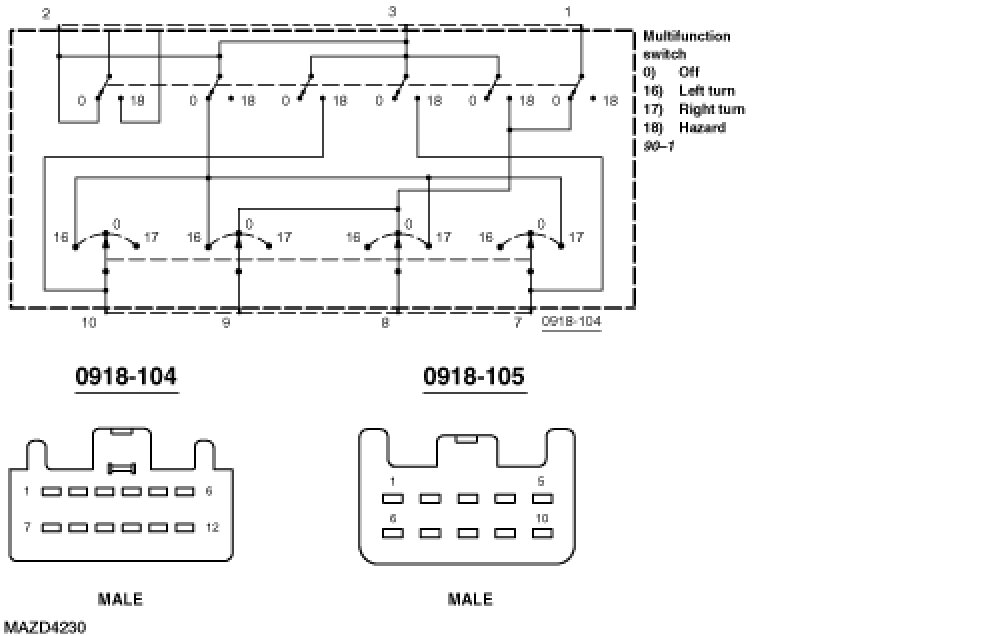

Turn signal portion





Inspection

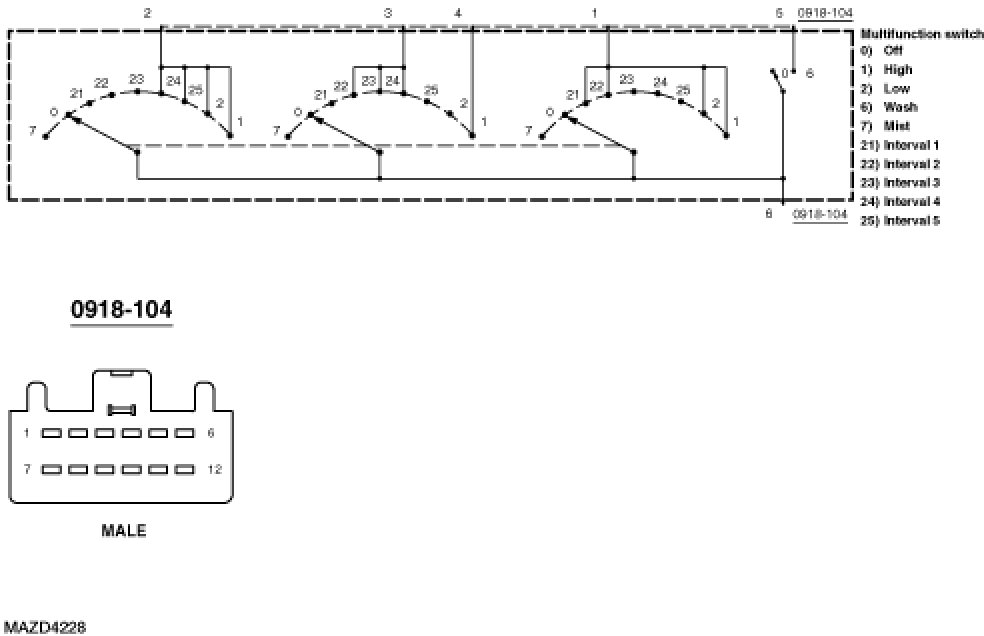

Wiper/washer portion





Inspection





3. If not as specified, replace the multifunction switch.
