Inner Tie Rod: Notes

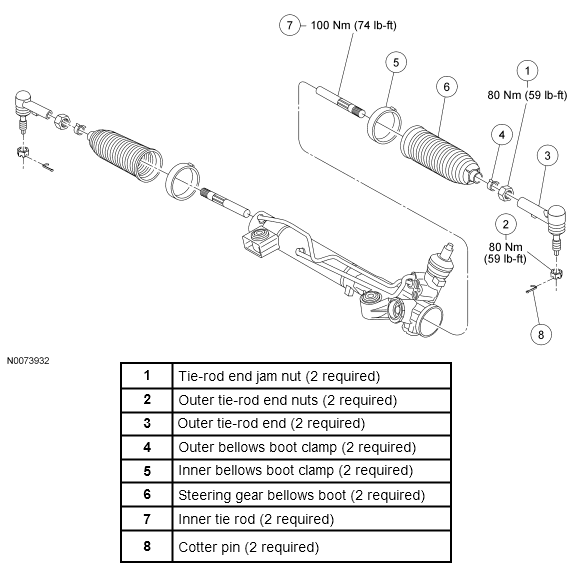

Fig 1: Inner Tie Rod Replacement Components With Torque Specifications
GF0047389Courtesy of MAZDA MOTOR CORP.
