Steering Wheel: Notes

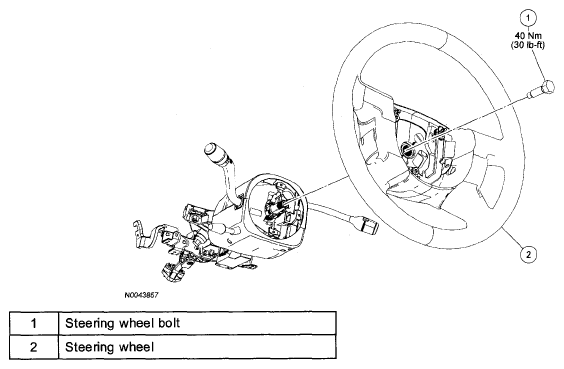

Fig 1: Steering Wheel With Torque Specification

G04930707

Courtesy of MAZDA MOTORS CORP.
