Navigation Display: Service and Repair

CAR-NAVIGATION UNIT REMOVAL/INSTALLATION

NOTE:
- Car-navigation unit is located under the front seat (passenger's side).

1. Disconnect the negative battery cable.

2. Remove the seat belt anchor. (passenger's side) Front Seat Belt Removal/Installation

3. Remove the front seat. (passenger's side) Front Seat Removal/Installation

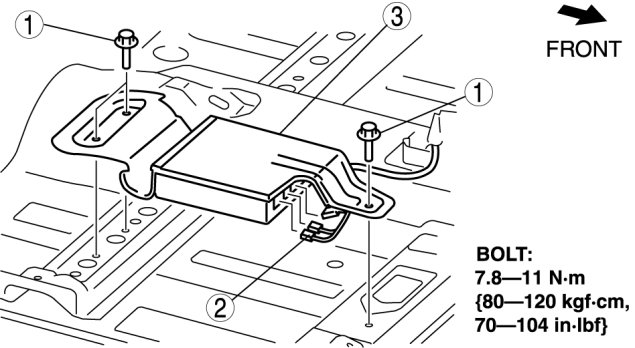

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
