Body Control Systems: Service and Repair

BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION

NOTE:
- Perform the theft-deterrent system initialization when the BCM is replaced with a new one.

1. Disconnect the negative battery cable.

2. Remove the front scuff plate inner (LH). (See Front Scuff Plate Removal/Installation)

3. Remove the front side trim (LH). (See Front Side Trim Removal/Installation)

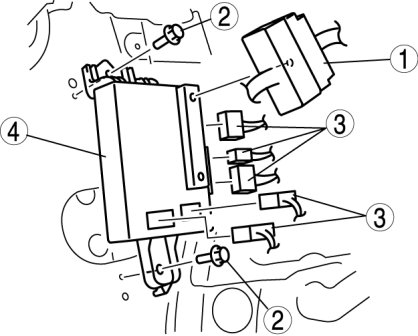

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
