ABS Wheel-Speed Sensor LR

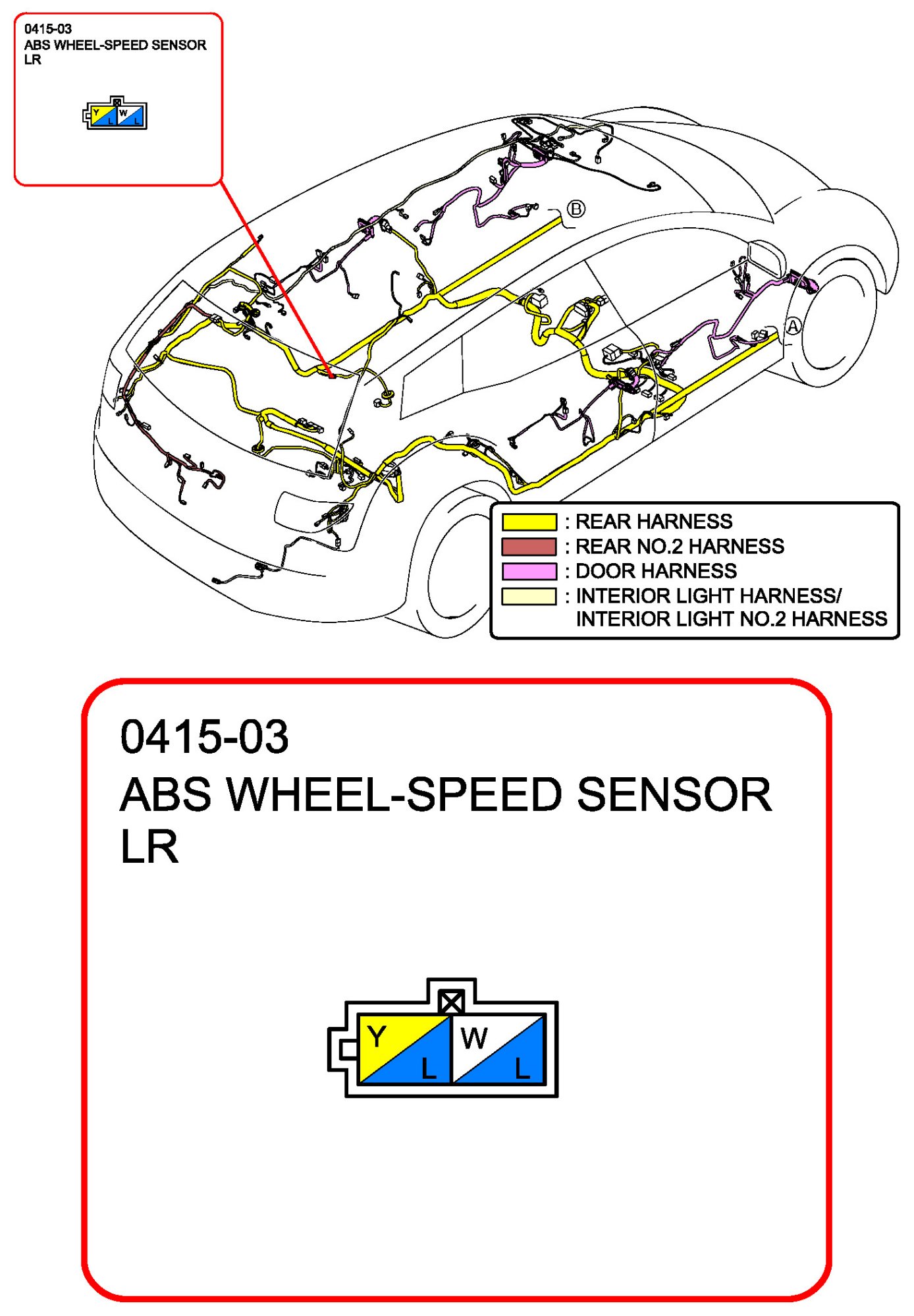

ABS Wheel-Speed Sensor LR:

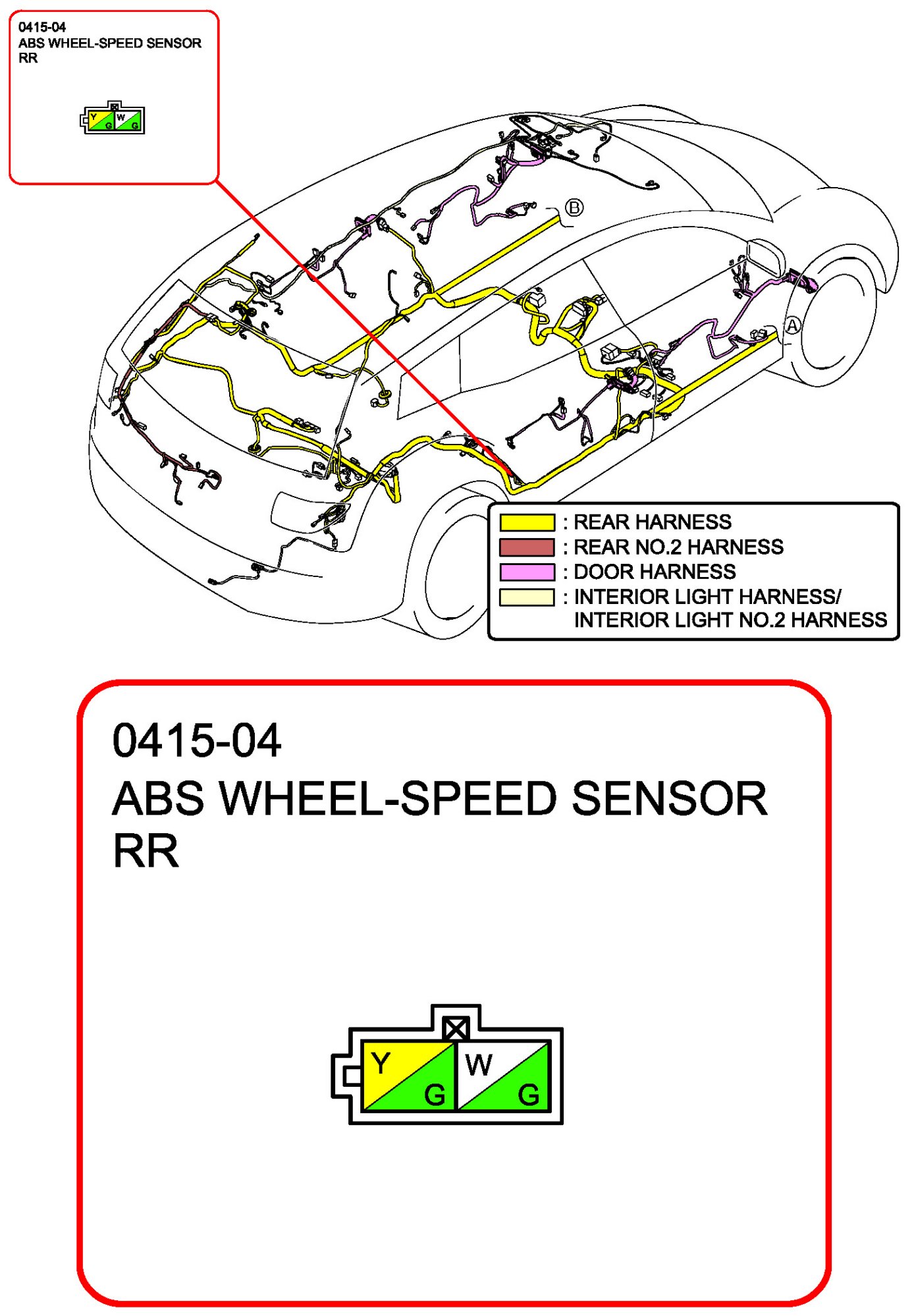

ABS Wheel-Speed Sensor RR:
ABS Wheel-Speed Sensor LF:

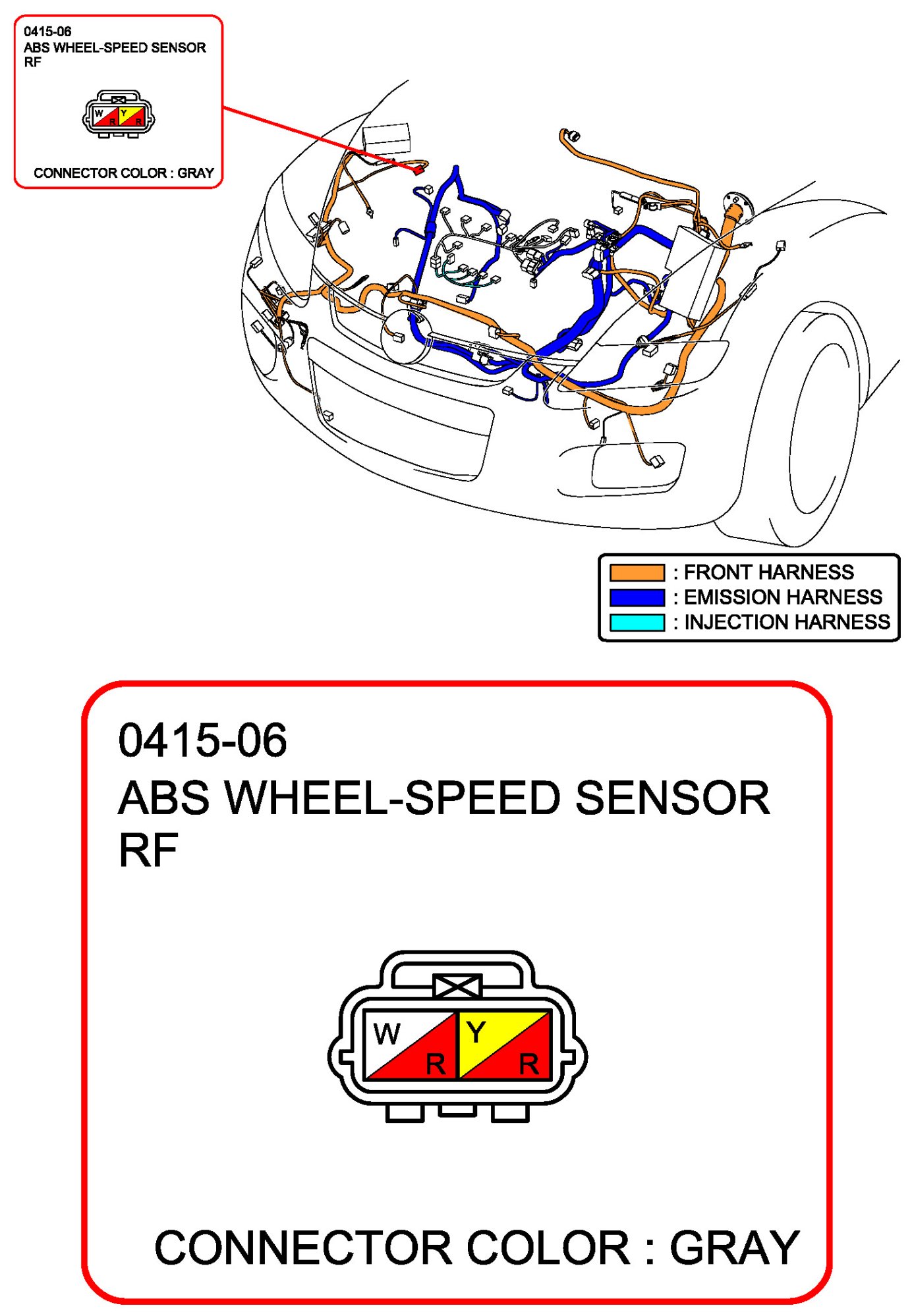

ABS Wheel-Speed Sensor RF:
