Airflow Volume Control Dial Inspection




AIRFLOW VOLUME CONTROL DIAL INSPECTION

1. Remove the climate control unit.

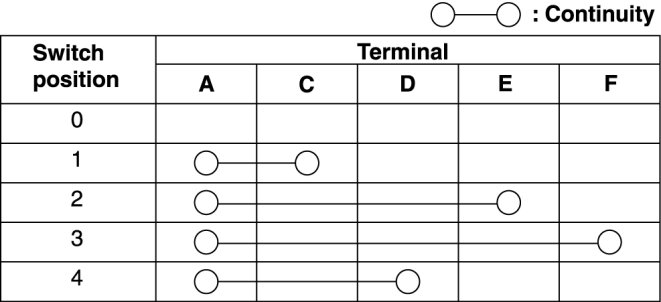

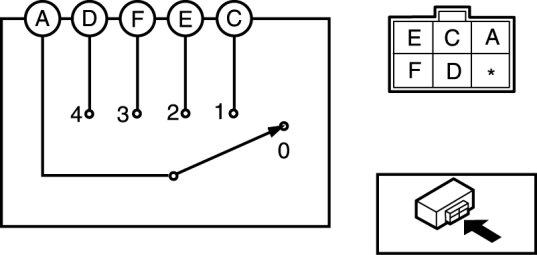

2. Inspect for continuity between the airflow volume control dial terminals using an ohmmeter.

- If not as specified, replace the airflow volume control dial.
