Auto Light Control Module Removal/Installation




AUTO LIGHT CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the meter hood. Meter Hood Removal/Installation

3. Remove the instrument cluster. Removal and Replacement

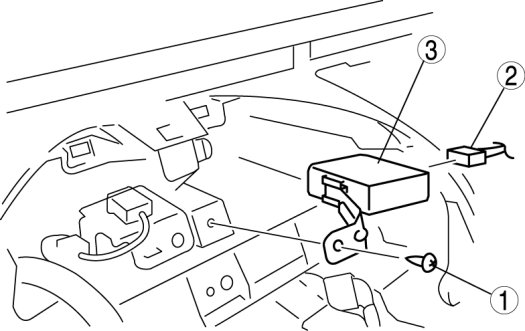

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
