Cylinder Head
Cylinder Head Installation Note

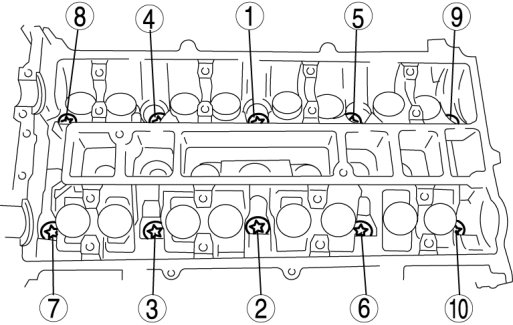

Tightening procedure
Step 1 3.0-11 Nm {31-112 kgf-cm, 27-97 in-lbf}
Step 2 13-17 Nm {133-173 kgf-cm, 116-150 in-lbf}
Step 3 43-47 Nm {4.4-4.7 kgf-m, 32-34 ft-lbf}
Step 4 88°-92°
Step 5 88°-92°
Tightening procedure
Step 1 3.0-11 Nm {31-112 kgf-cm, 27-97 in-lbf}
Step 2 13-17 Nm {133-173 kgf-cm, 116-150 in-lbf}
Step 3 43-47 Nm {4.4-4.7 kgf-m, 32-34 ft-lbf}
Step 4 88°-92°
Step 5 88°-92°
