Oil Pump, Engine

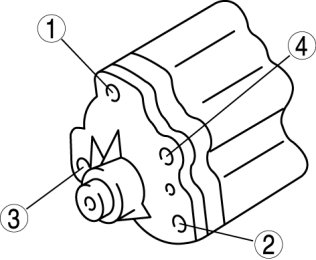

Tighten the oil pump bolts in two steps in the order shown in the figure.






Tightening torque
Step 1: 8-12 Nm {82-122 kgf-cm, 71-105 in-lbf}
Step 2: 17-23 Nm {1.8-2.3 kgf-m, 12.6-16.9 ft-lbf}
