Slider Motor and Position Sensor

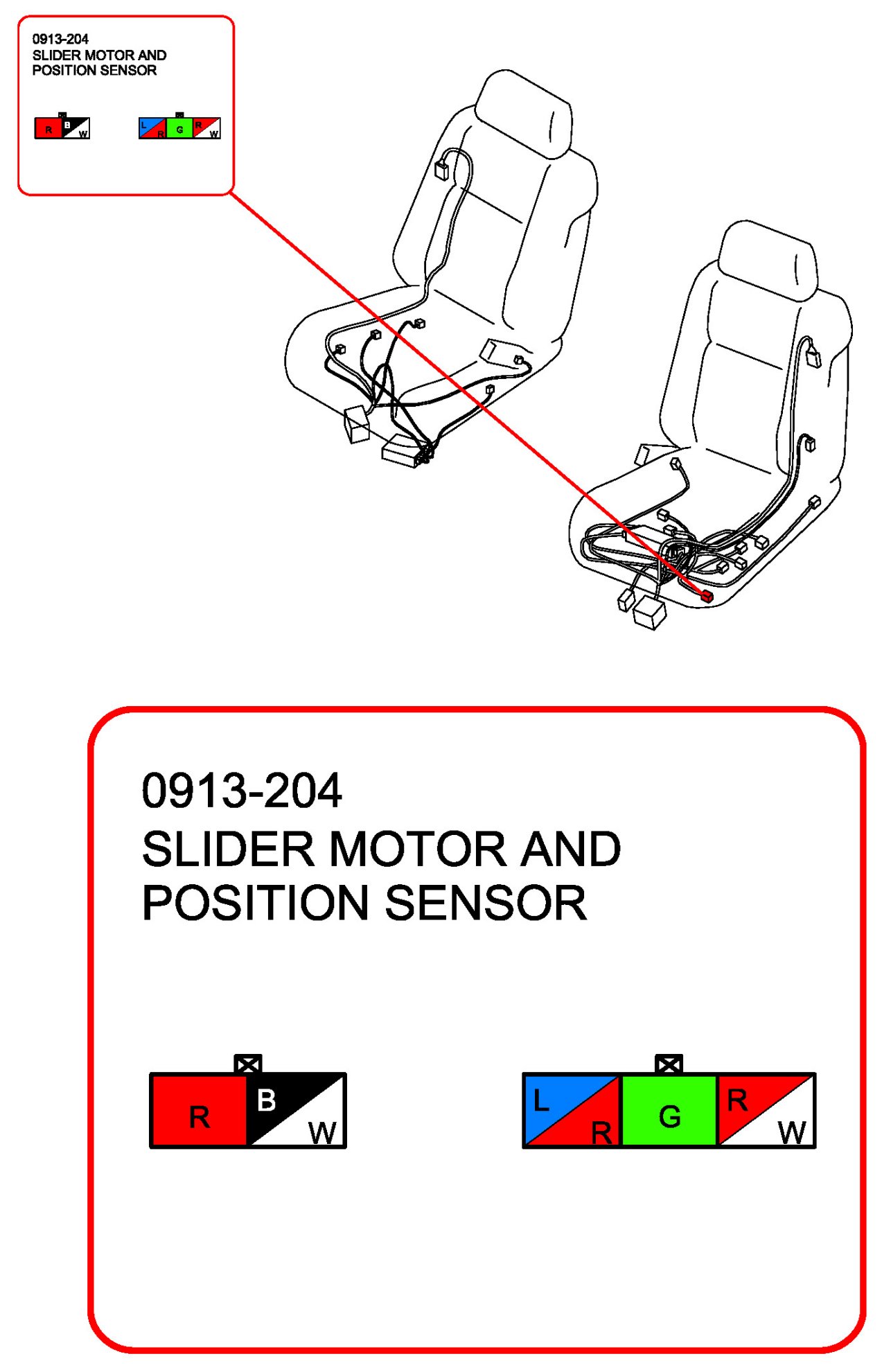

Slider Motor And Position Sensor:

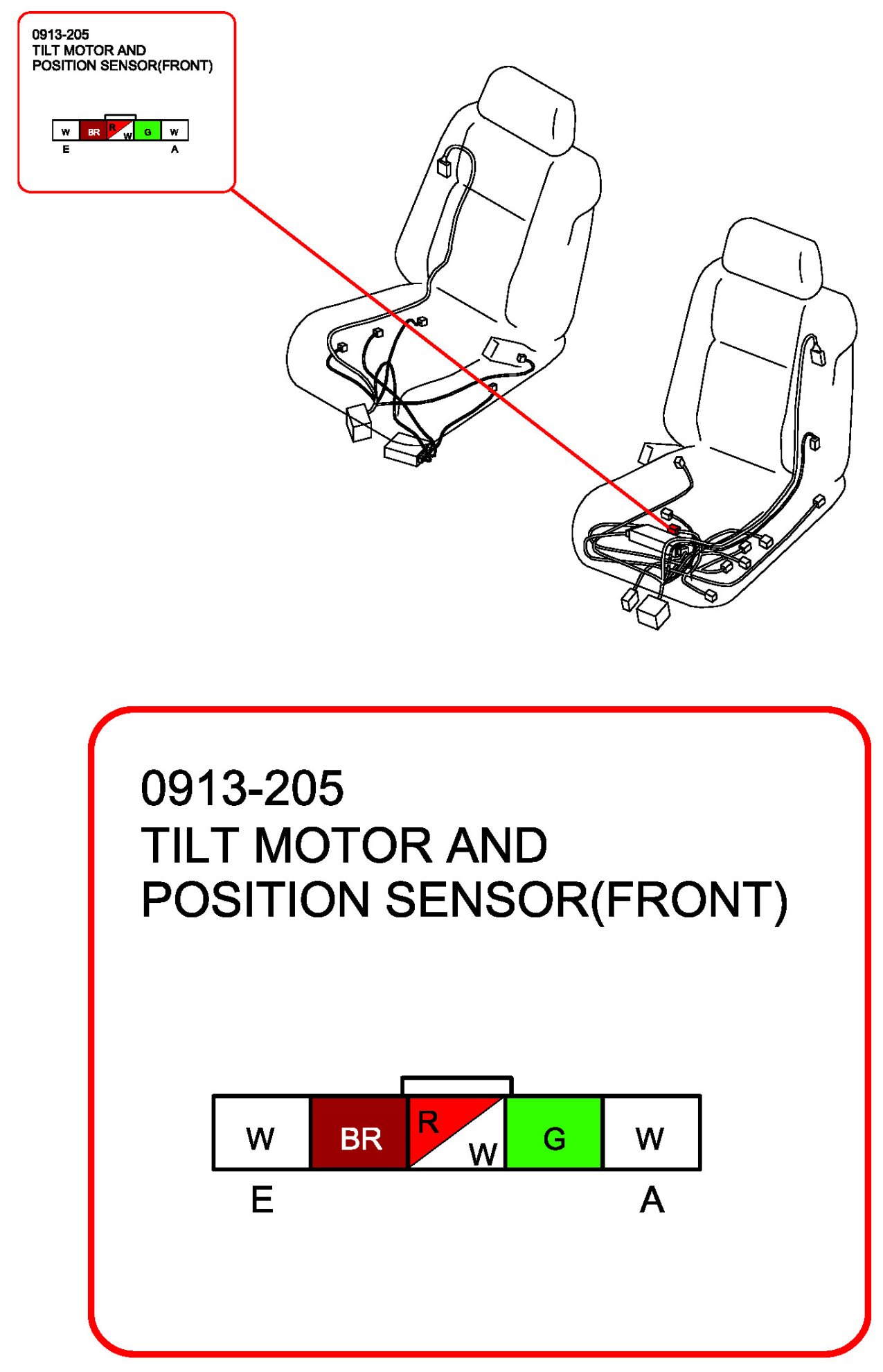

Tilt Motor And Position Sensor (Front):

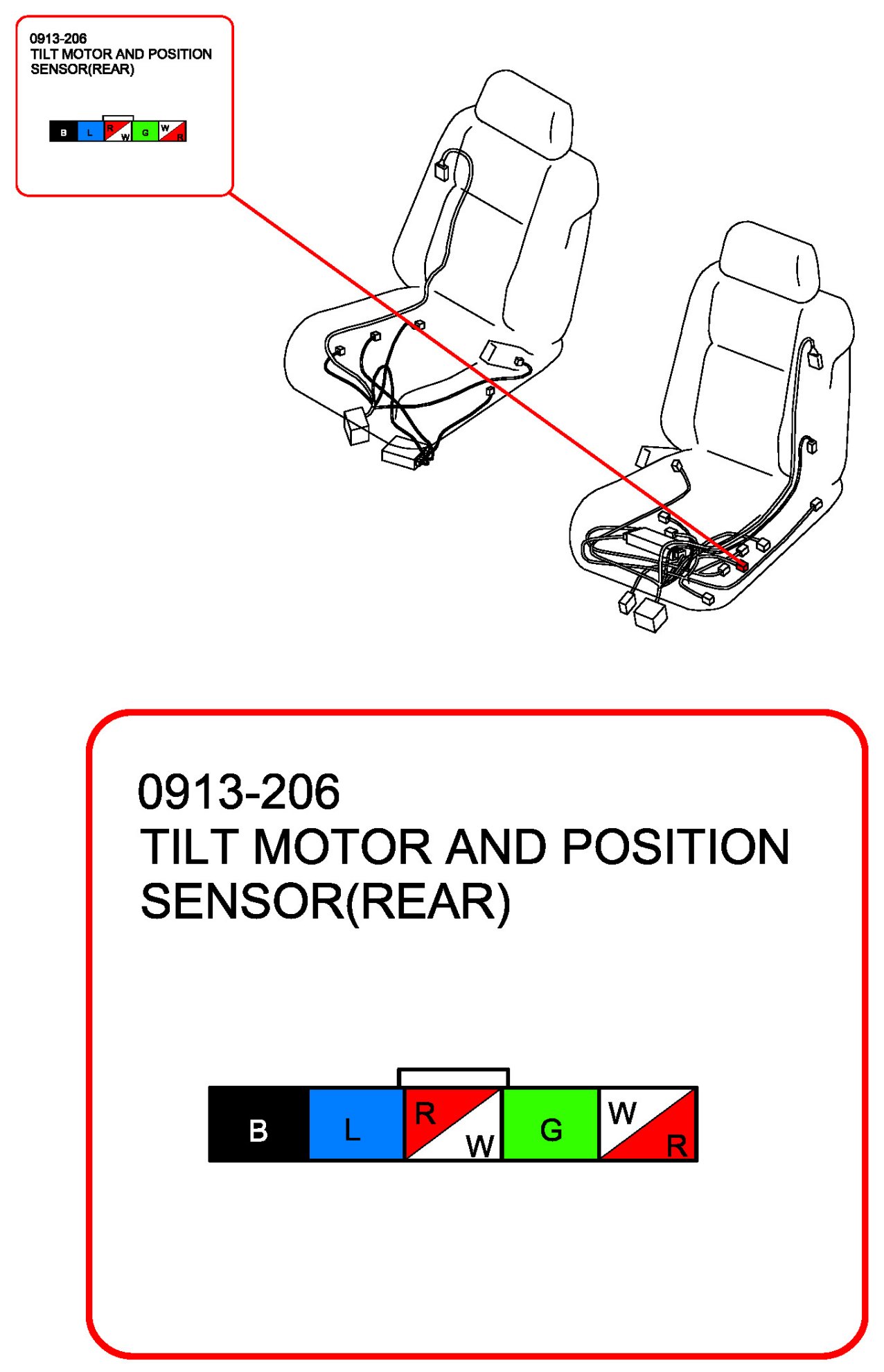

Tilt Motor And Position Sensor (Rear):

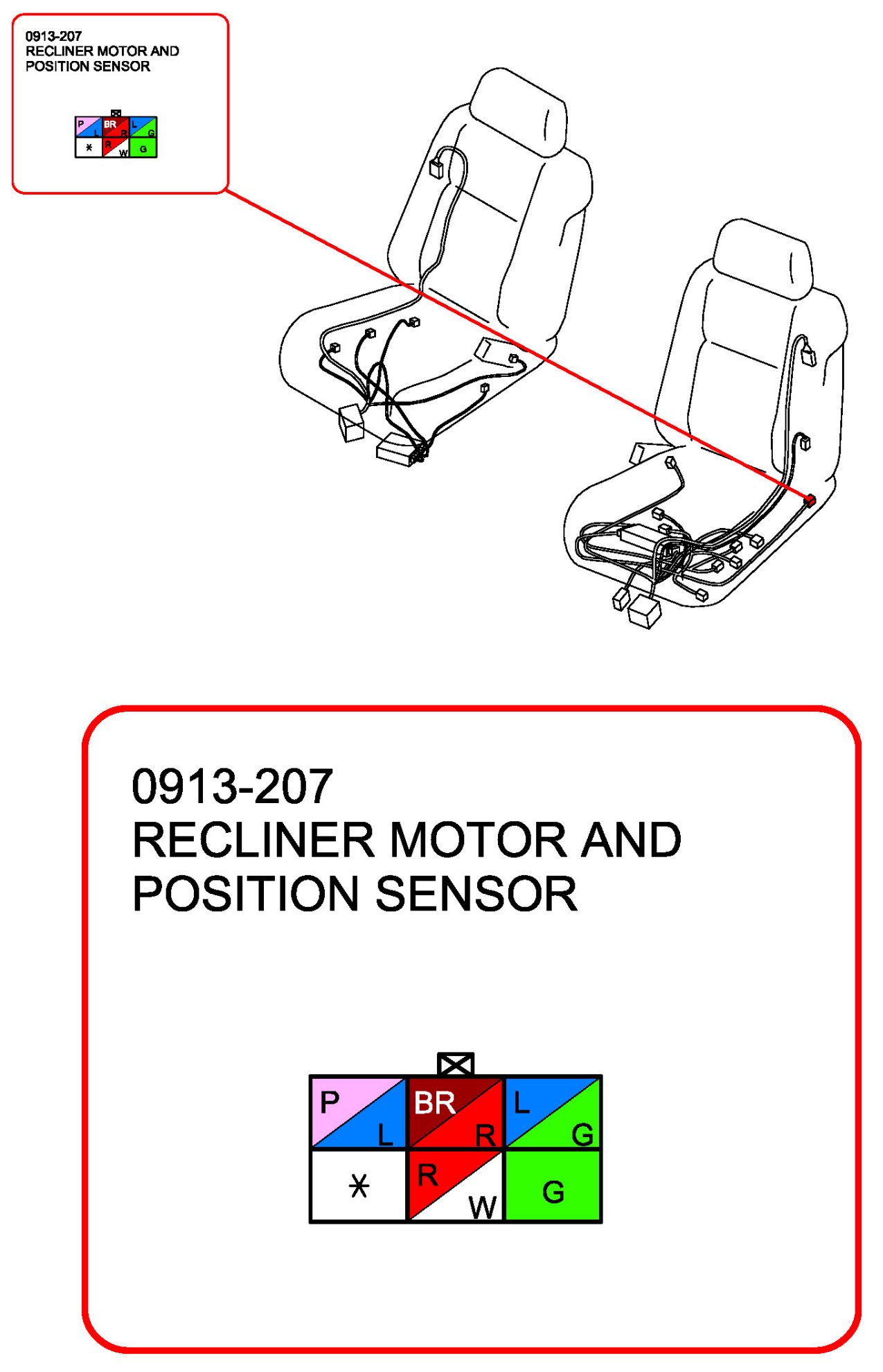

Recliner Motor And Position Sensor:

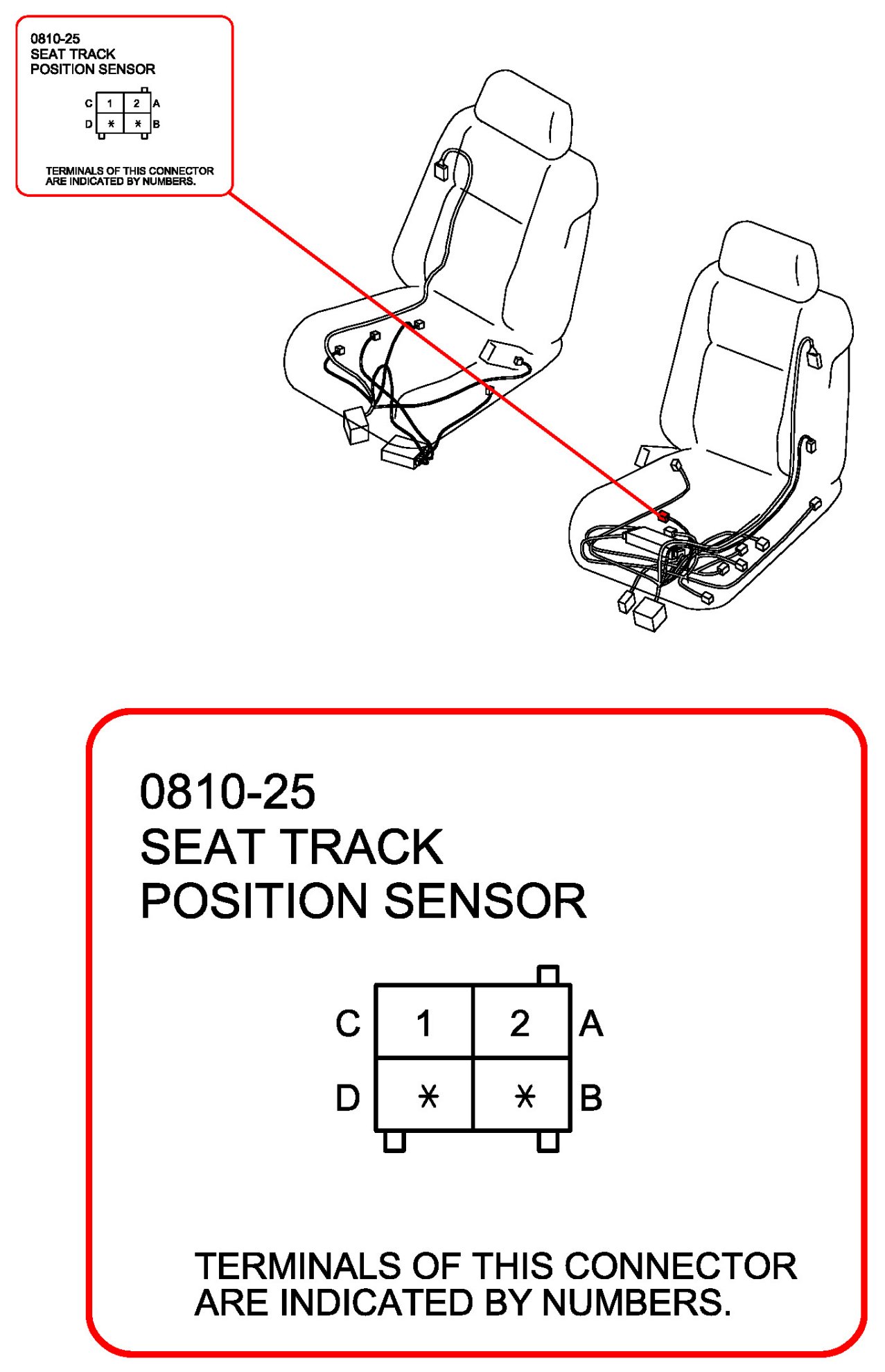

Seat Track Position Sensor:
