Compressor Clutch: Adjustments

MAGNETIC CLUTCH ADJUSTMENT

1. Secure the A/C compressor to the vise.

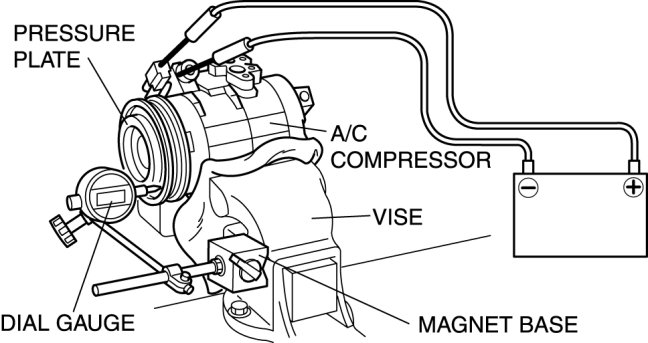

2. Secure the magnet base to the vise and install the dial gauge to the position shown in the figure.

3. Set the dial gauge to 0.

4. Connect battery voltage to stator terminal A and the A/C compressor body to ground to operate the magnet clutch.

5. Verify that the dial gauge graduation is within the standard.

- If the clearance is not within the specification, adjust the clearance by changing the type or number of shims.

Magnetic clutch clearance
- 0.35-0.65 mm {0.014-0.025 in}
