Power Steering Fluid: Testing and Inspection

POWER STEERING FLUID INSPECTION

Fluid Level Inspection

1. Inspect the power steering fluid level.

- Add fluid to the specified level as necessary.

Power steering fluid type
- ATF-MIII, M-V or Dexron(R)II

Power steering fluid capacity (approximate quantity)
- 1.27 L {1.34 US qt, 1.11 lmp qt}

Fluid Leakage Inspection

1. Start the engine and let it idle.

2. Turn the steering wheel fully to the left and right to apply fluid pressure.

CAUTION:
- If the steering wheel is kept in the fully turned position for more than 5 seconds, the fluid temperature will rise excessively and adversely affect the oil pump.

3. Inspect for fluid leakage.






- If fluid leakage is found, replace related pipe or hose.

NOTE:

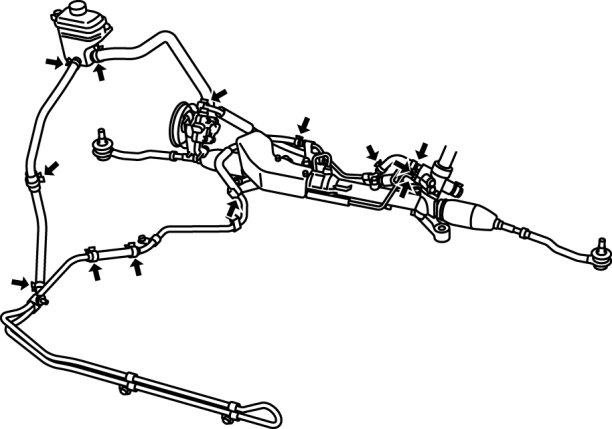

- The points where fluid leakage may occur are indicated in the figure.
