Temperature Sensor/Switch: Service and Repair

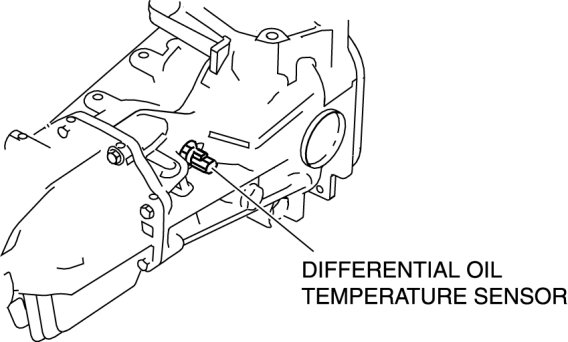

DIFFERENTIAL OIL TEMPERATURE SENSOR REMOVAL/INSTALLATION

WARNING:
- Hot differential oil may cause severe burns. Do not perform maintenance while differential oil is hot.

1. Disconnect the negative battery cable.

2. Disconnect the differential oil temperature sensor connector.

3. Remove the differential oil temperature sensor.






4. Apply differential oil to the O-ring.

5. Install the differential oil temperature sensor.

Tightening torque
- 12.7-17.3 Nm {1.3-1.7 kgf-m, 9.4-12.7 ft-lbf}

6. Connect the differential oil temperature sensor connector.

7. Connect the negative battery cable.
