Transverse Member Removal/Installation

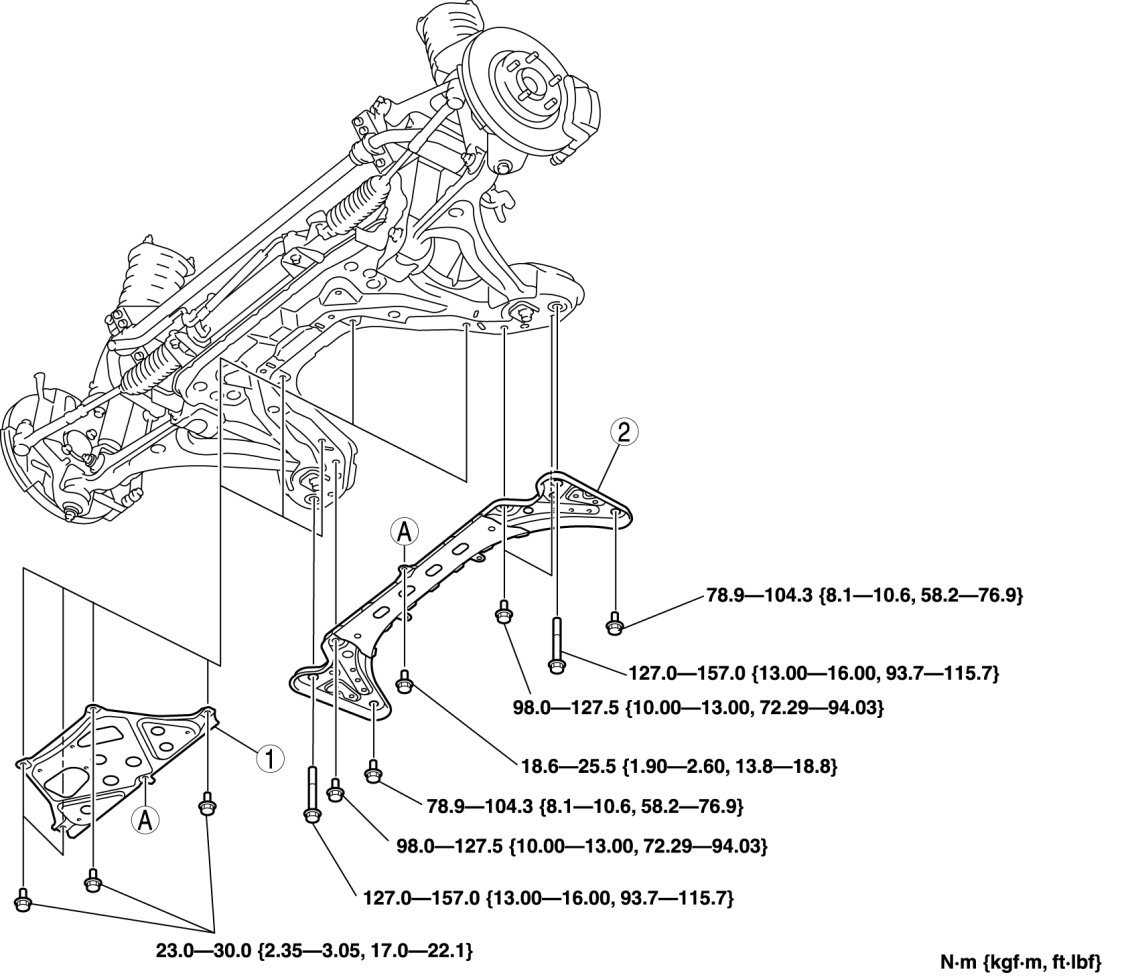

TRANSVERSE MEMBER REMOVAL/INSTALLATION

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.










Transverse Member Removal Note

1. Support the crossmember using a jack.

2. Remove the transverse member.

Under Cover Installation Note

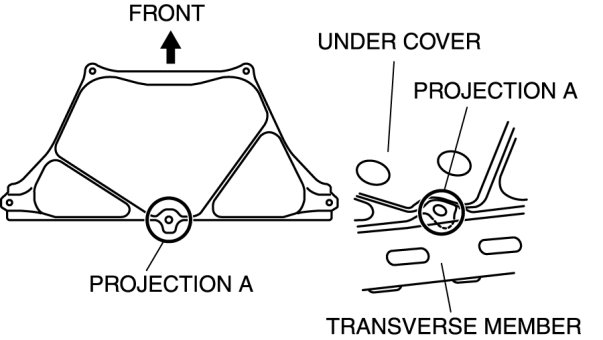

1. Align projection A with the transverse member opening to temporarily support the under cover.

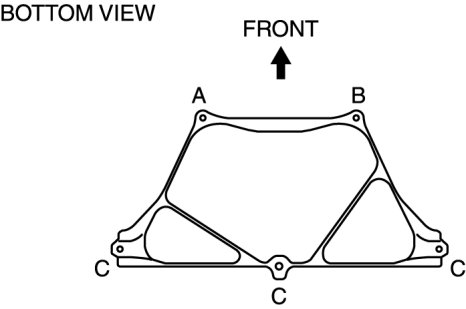

2. Tighten the bolts in the order of A, B and C.
