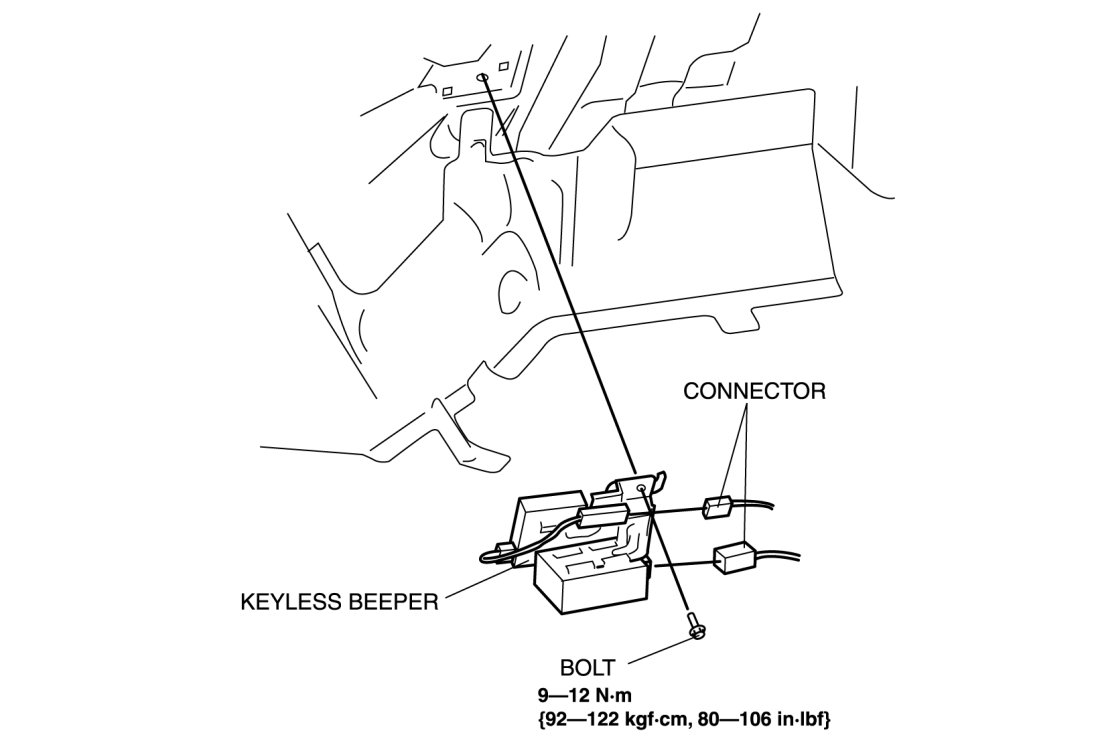

Keyless Beeper Removal/Installation




KEYLESS BEEPER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the trunk side trim.

3. Remove the bolt.

4. Disconnect the connector.

5. Remove the keyless beeper.






6. Install in the reverse order of removal.
