Engine Technical Data [LF]




ENGINE TECHNICAL DATA [LF]

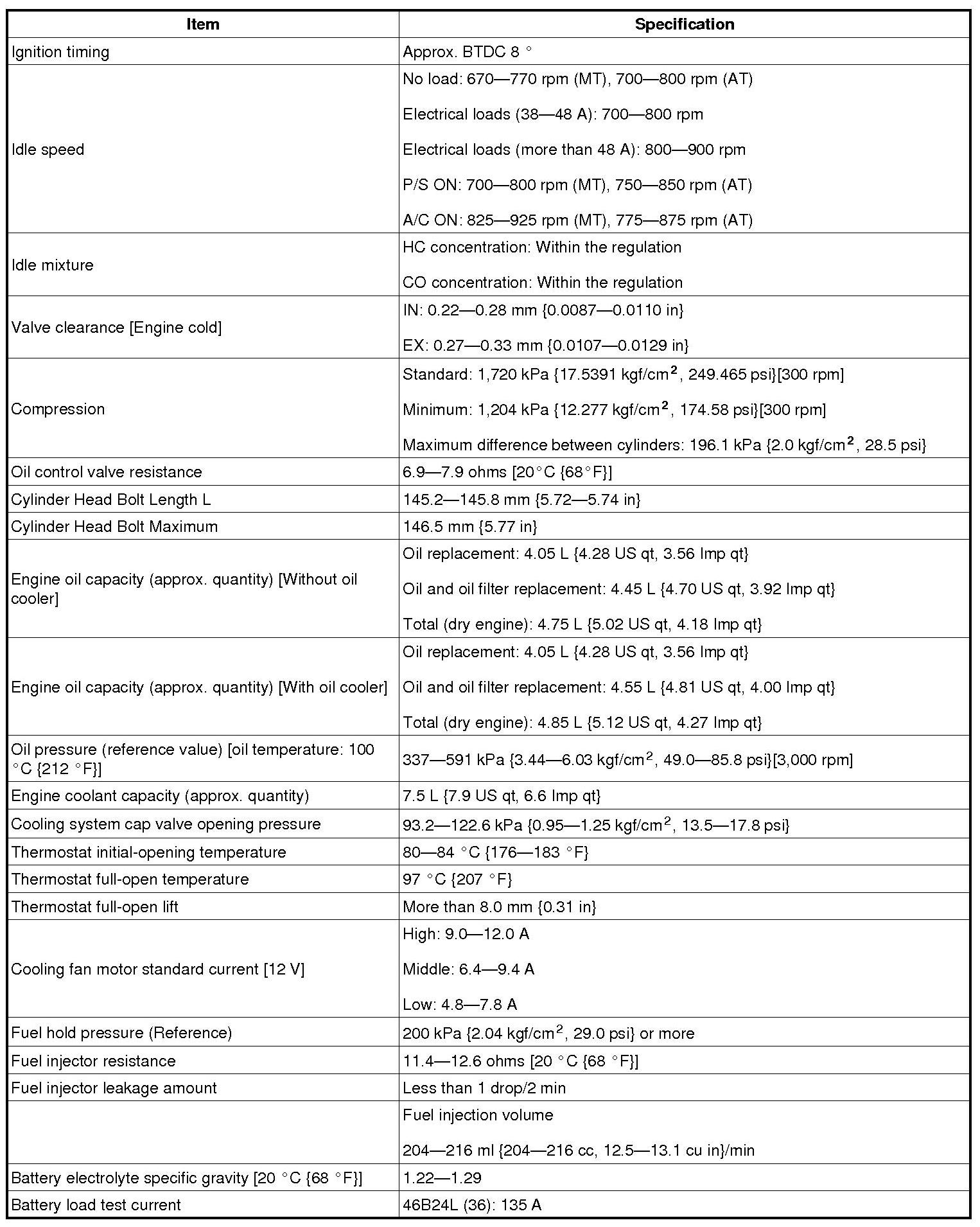

Part 1:

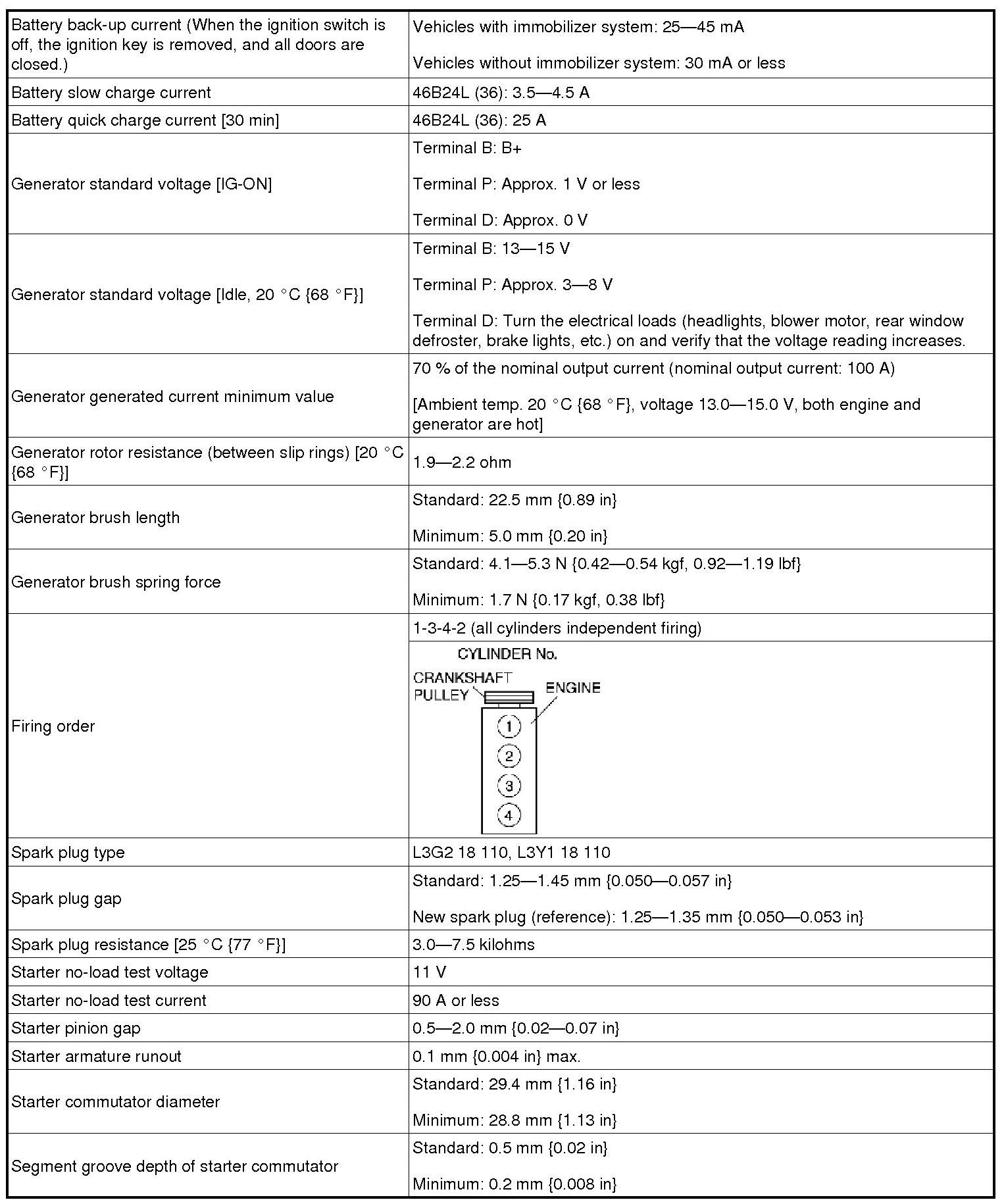

Part 2:

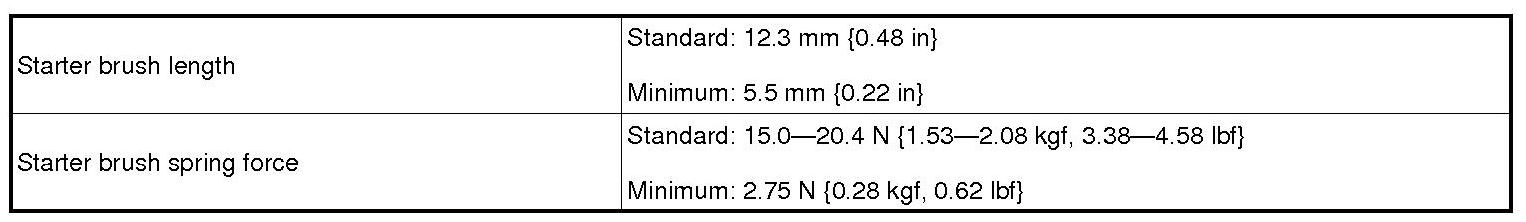

Part 3:

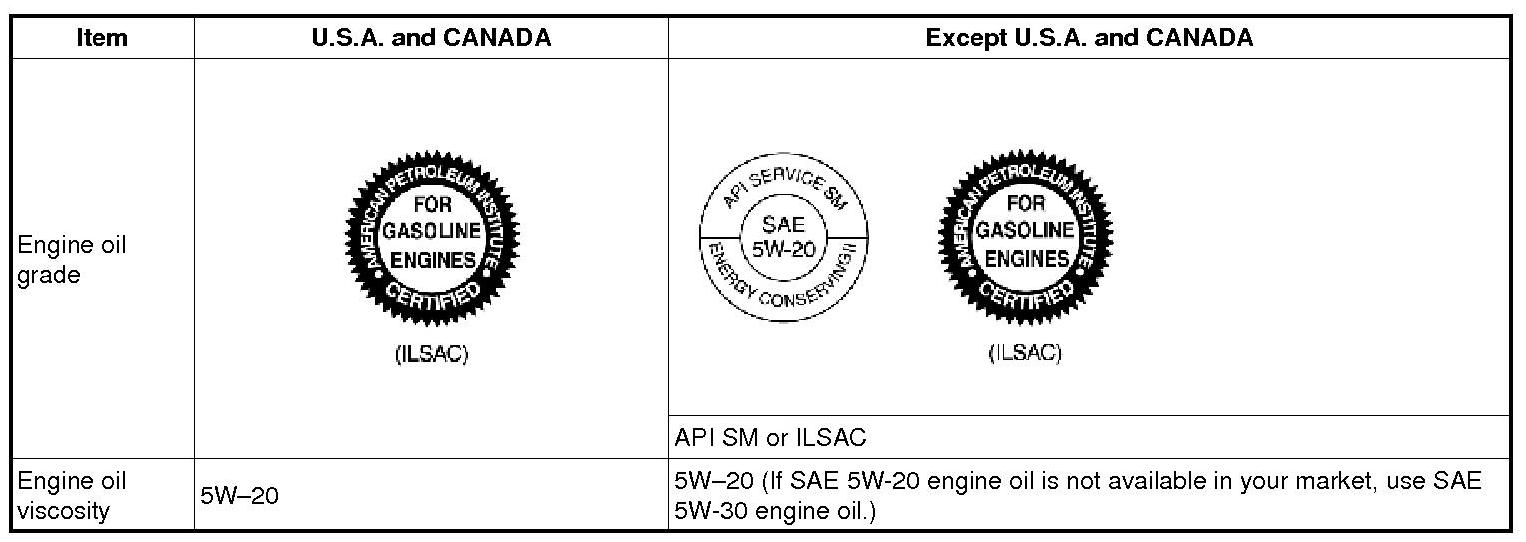

Engine oil specification
