Antenna - Keyless Entry: Service and Repair

COIL ANTENNA REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Hood release lever (See Service and Repair.)

b. Front scuff plate (Driver's side) Front Scuff Plate Removal/Installation

c. Front side trim (Driver's side) Front Side Trim Removal/Installation

d. Lower panel Lower Panel Removal/Installation

e. Column cover Service and Repair

f. Outer cylinder Service and Repair

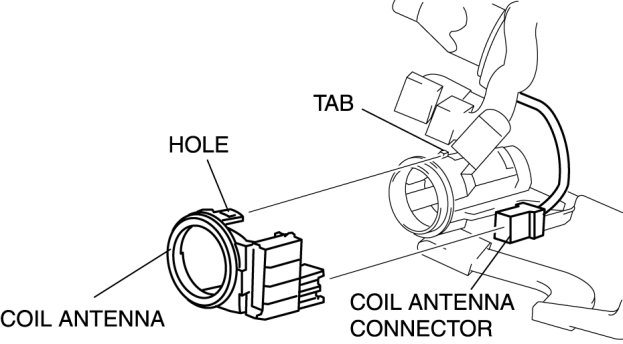

3. Disconnect the coil antenna connector.






4. Detach the steering lock tabs from the holes on the coil antenna.

5. Install in the reverse order of removal.
