Compressor Clutch: Service and Repair

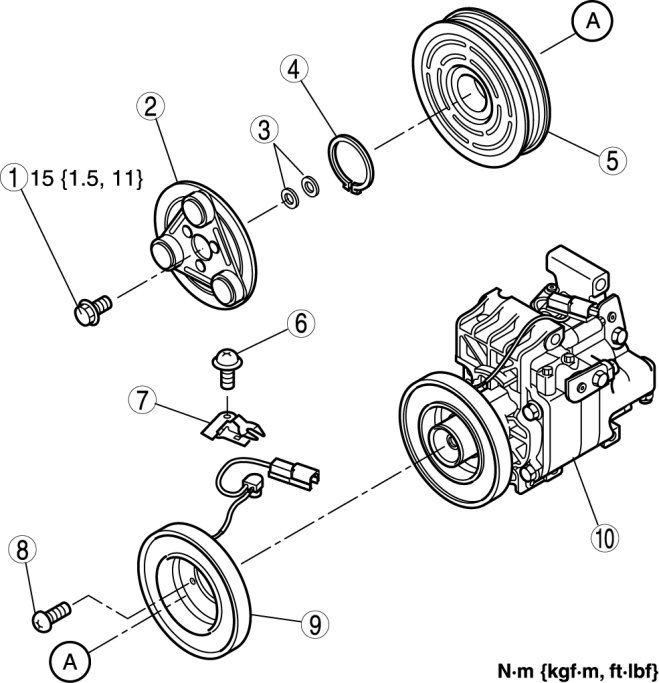

MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [L3 WITH TC]

1. Disassemble in the order indicated in the table.










2. Assemble in the reverse order of disassembly.

3. Adjust the magnetic clutch clearance. Adjustments

Bolt Removal/Installation Note

NOTE:
- If there are only 2 prepackaged bolts available when replacing the compression with a repair part, select bolts from the replaced unit of the same length as the prepackaged bolts.

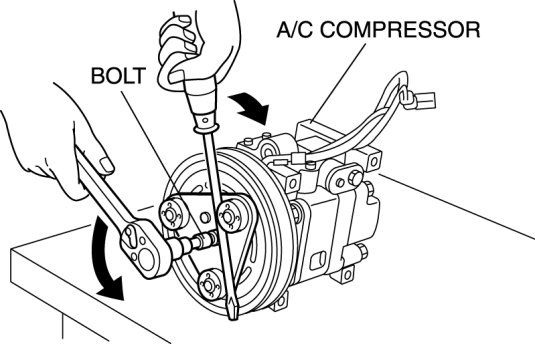

1. When removing or installing the bolt, hold the pressure plate in place as shown in the figure.






2. When installing a new A/C compressor body, replace the bolt.
