Manifold Pressure/Vacuum Sensor: Service and Repair

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION [L3 WITH TC]

1. Remove the battery cover.

2. Disconnect the negative battery cable.

3. Remove the oil level gauge pipe. (See Service and Repair.)

4. Disconnect the MAP/boost air temperature sensor connector.

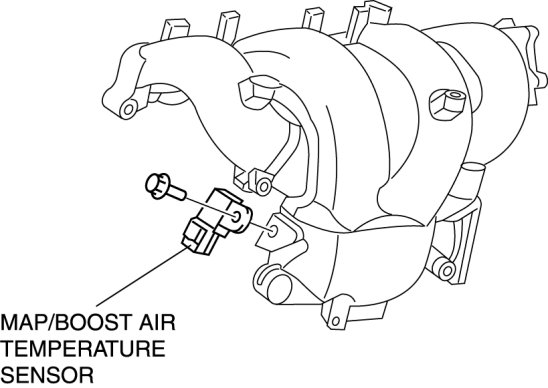

5. Remove MAP/boost air temperature sensor from the intake manifold.






6. Install in the reverse order of removal.

Tightening torque
- 5.0-7.0 Nm {51-71 kgf-cm, 45-61 in-lbf}
