Audiopilot Microphone

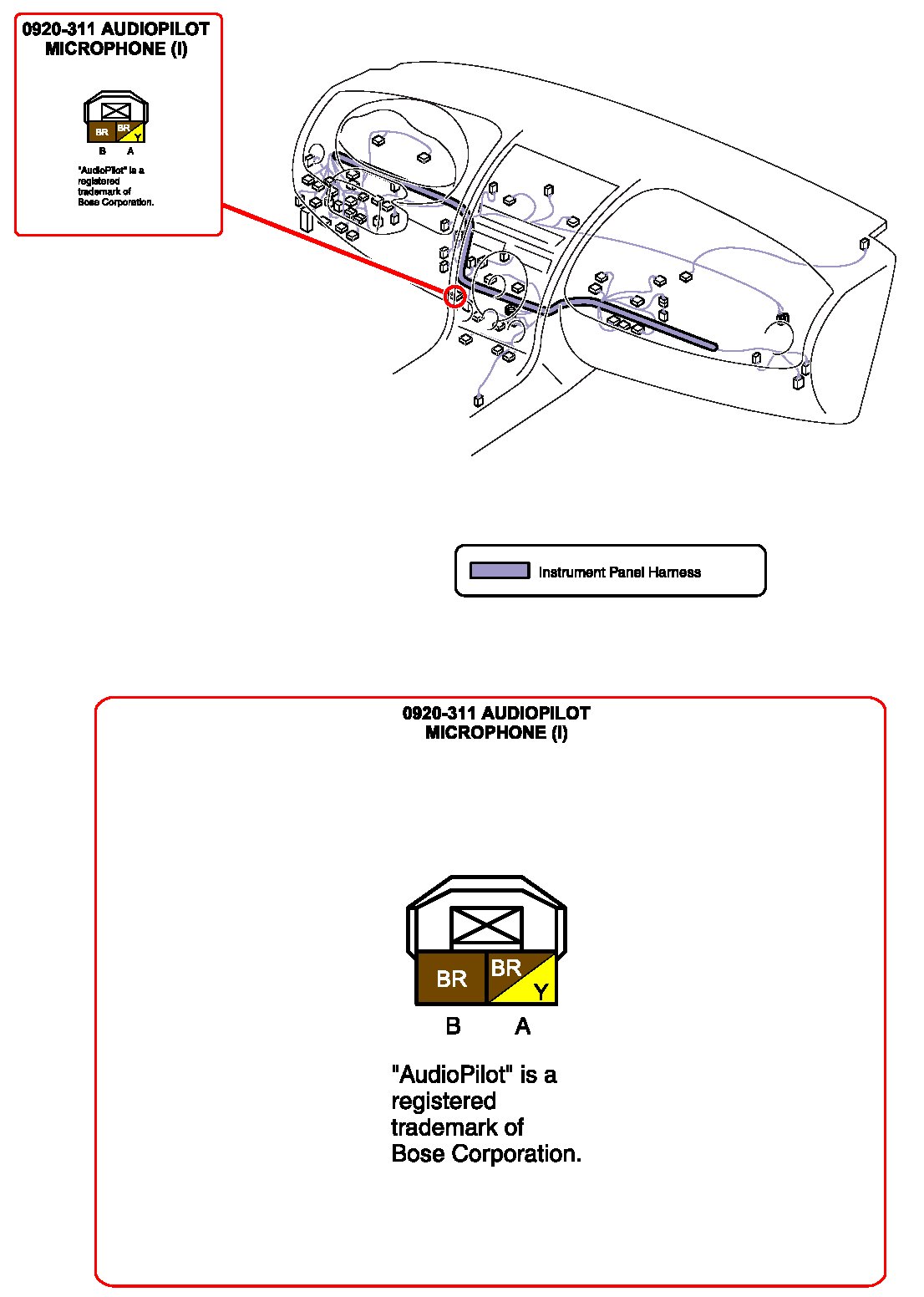

Audiopilot Microphone (With Bose):

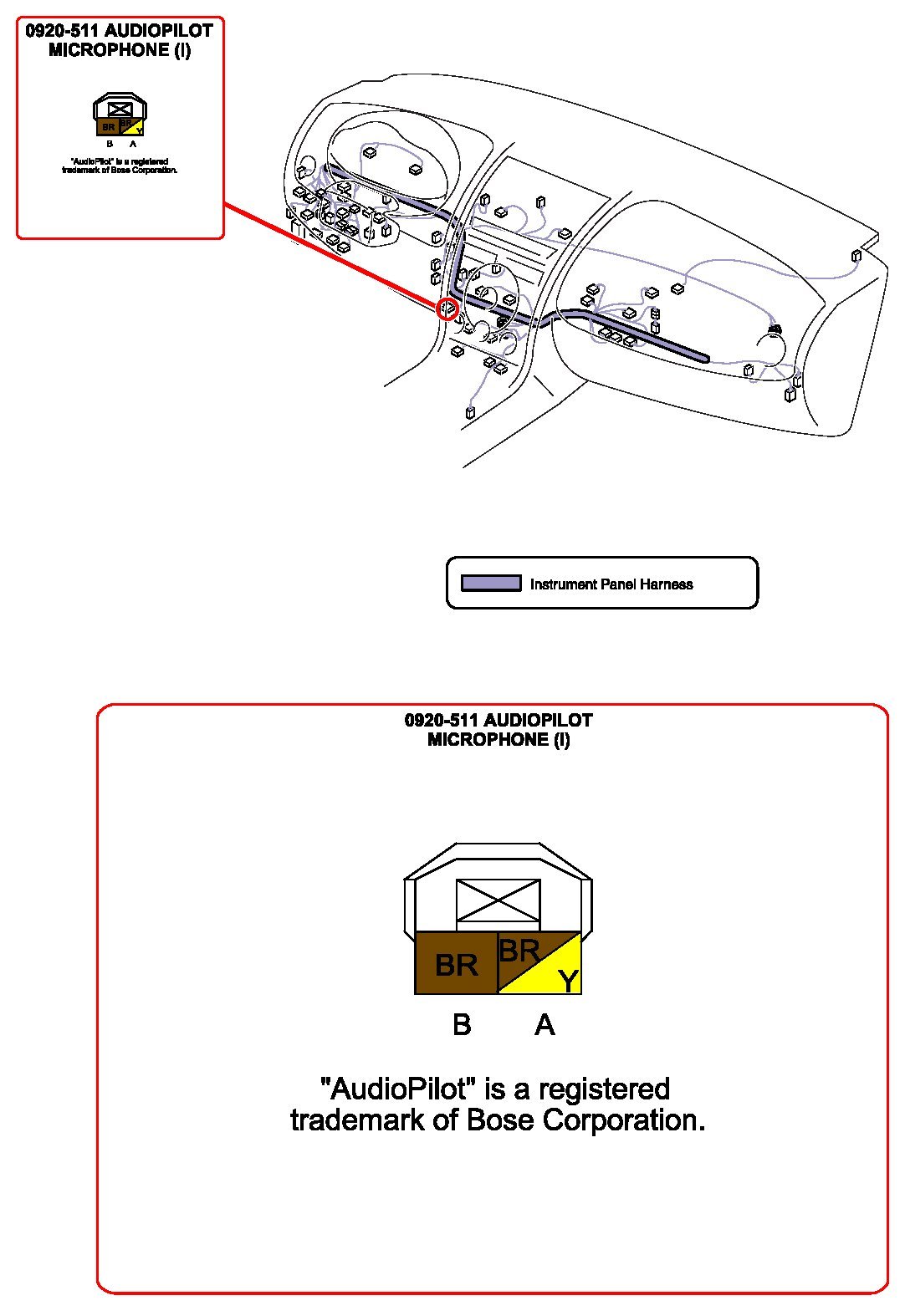

Audiopilot Microphone (Car-Navigation System):
