Heating and Air Conditioning: Specifications




SPECIFICATIONS

Material Specifications - Hybrid





General Specifications - Hybrid

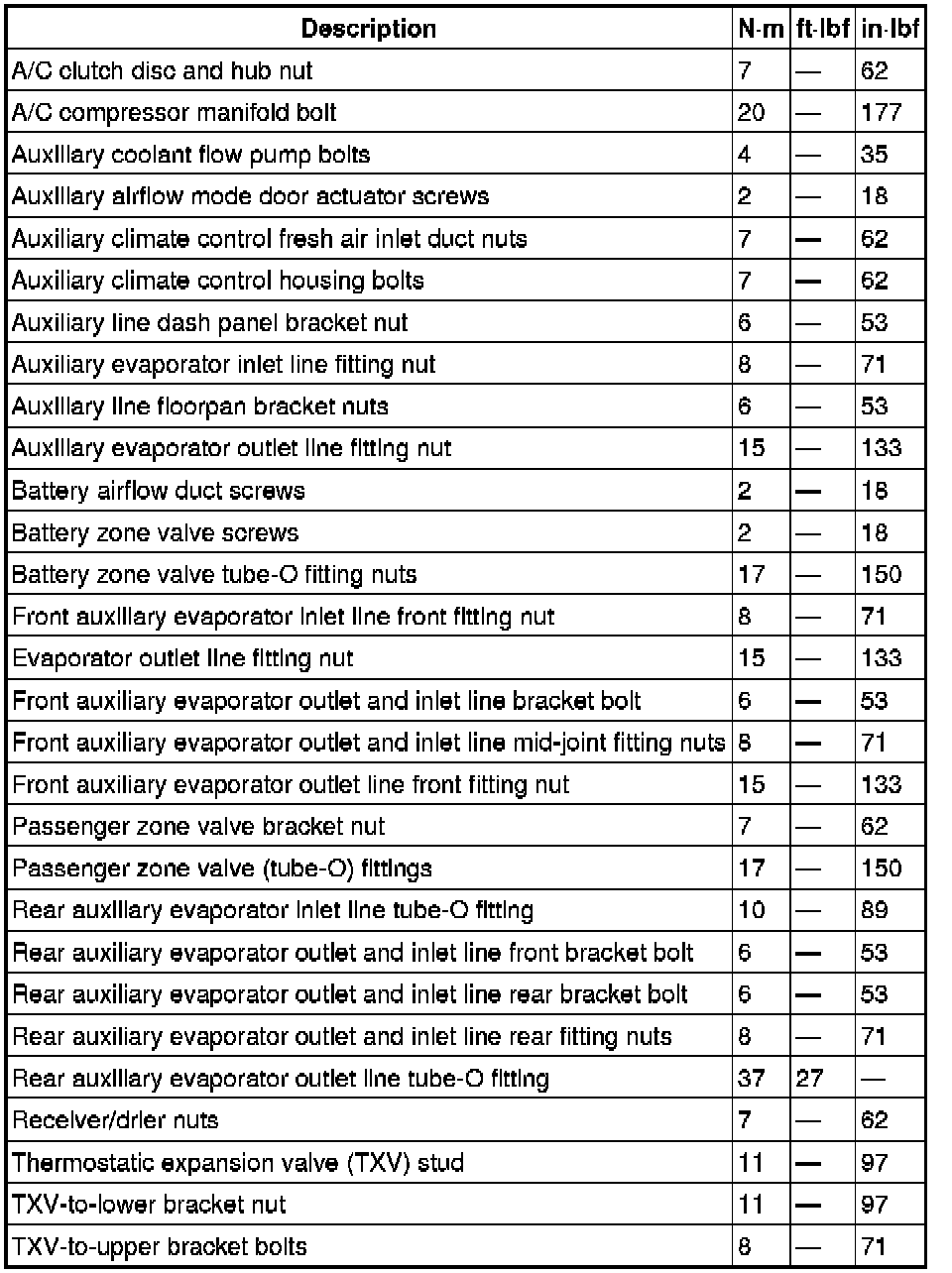

Torque Specifications - Hybrid
