Grille: Service and Repair

RADIATOR GRILLE REMOVAL/INSTALLATION

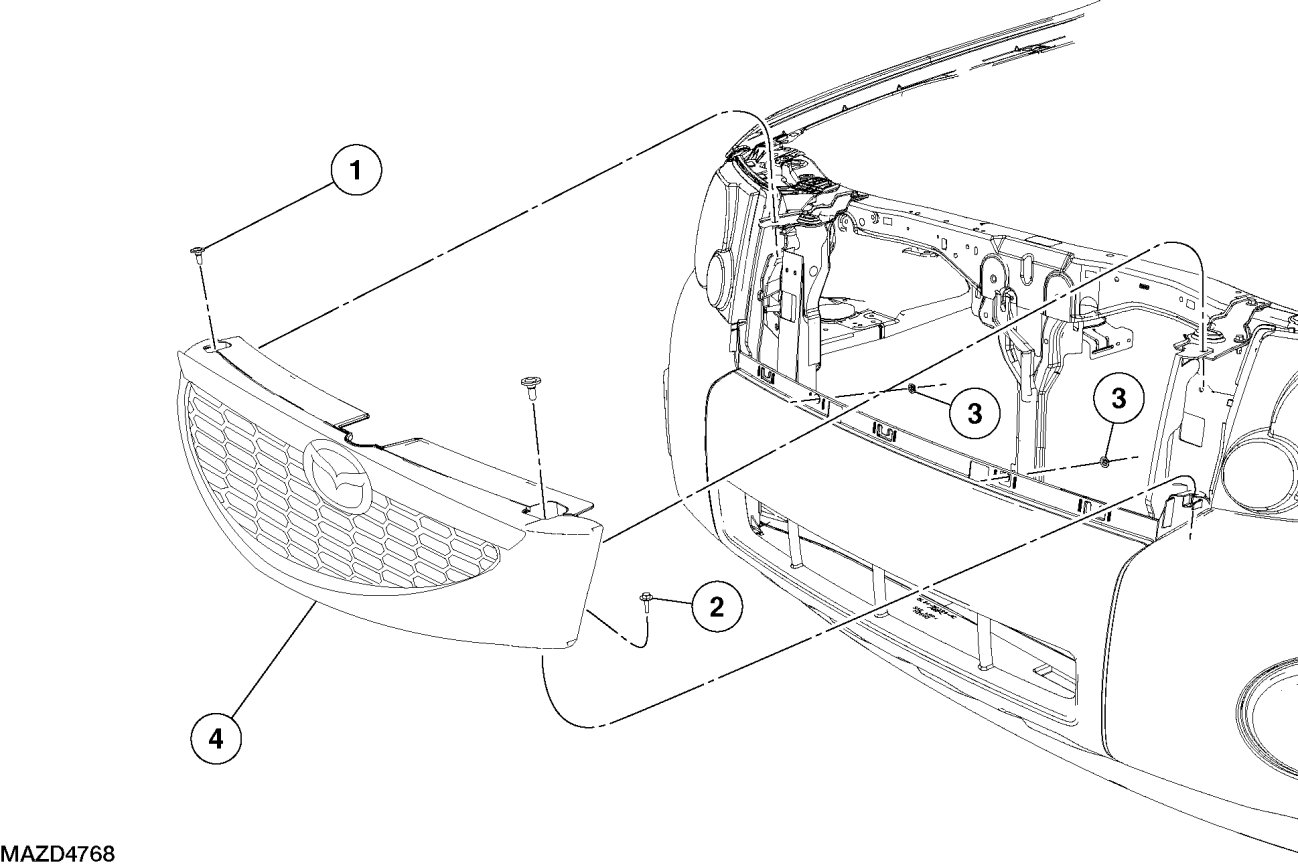

1. Remove the front bumper cover. See Service and Repair.

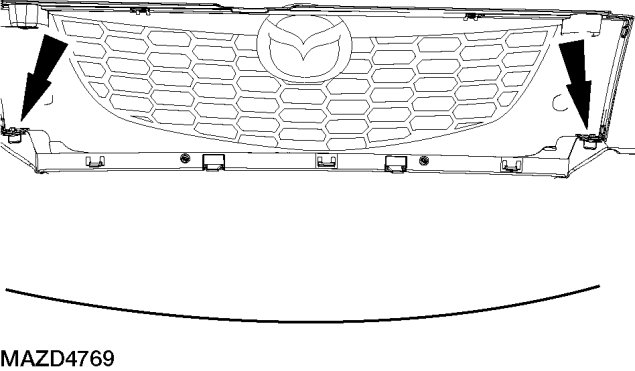

2. Remove the 2 radiator grille-to-fascia screws.

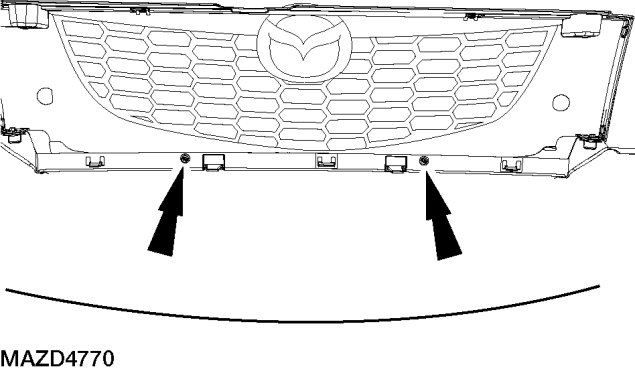

3. Remove the 2 radiator grille pinch nuts.

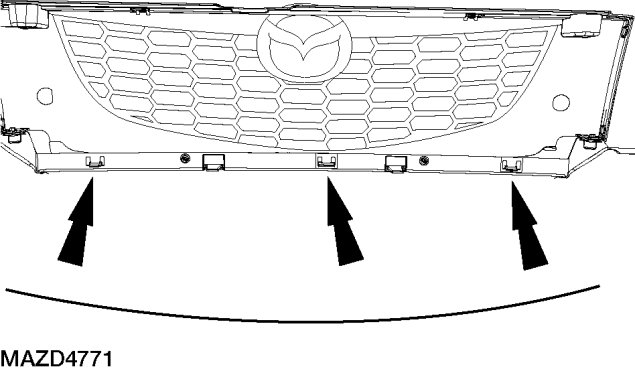

4. Release the 3 radiator grille retaining clips and remove the radiator grille from the fascia.

5. To install, reverse the removal procedure.
