Engine Block Heater: Service and Repair

-
BLOCK HEATER REMOVAL/INSTALLATION - 2.5L










1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.

2. Drain the cooling system. See - Removal and Replacement.

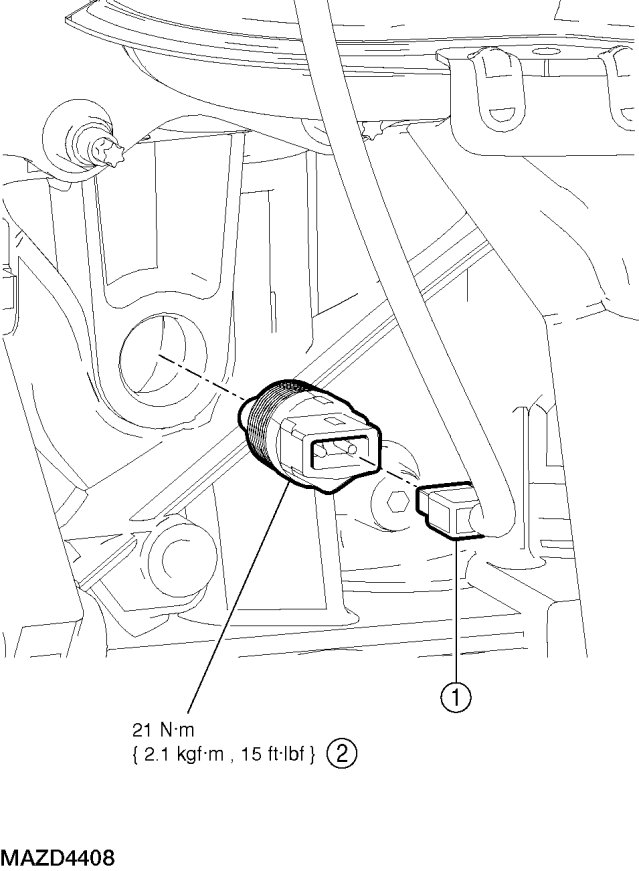

3. Disconnect the block heater electrical connector.

CAUTION:Make sure that the block heater wiring is routed and secured away from rotating or hot components or damage to the wiring may occur.
4. Remove the block heater.

- To install, tighten to 21 Nm {2.1 kgf-m, 15 ft-lbf}.

5. To install, reverse the removal procedure.

6. Fill and bleed the cooling system. For additional information, see - Removal and Replacement.
