Test 5: Positive Crankcase Ventilation (PCV) System




TEST 5: POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM

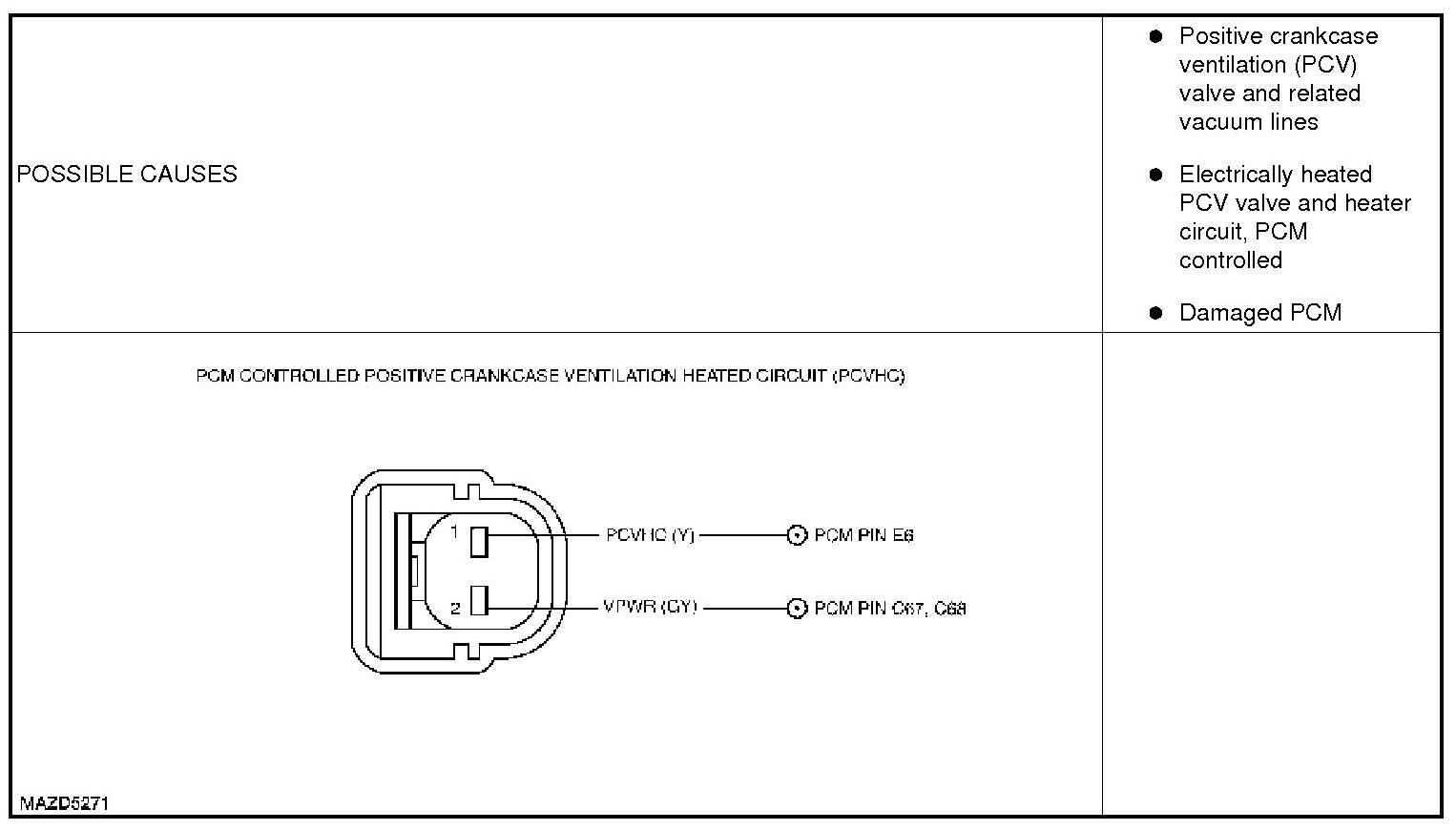

Possible Causes:

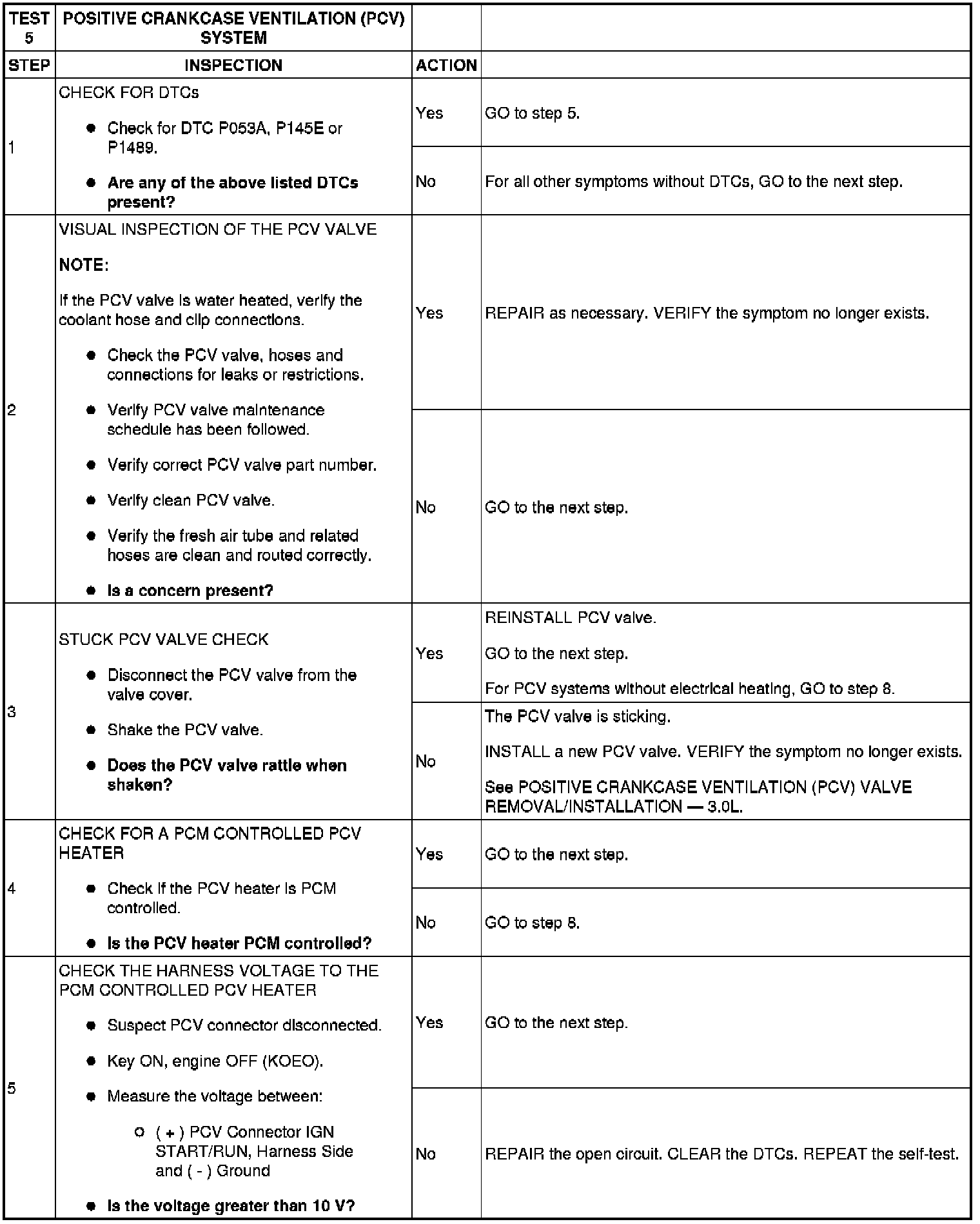

Step 1-Step 5:

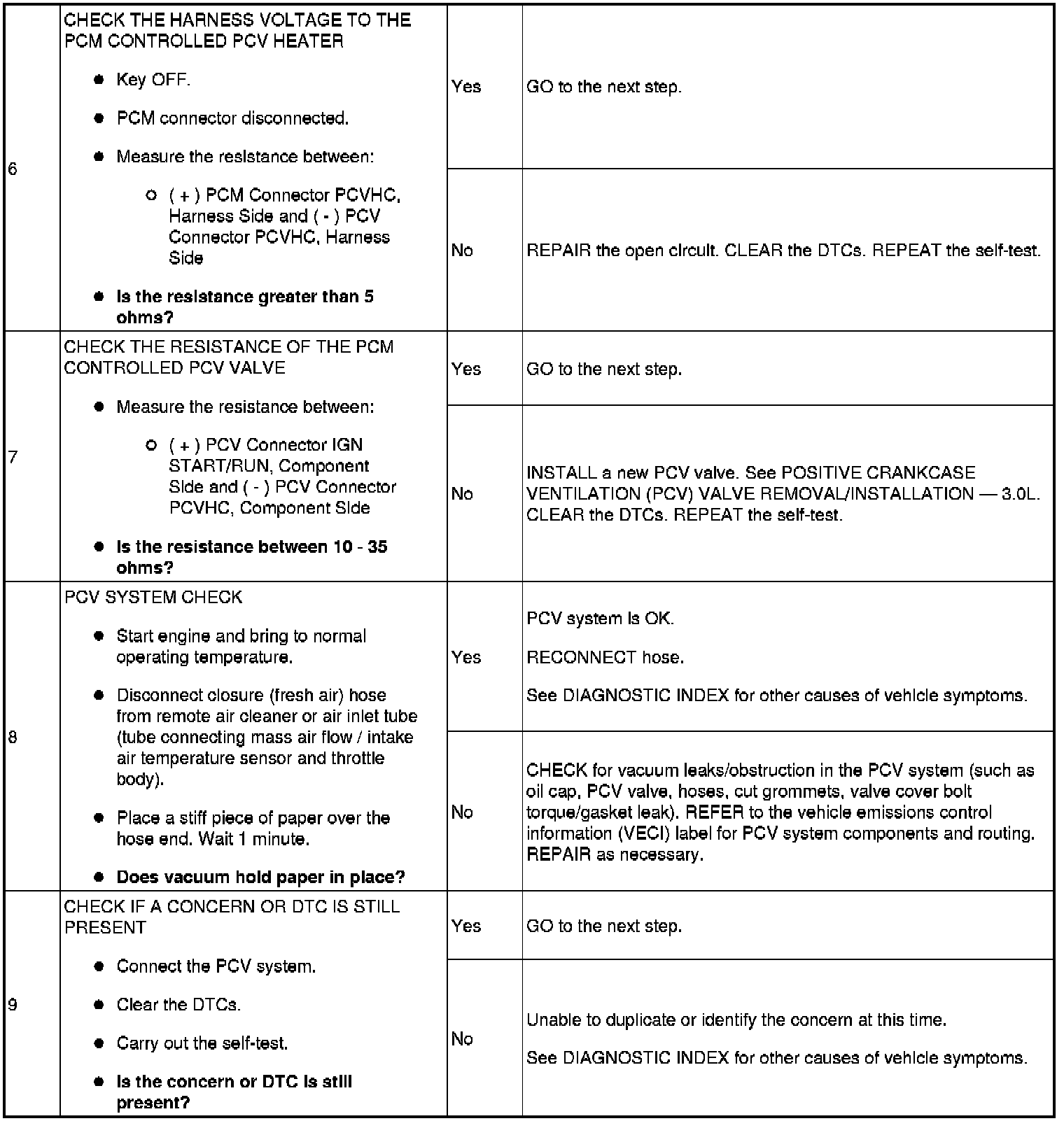

Step 6-Step 9:





Step 10:
