Symptom Related Diagnostic Procedures



-
SYMPTOM TROUBLESHOOTING CHART - POWER SYSTEMS

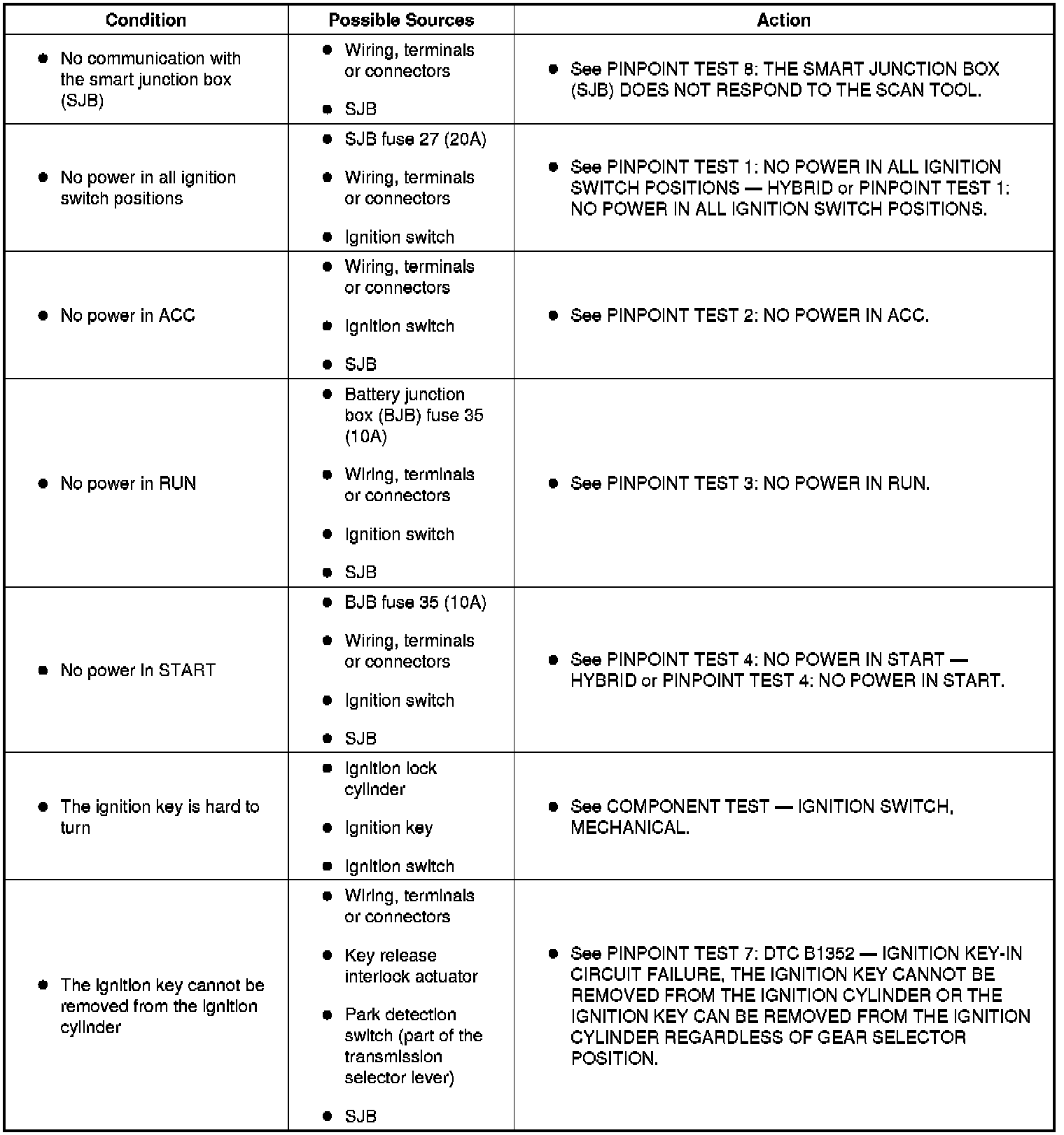

Symptom Troubleshooting Chart (Part 1):





Symptom Troubleshooting Chart (Part 2):
