Windshield Washer Switch: Testing and Inspection

WINDSHIELD WIPER/WASHER SWITCH INSPECTION

Wiper and Washer System - Exploded View, Rear










1. Remove the windshield wiper/washer switch.

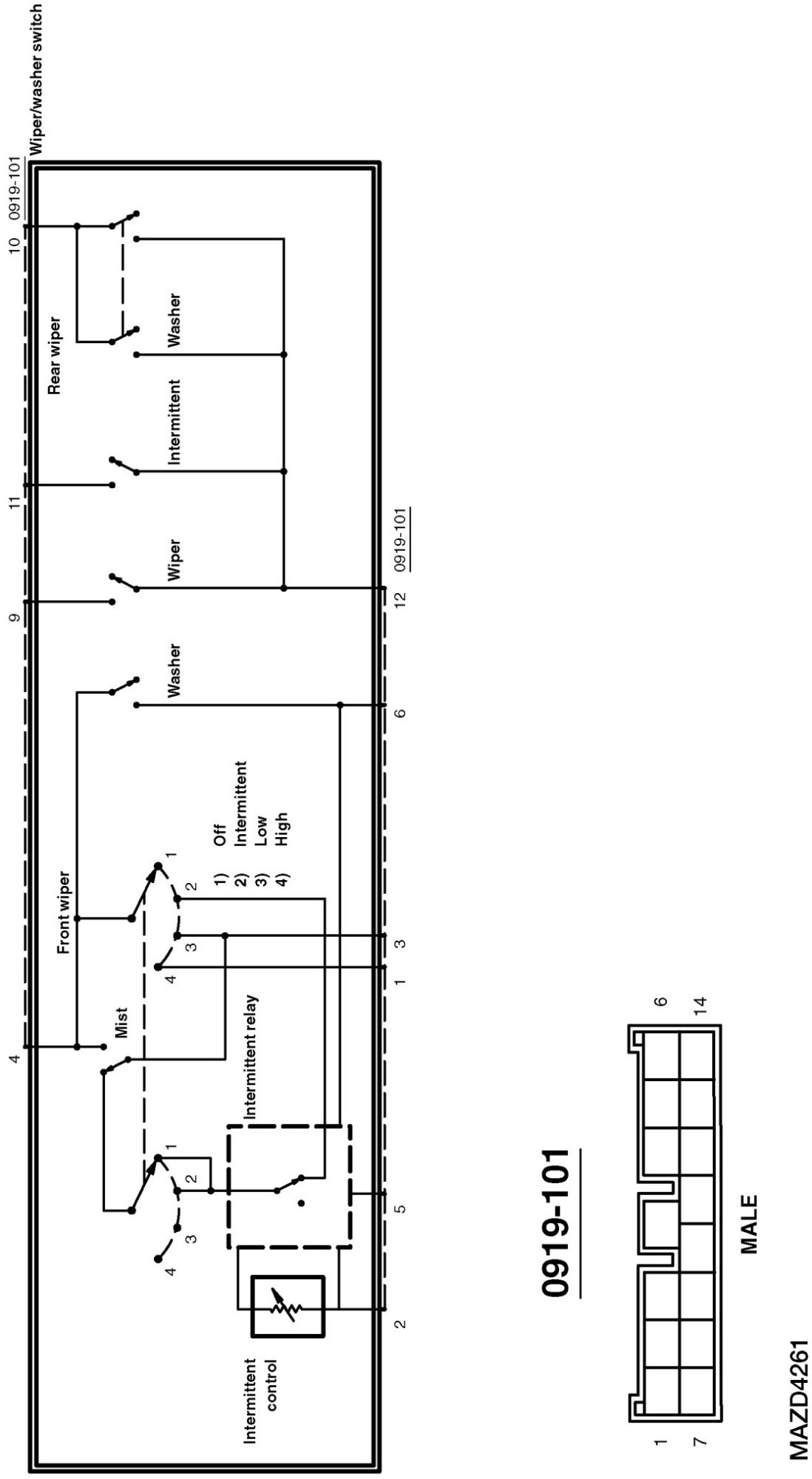

2. Inspect for continuity between the windshield wiper/washer switch terminals using an ohmmeter.





Inspection





3. If not as specified, install a new windshield wiper/washer switch.
