Brake Switch (Cruise Control): Service and Repair

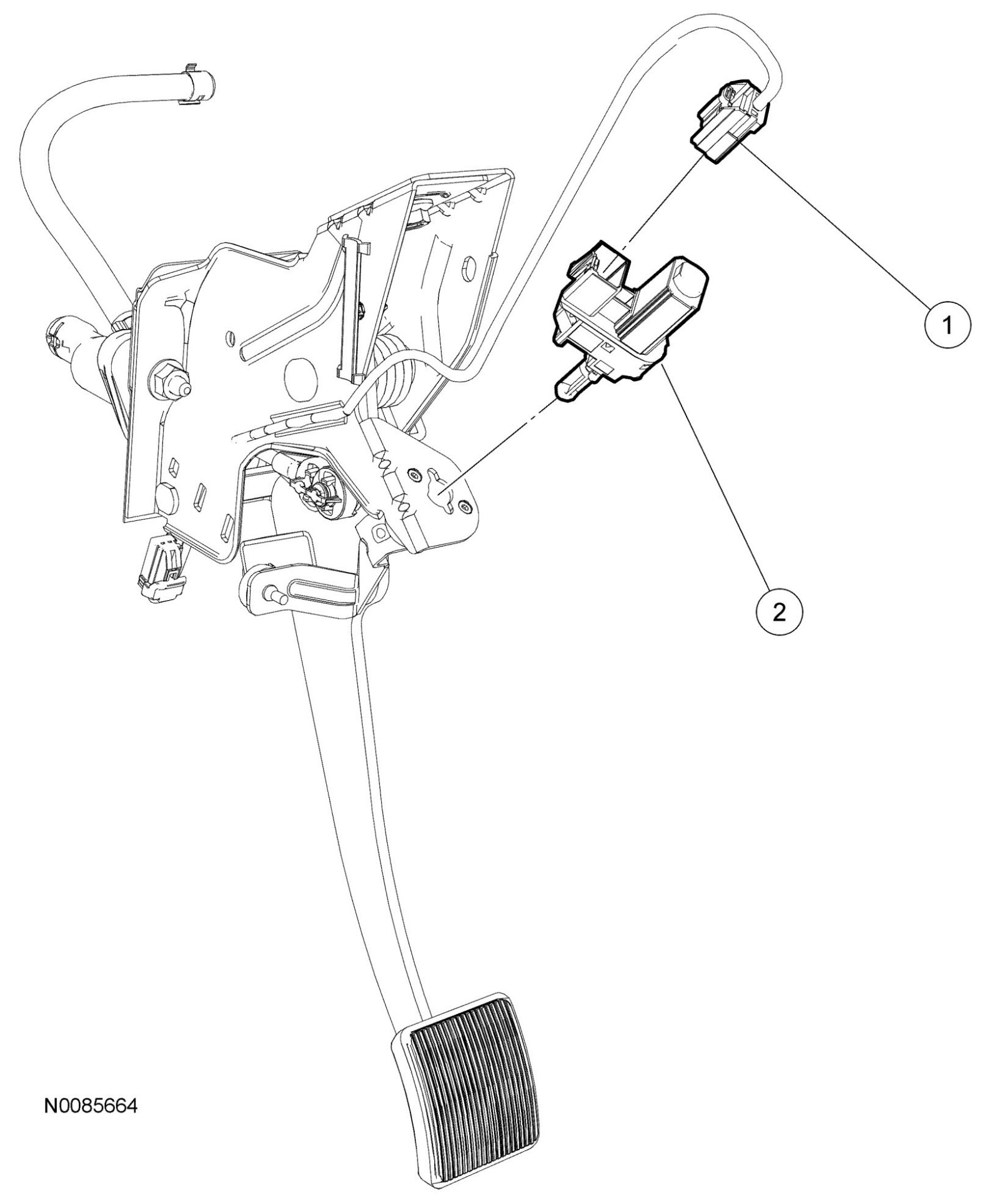

SPEED CONTROL DEACTIVATOR SWITCH REMOVAL/INSTALLATION










1. Disconnect the electrical connector.

2. Rotate the speed control deactivator switch counterclockwise one-quarter turn from the bracket.

3. To install, reverse the removal procedure.

NOTE:When installing the speed control deactivator switch, it is automatically self-adjusting to the correct position. Do not pull up or push down on the pedal during installation. Make sure that the speed control deactivator switch is correctly seated in the brake pedal bracket.
