Map Light: Service and Repair

INTERIOR/MAP READING LAMP REMOVAL/INSTALLATION

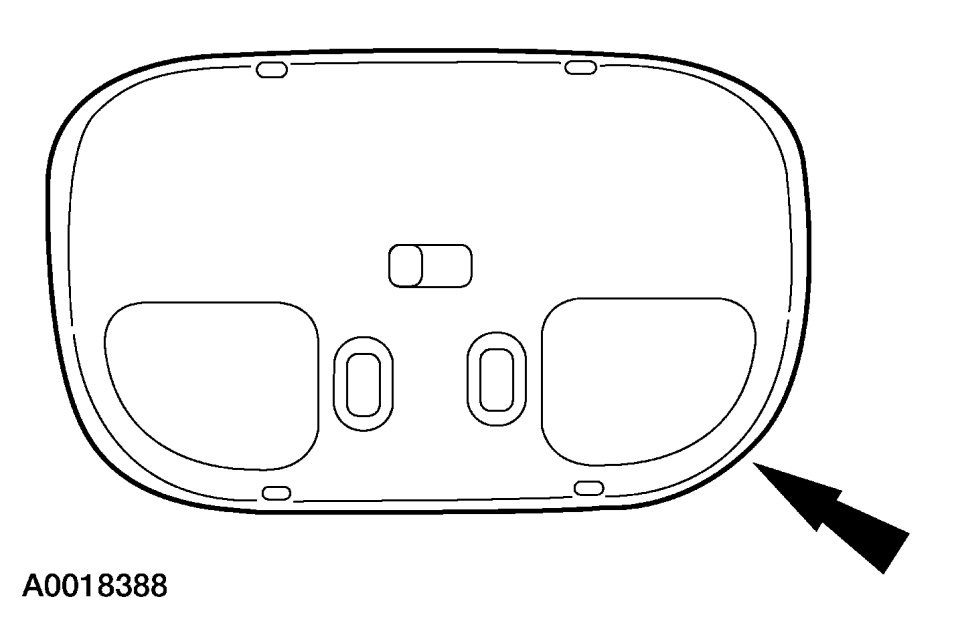

1. Remove the interior/map reading lamp lens.

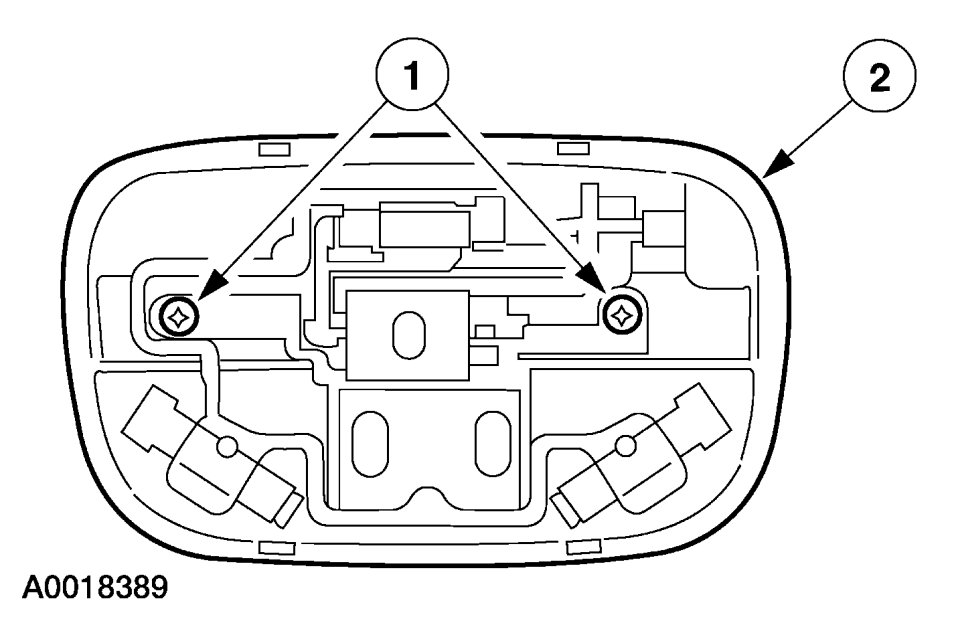

2. Remove the interior/map reading lamp assembly.
a. Remove the screws.

b. Remove the interior/map reading lamp and disconnect the electrical connector.

3. To install, reverse the removal procedure.
