Tribute 4WD L4-2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Application and ID
>>
J-2280f Smart Junction Box
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

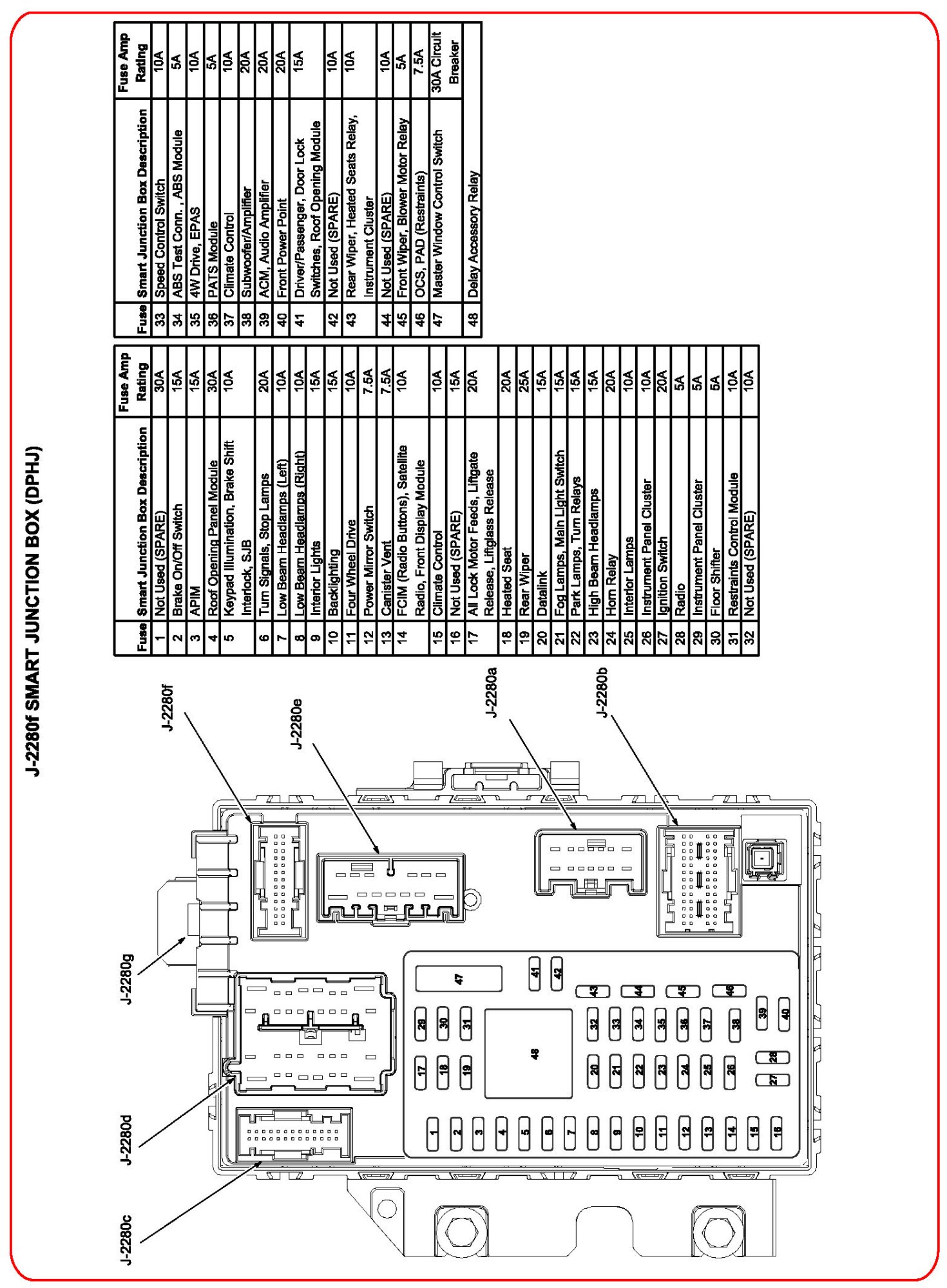

J-2280f Smart Junction Box
J-2280f Smart Junction Box:
