Clutch Switch: Testing and Inspection




CLUTCH PEDAL POSITION (CPP) SWITCH MALFUNCTION

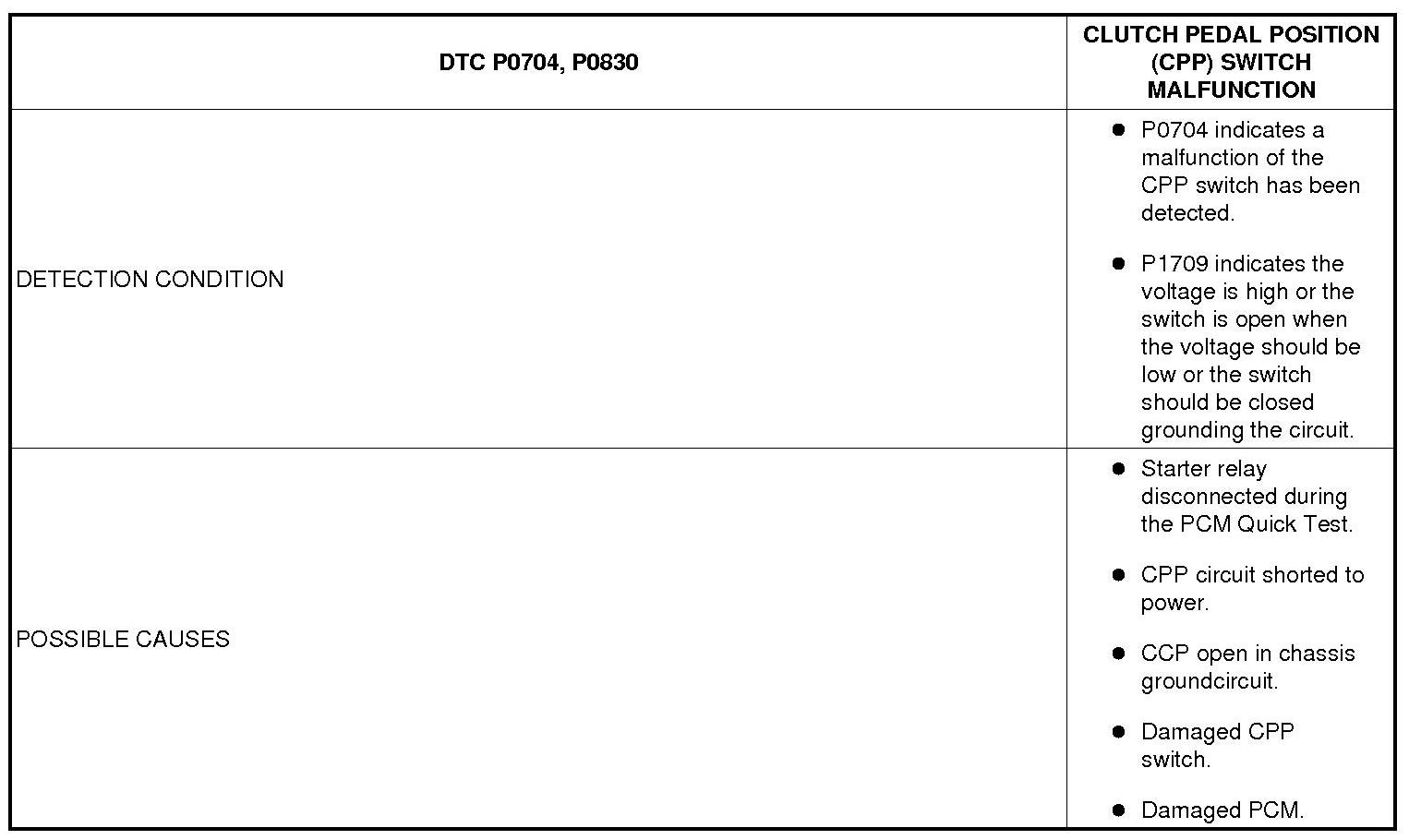

Detection Condition/Possible Causes (Part 1):





Detection Condition/Possible Causes (Part 2):

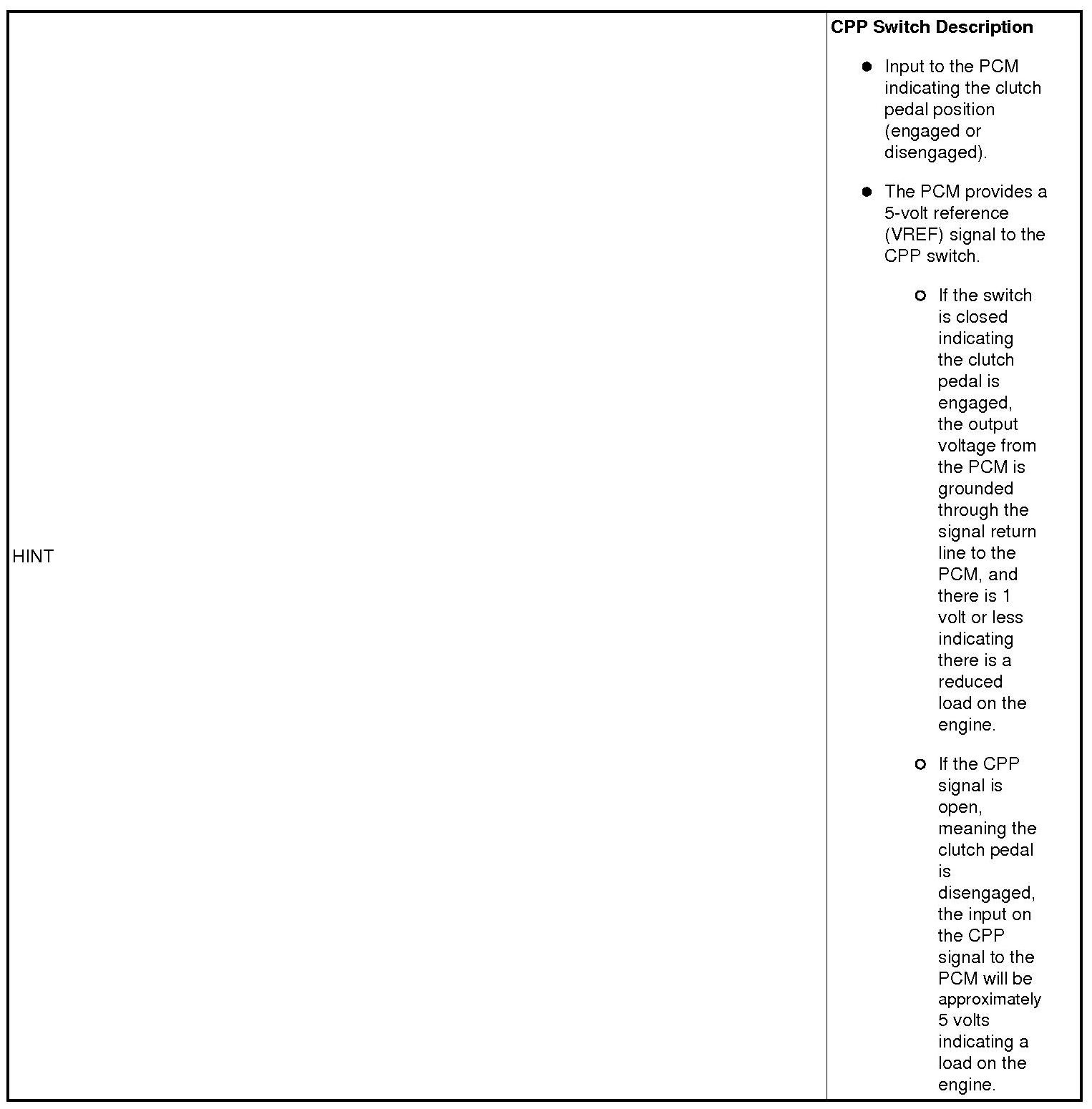

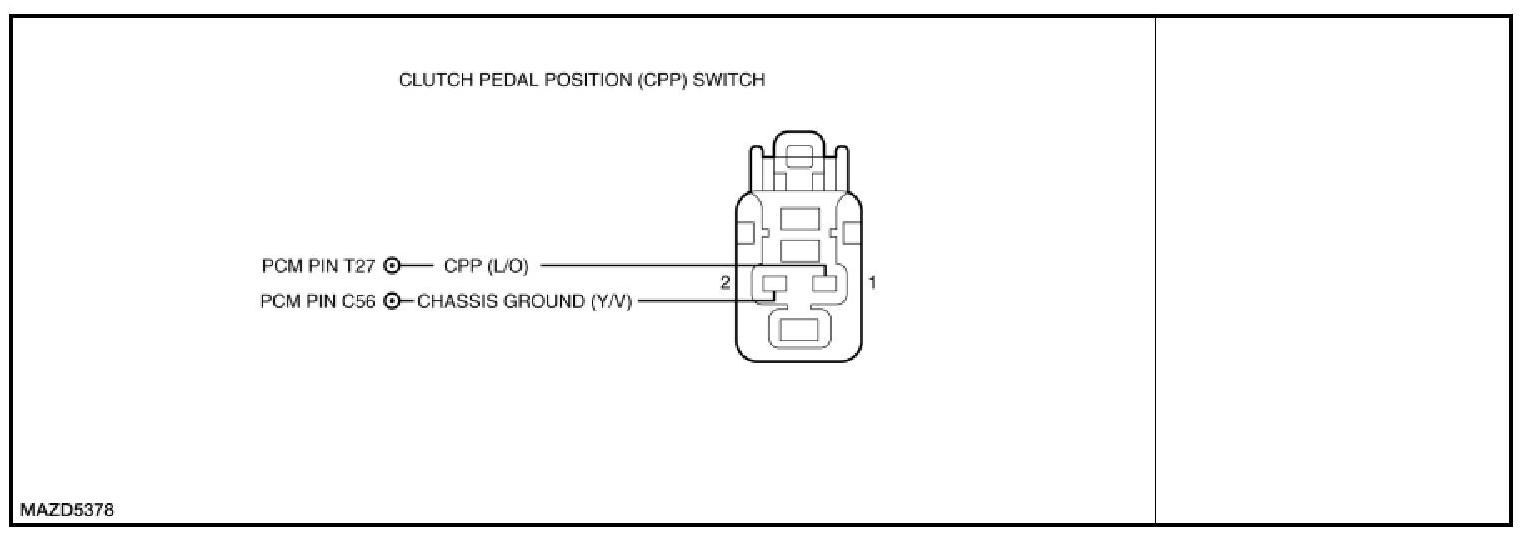

Detection Condition/Possible Causes (Part 3):

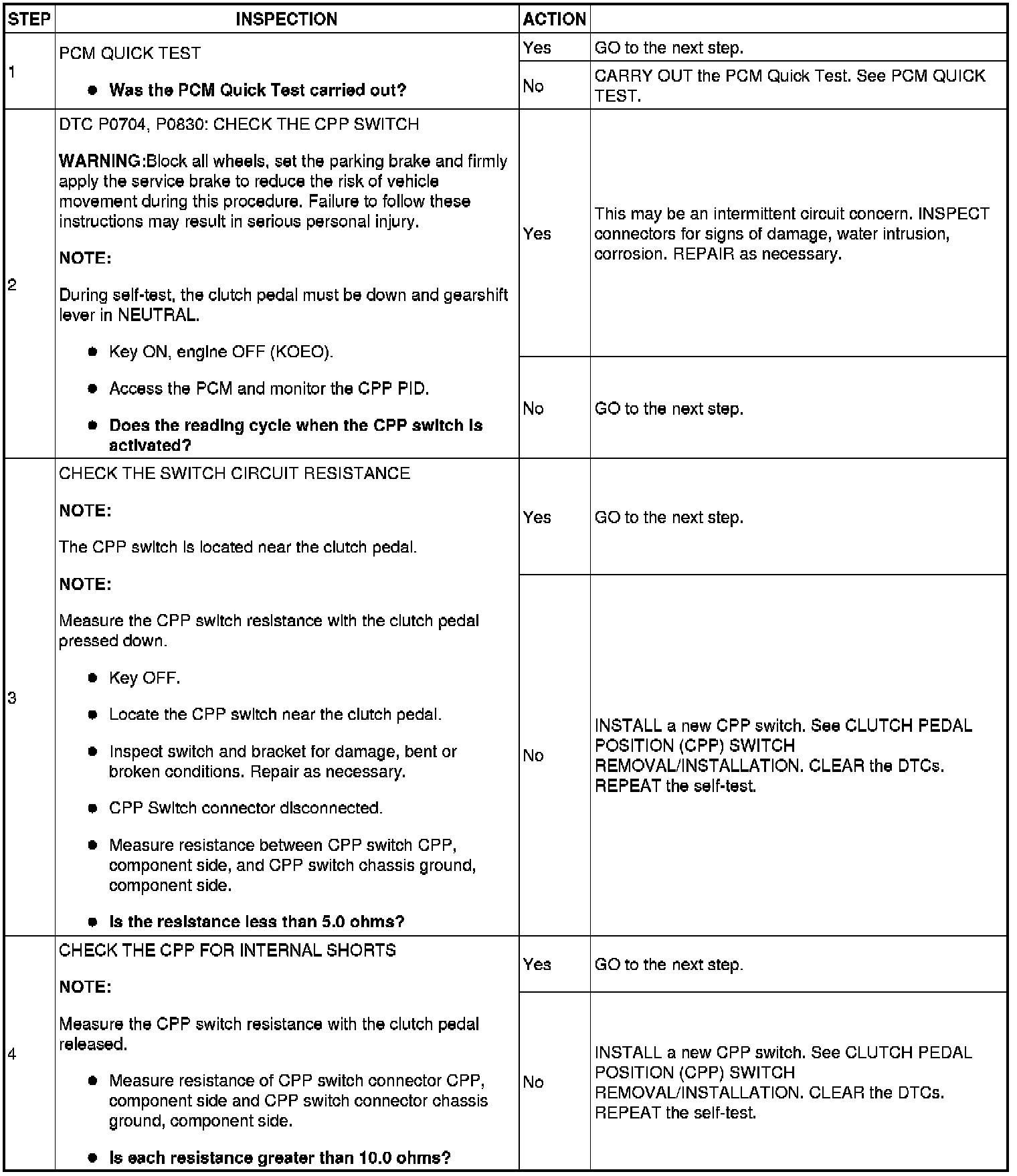

Step 1-Step 4:

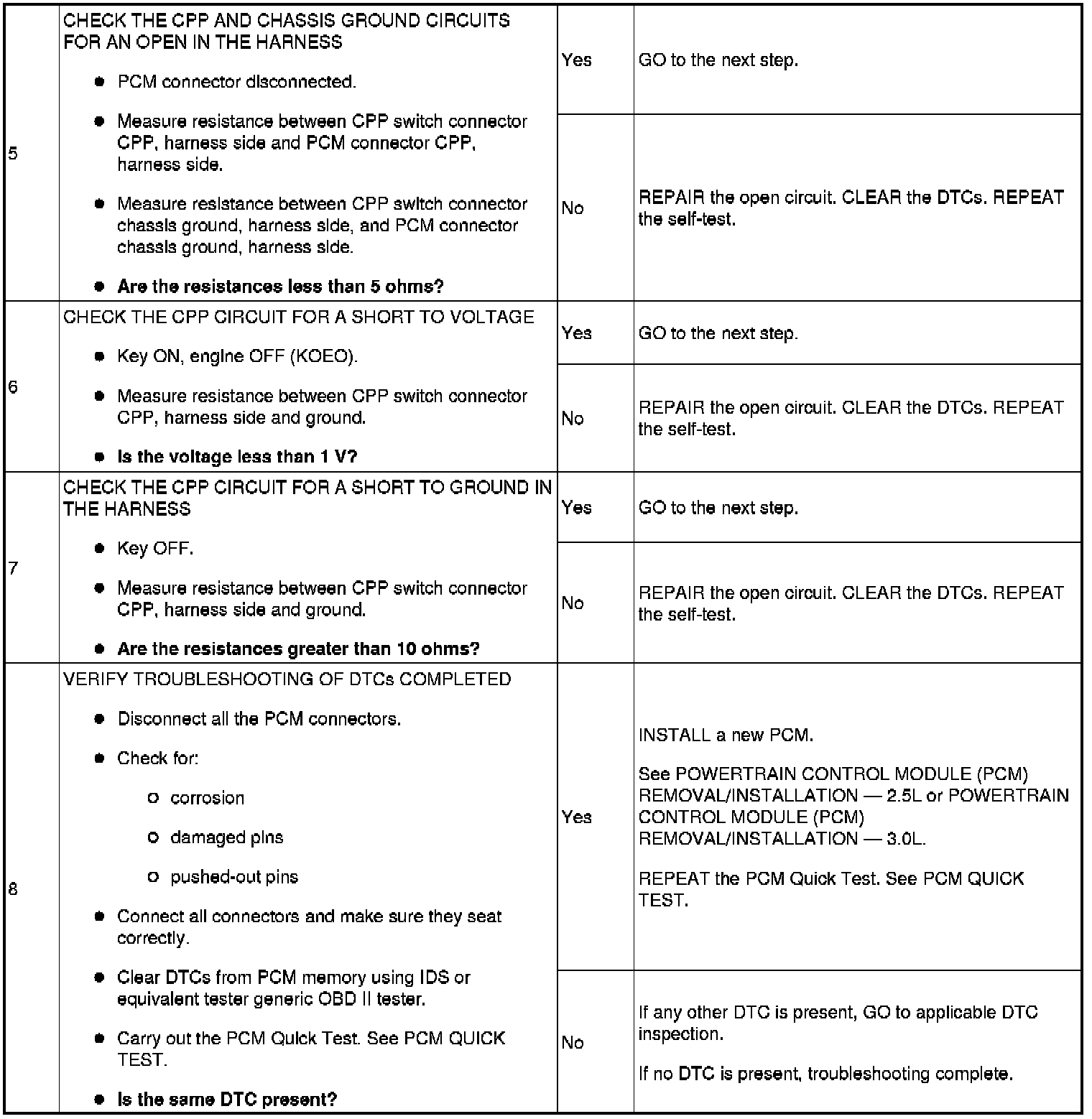

Step 5-Step 8:
