Manifold Pressure/Vacuum Sensor: Testing and Inspection

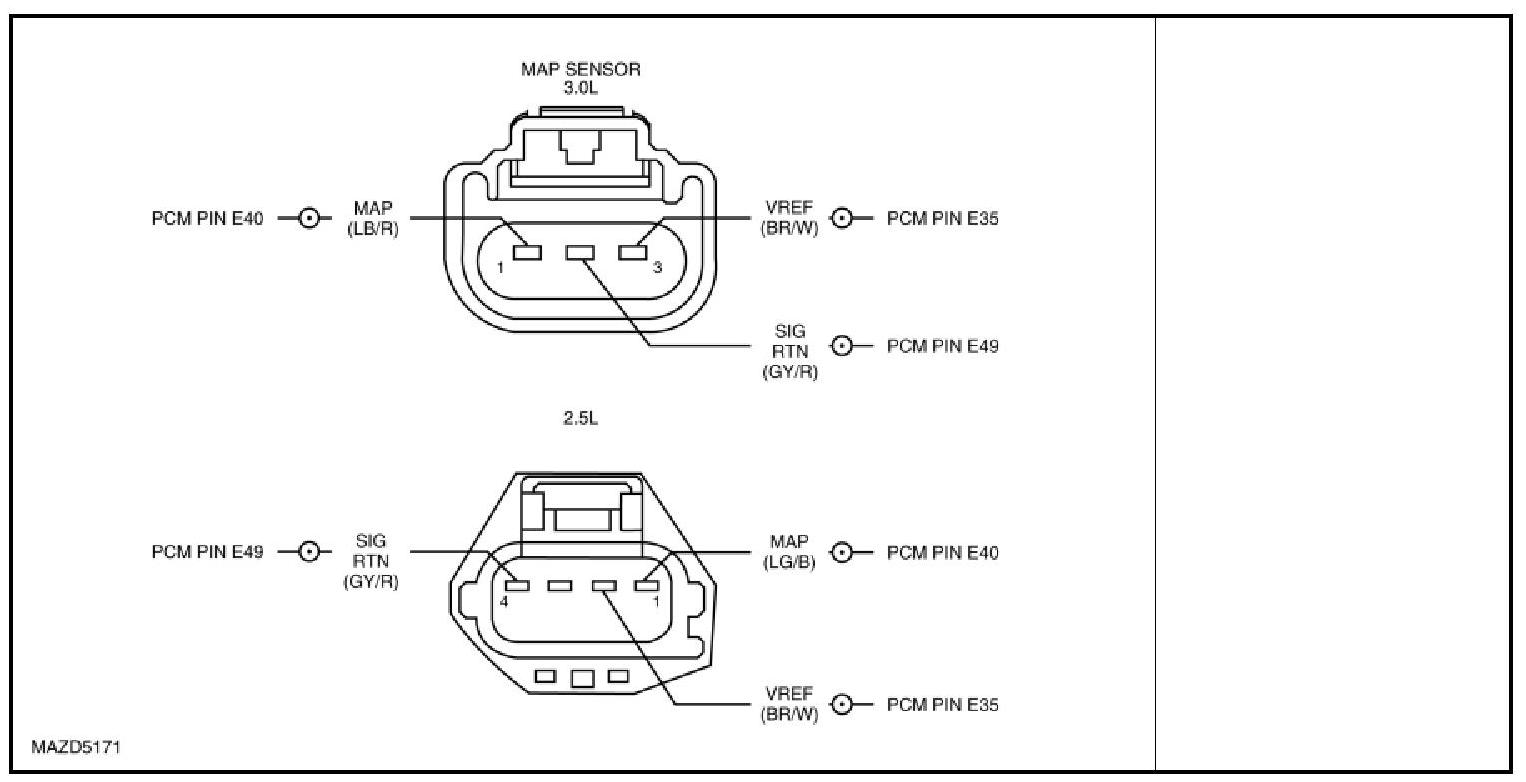

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

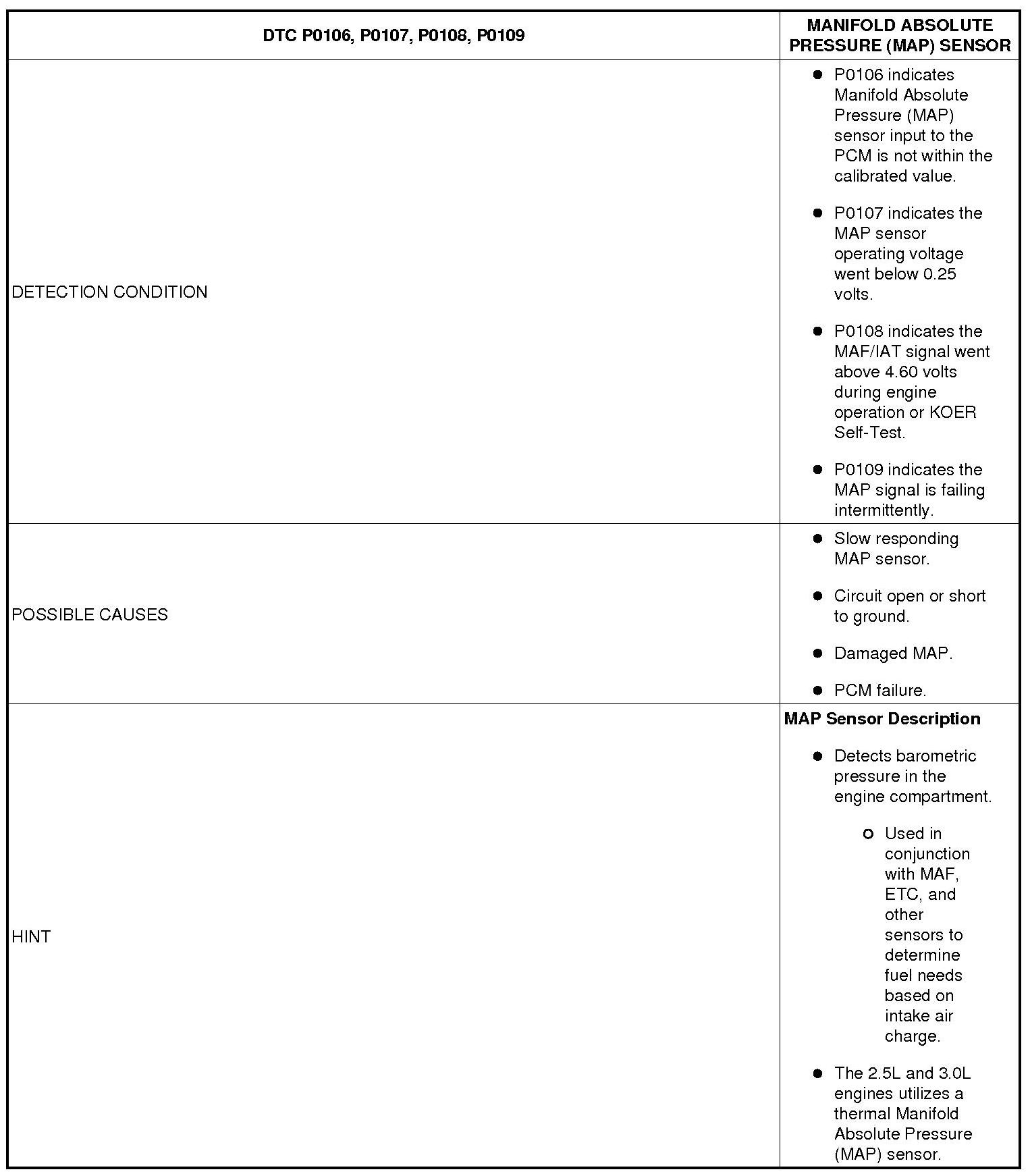

Detection Condition/Possible Causes (Part 1):





Detection Condition/Possible Causes (Part 2):

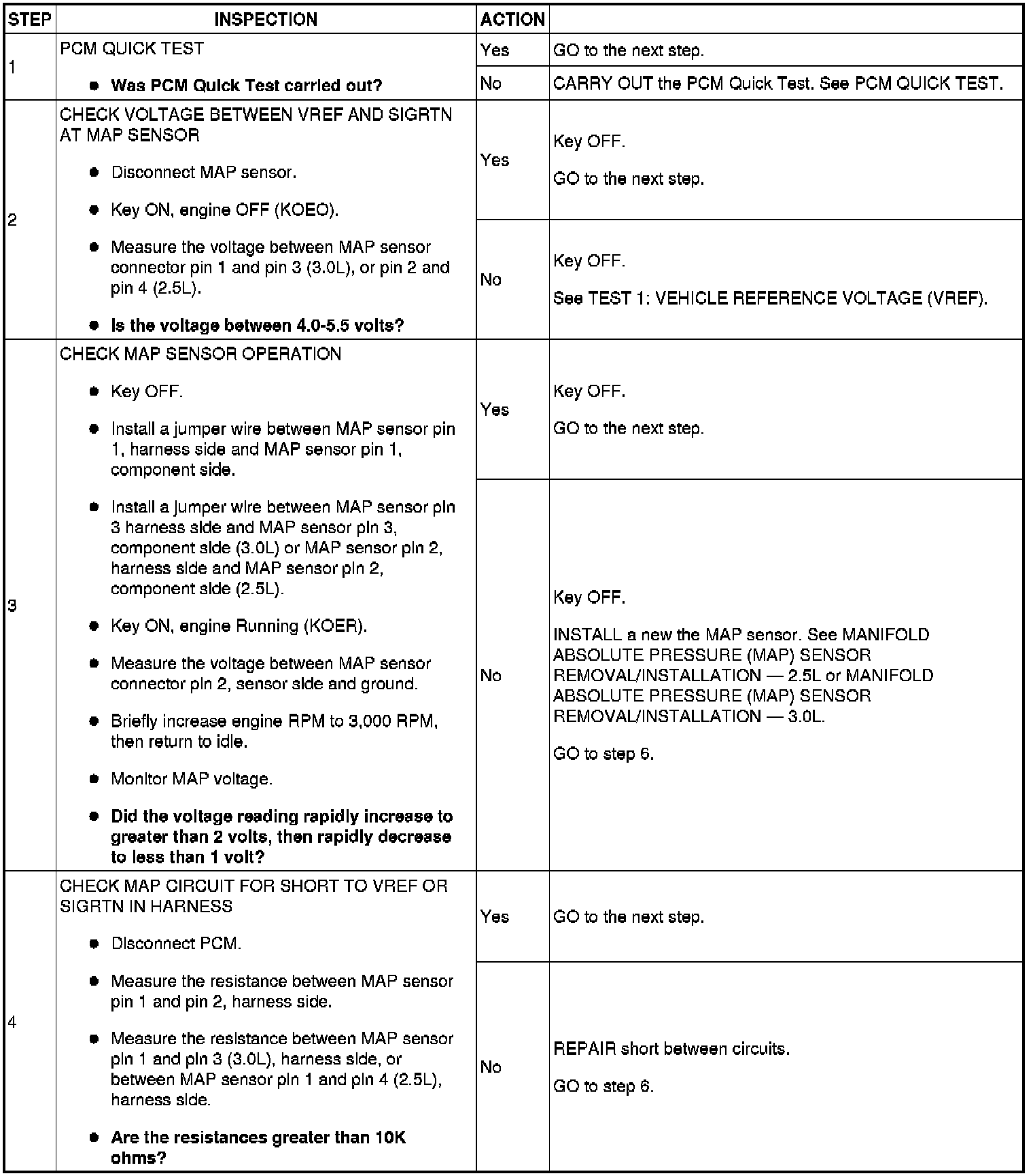

Step 1-Step 4:





Step 5-Step 6:
