Component Tests and General Diagnostics
ADAPTIVE FUEL CONTROL
Detection Condition/Possible Causes (Part 1):
Detection Condition/Possible Cause (Part 2):

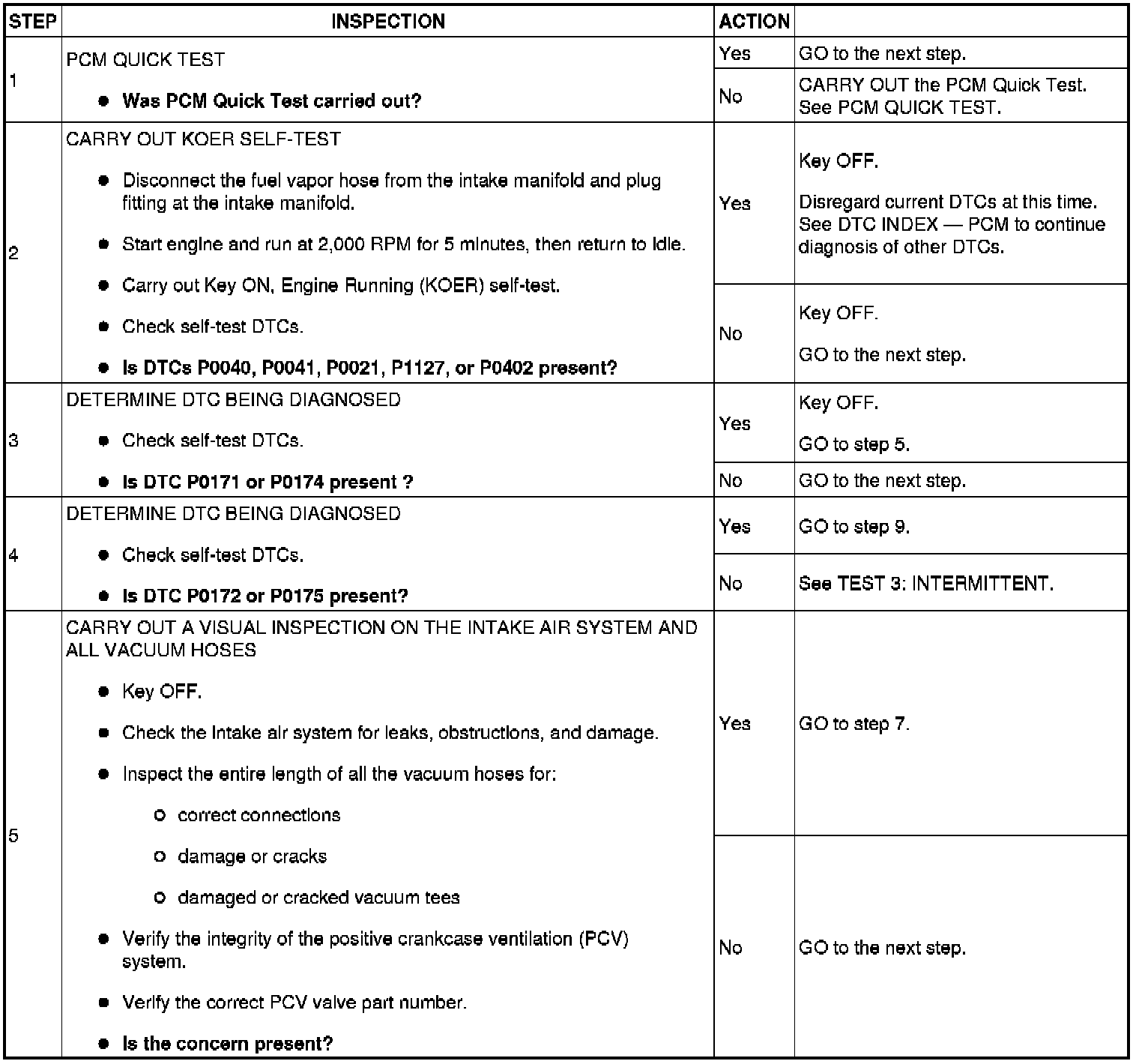

Step 1-Step 5:

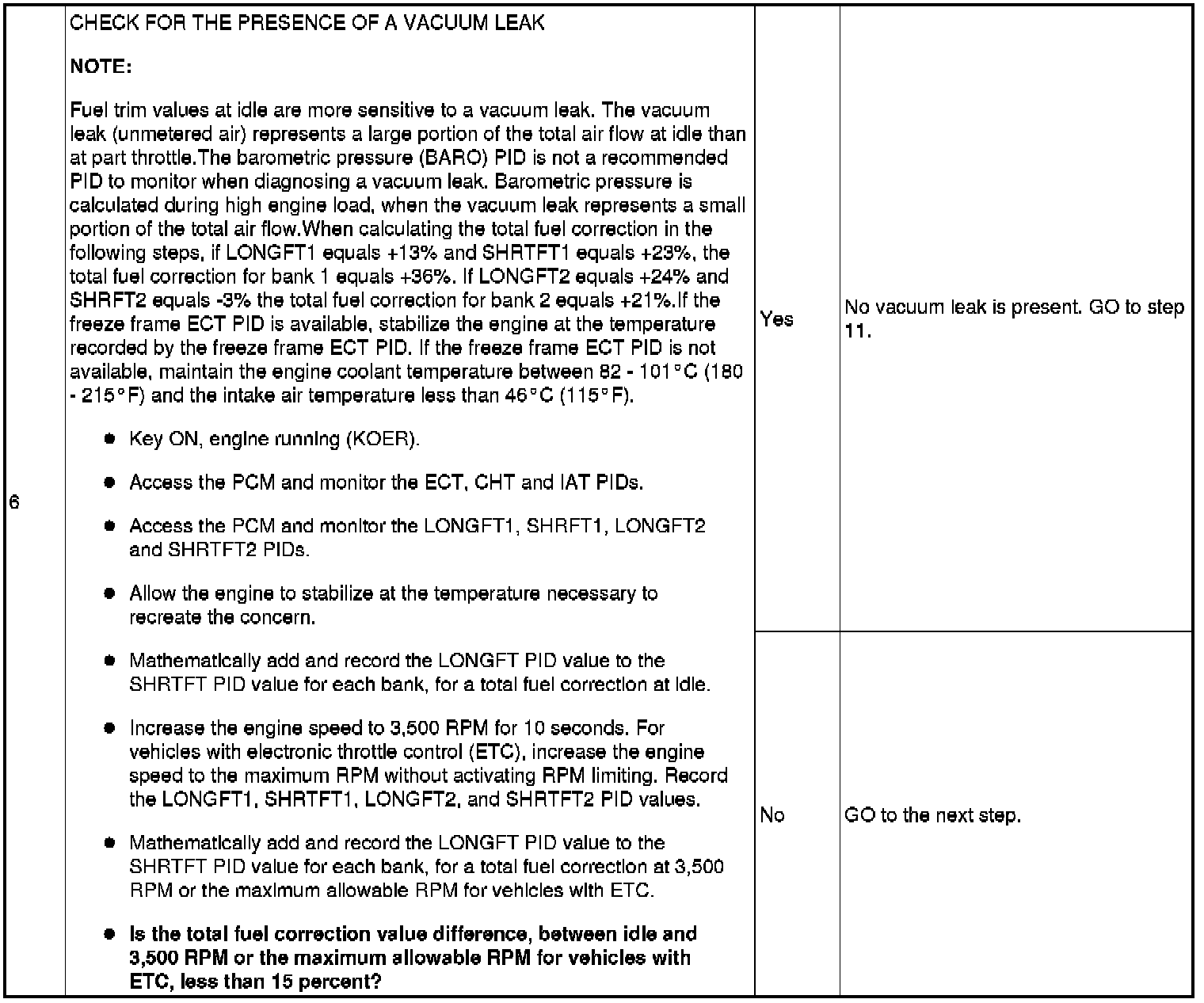

Step 6:

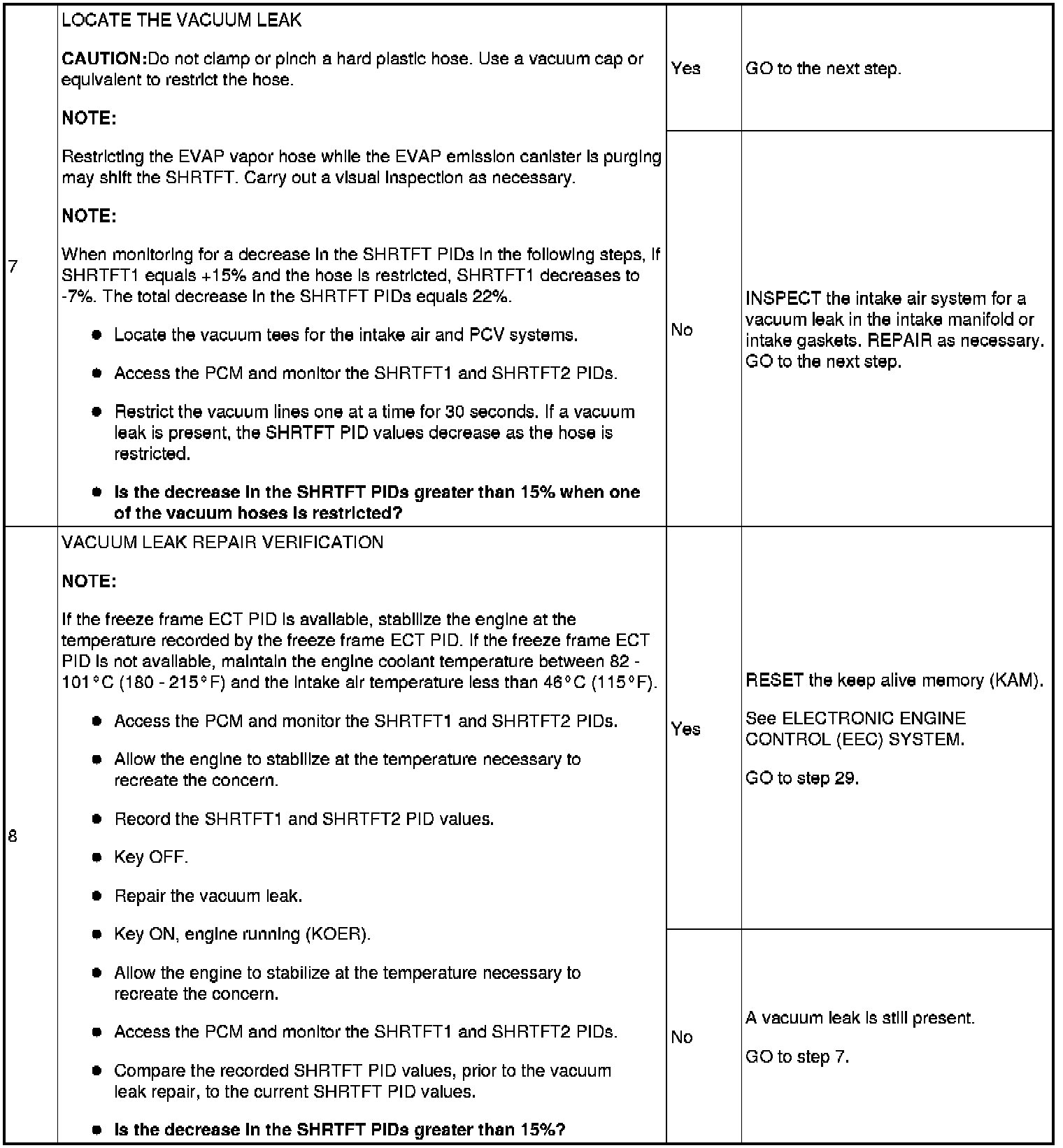

Step 7-Step 8:

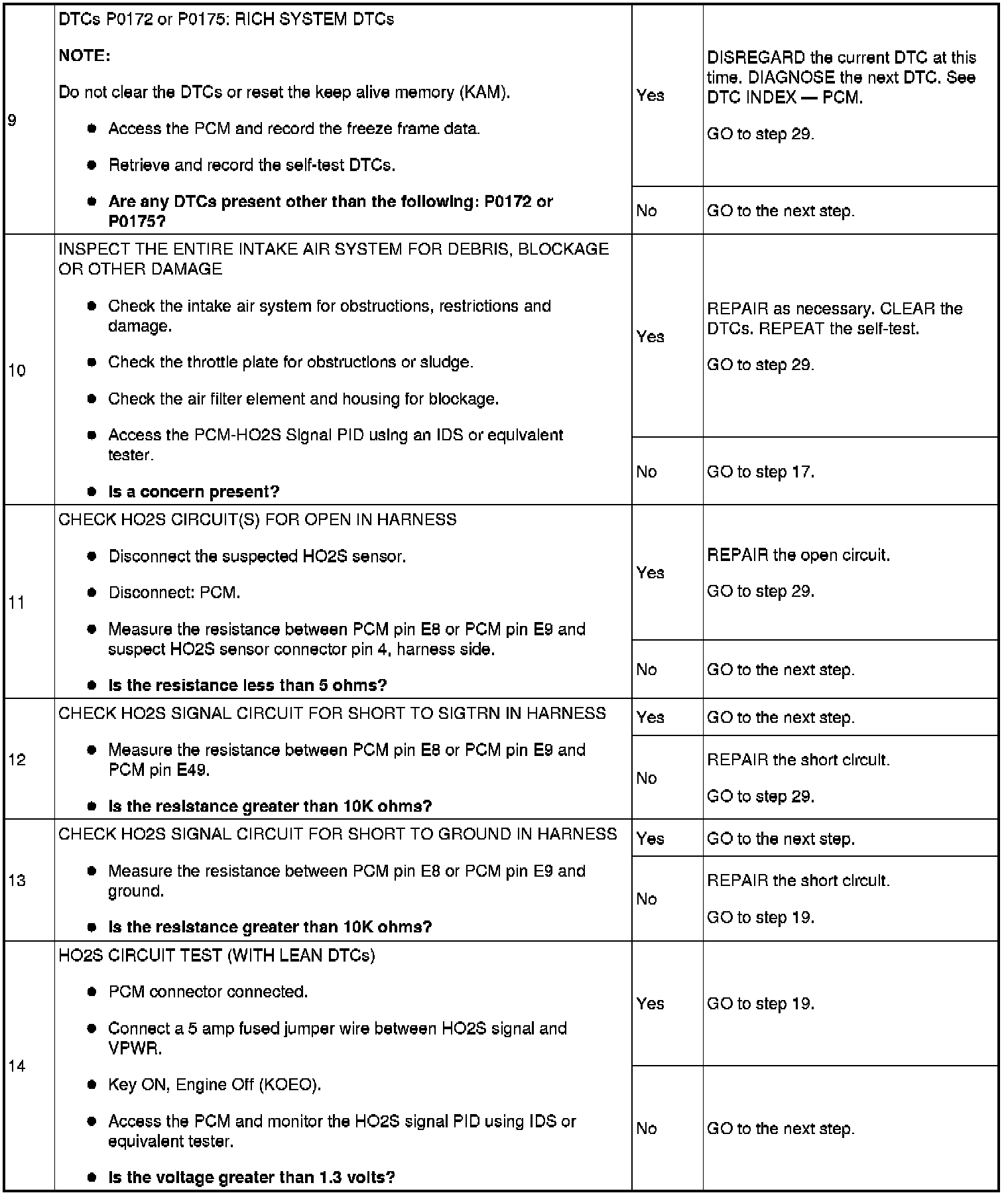

Step 9-Step 14:

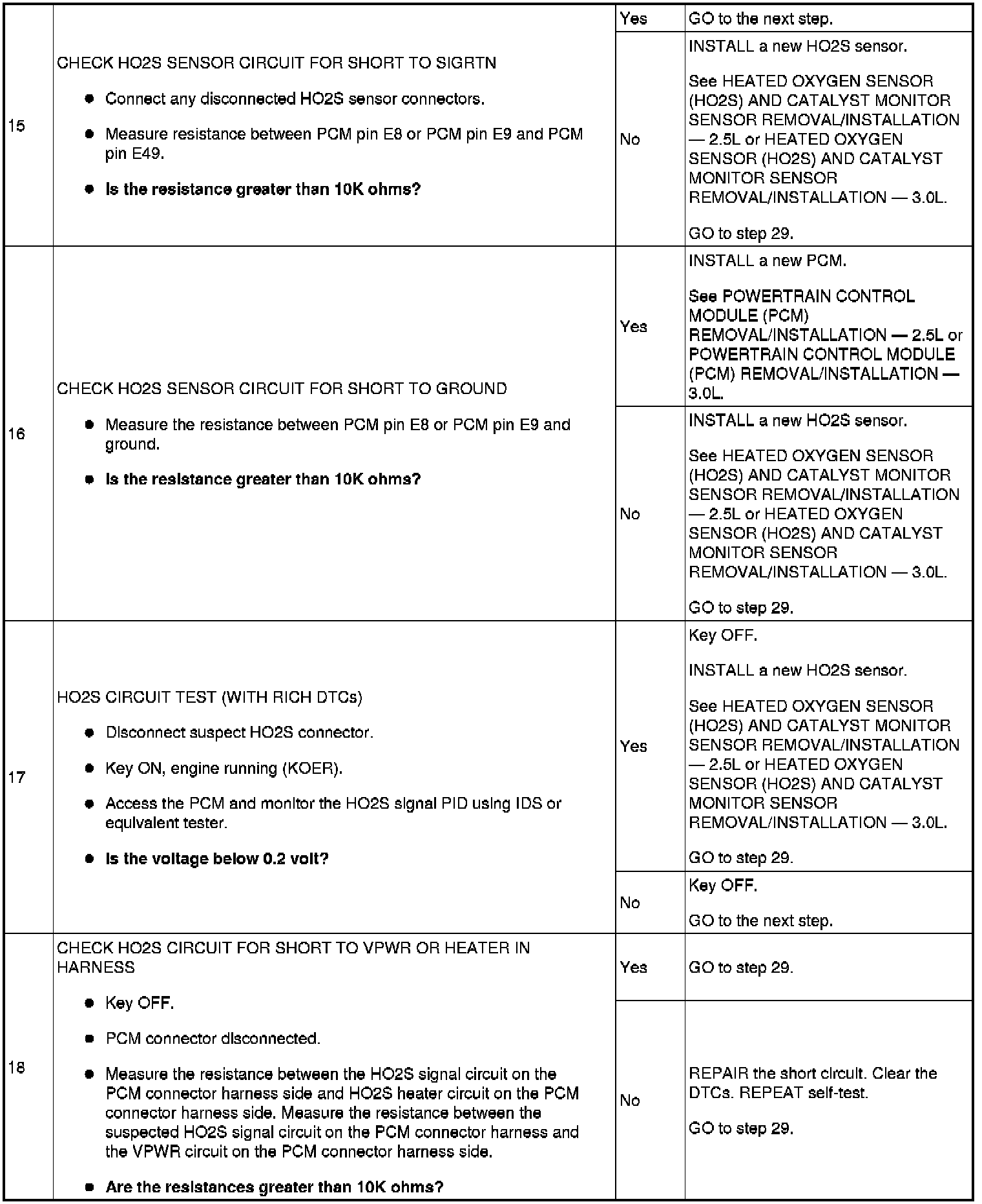

Step 15-Step 18:
Step 19:

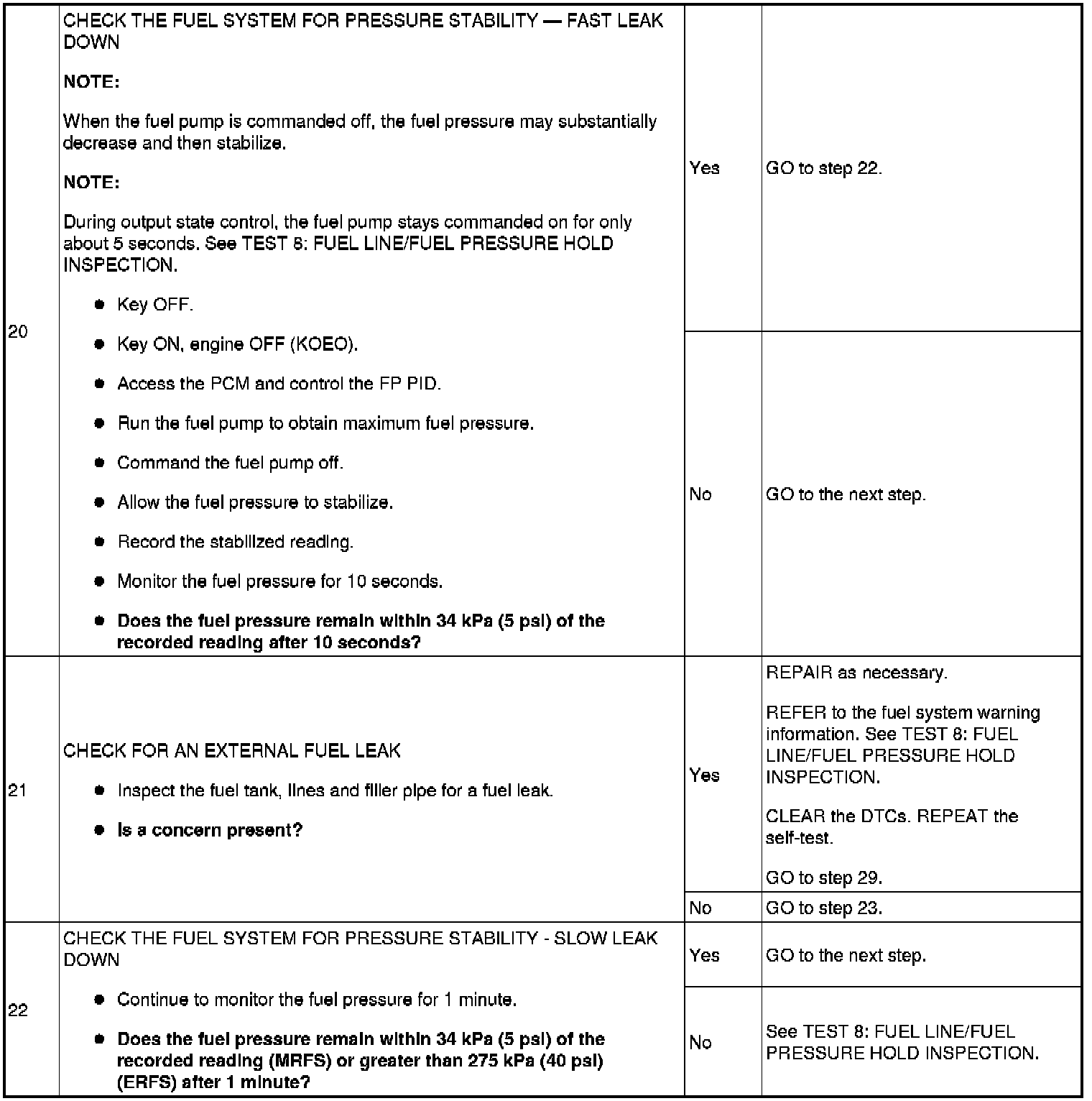

Step 20-Step 22:

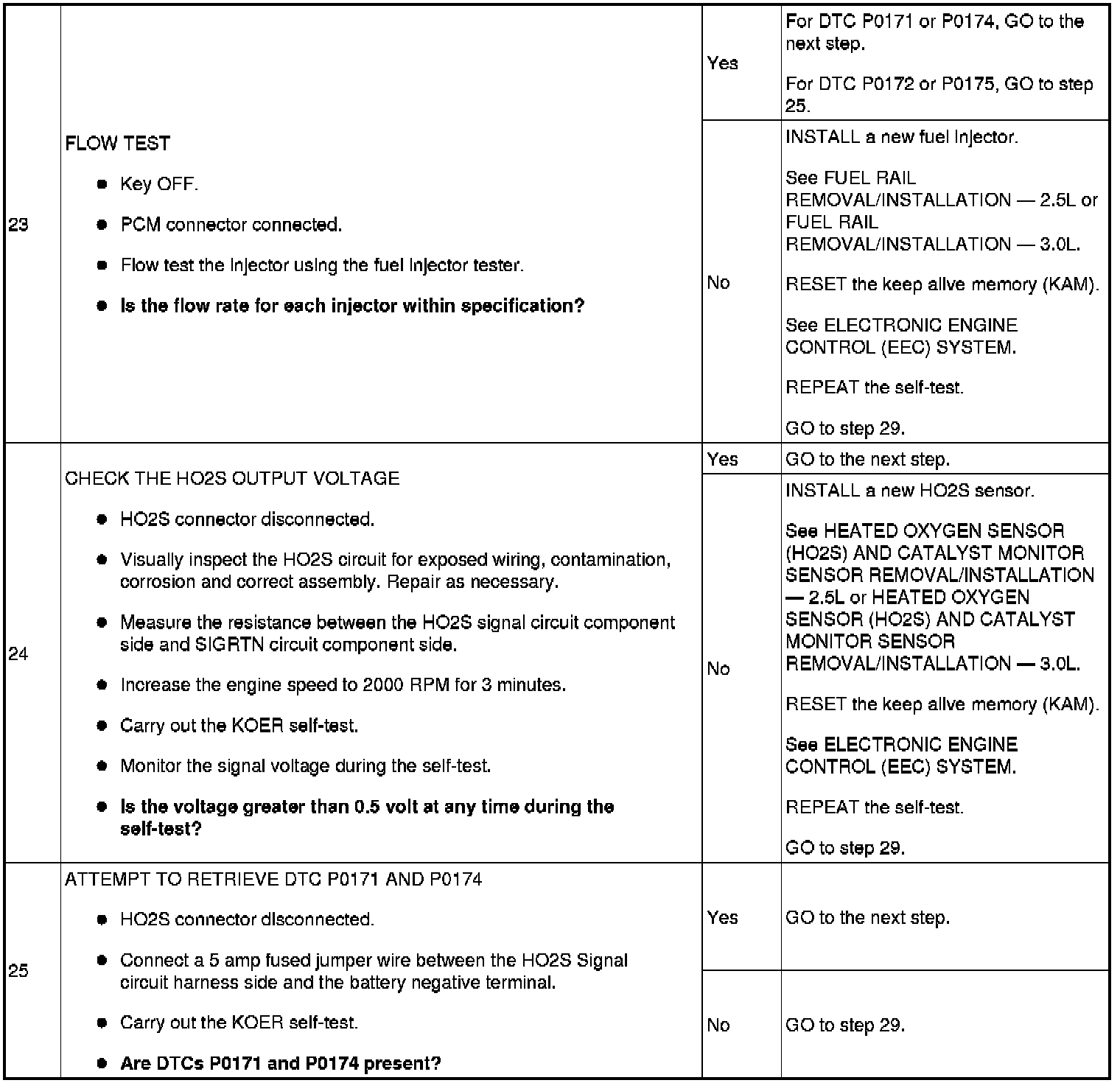

Step 23-Step 25:

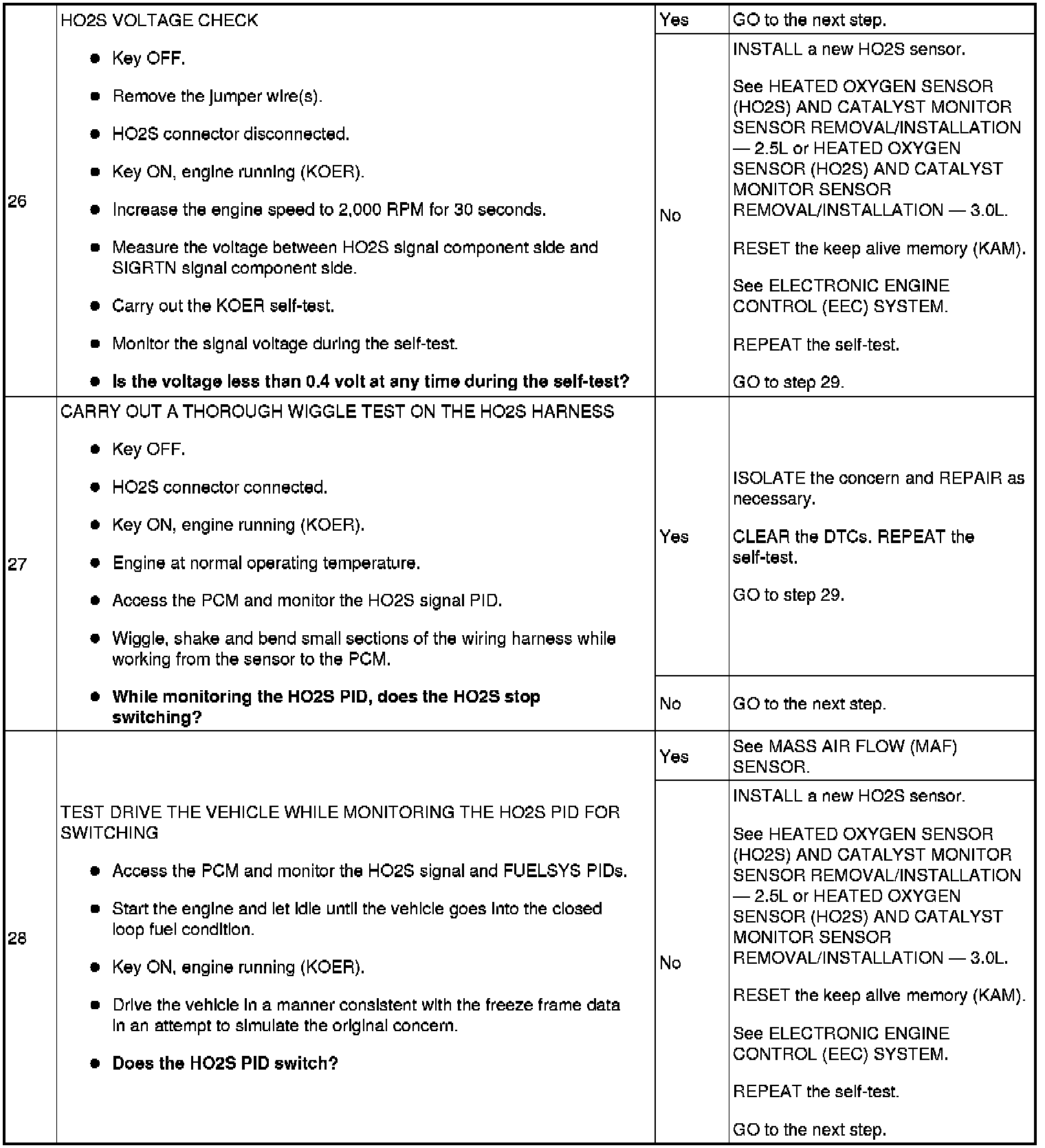

Step 26-Step 28:
Step 29:
