Ignition Coil: Service and Repair

-
IGNITION COIL-ON-PLUG REMOVAL/INSTALLATION - 2.5L

1. Disconnect the 4 ignition coil electrical connectors.

2. Remove the 4 stud bolts and the ignition coils.

- To install, tighten to 8 Nm {0.8 kgf-m, 71 in-lbf}.

NOTE:When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

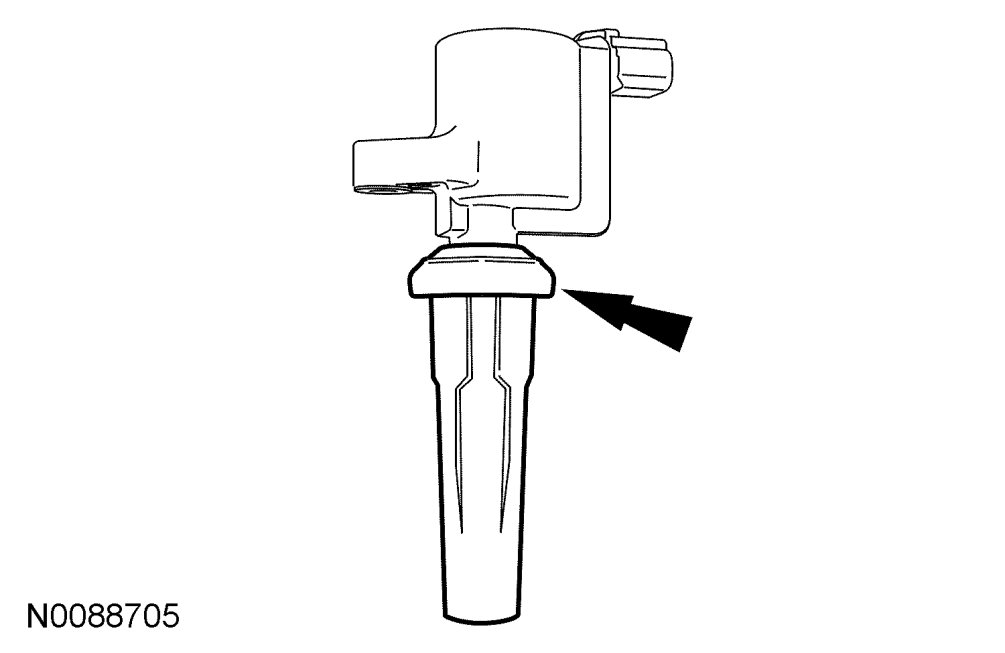

3. Inspect the coil seals for rips, nicks or tears. Remove and discard any damaged coil seals.

- To install, slide the new coil seal onto the coil until fully seated at the top of the coil.

4. To install, reverse the removal procedure.

- Apply a small amount of dielectric grease to the inside of the ignition coil boots before attaching to the spark plugs.
