Timing Cover

Engine front cover must be installed and the bolts tightened within 4 minutes of applying sealant.

Position the engine front cover and install the bolts.

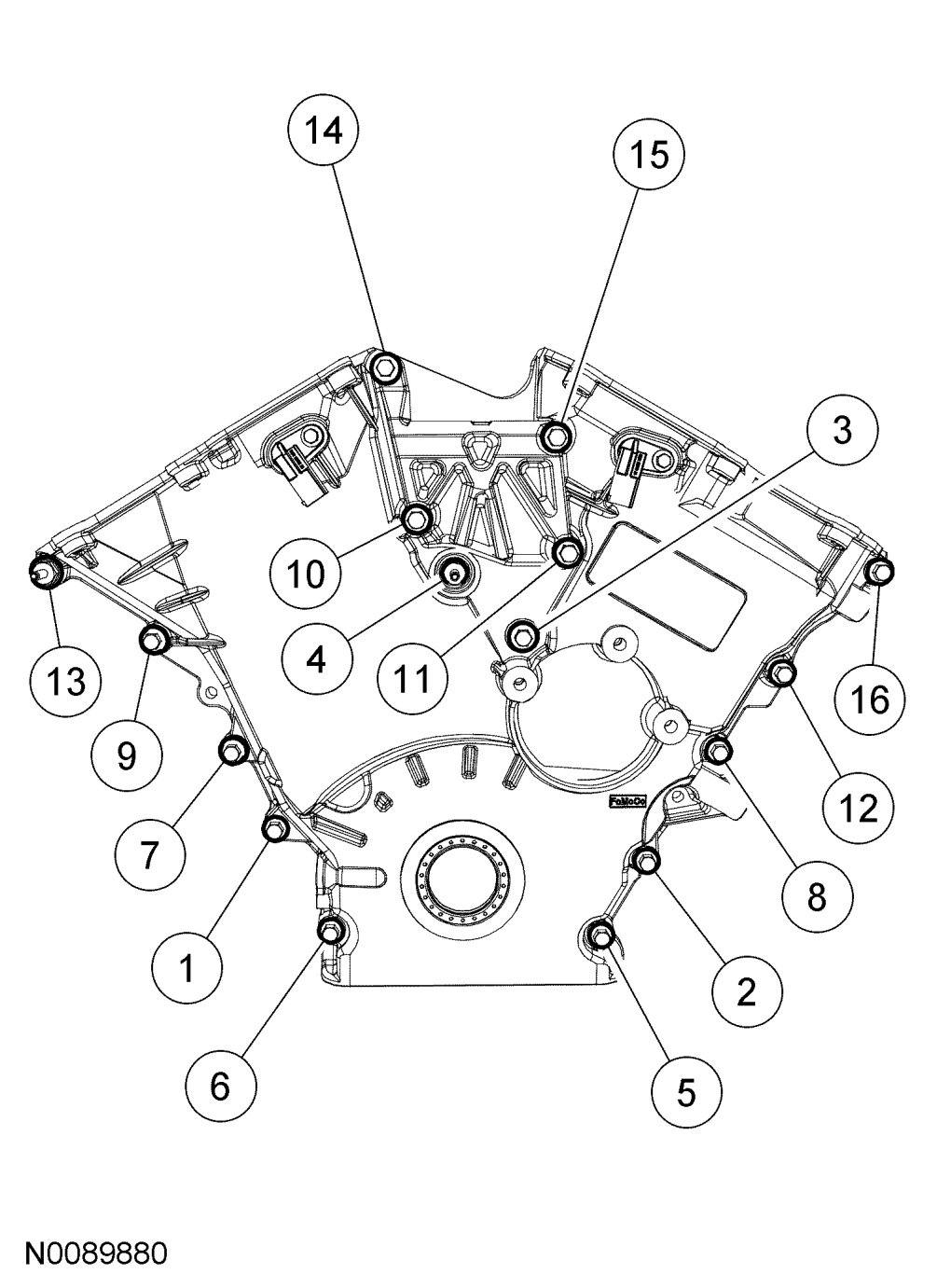

Tighten in the sequence shown to 25 Nm {2.5 kgf-m, 18 ft-lbf}.
