Crankshaft Position (CKP) Sensor Removal/Installation - 2.5L: Notes

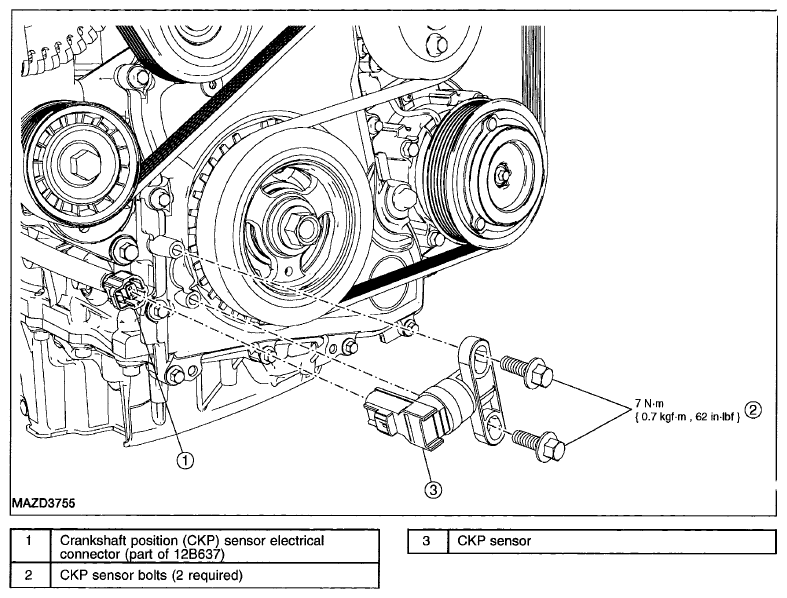

Fig 1: Identifying Crankshaft Position Sensor Removal/Installation - 2.5L
G06157204Courtesy of MAZDA MOTORS CORP.
