Engine Ignition - LH

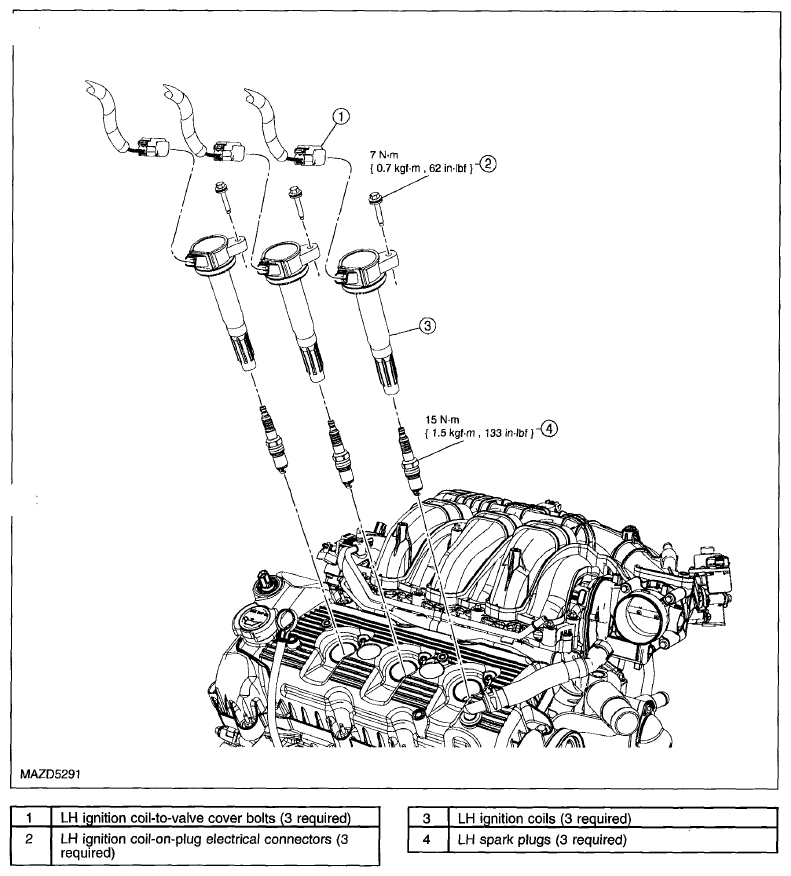

Fig 1: Identifying Engine Ignition Components - LH
G06157187Courtesy of MAZDA MOTORS CORP.
  1. For additional information, see the procedures in this service information.
