Engine Ignition - RH

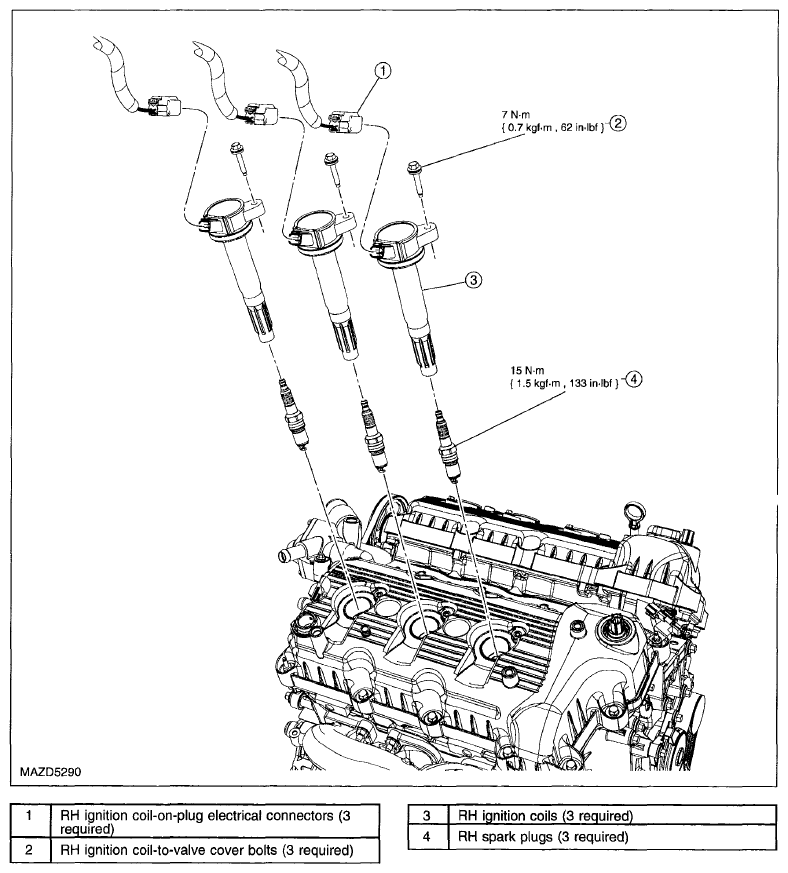

Fig 1: Identifying Engine Ignition Components - RH
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
