Tribute s Touring, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Ignition System - Non-Hybrid
>>
Engine Ignition Components - Exploded View
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Ignition Components - Exploded View: Notes

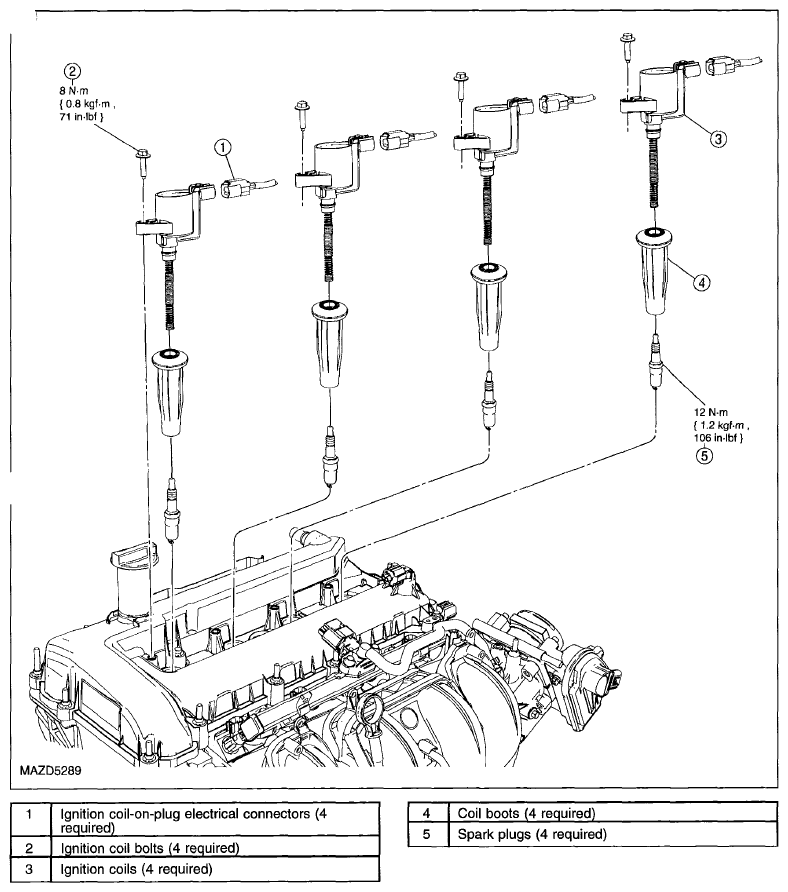

Fig 1: Identifying Engine Ignition Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
