Security Light: Not Illuminated, DTC B10E6:12/- Immobilizer System (Advanced Keyless Entry And Push Button Start System)




SECURITY LIGHT: NOT ILLUMINATED, DTC B10E6:12/- [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)]

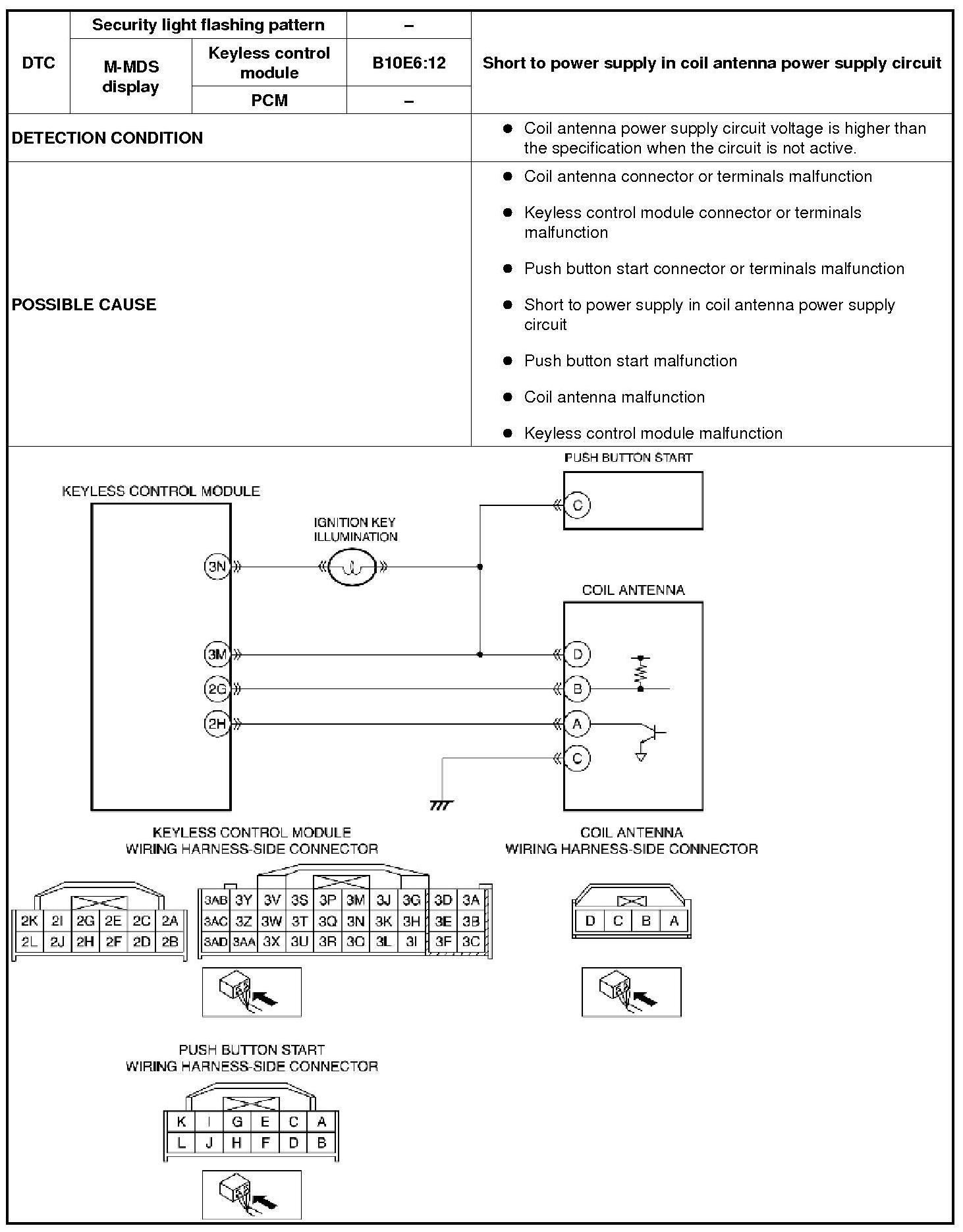

Detection Condition/Possible Cause:





Diagnostic Procedure

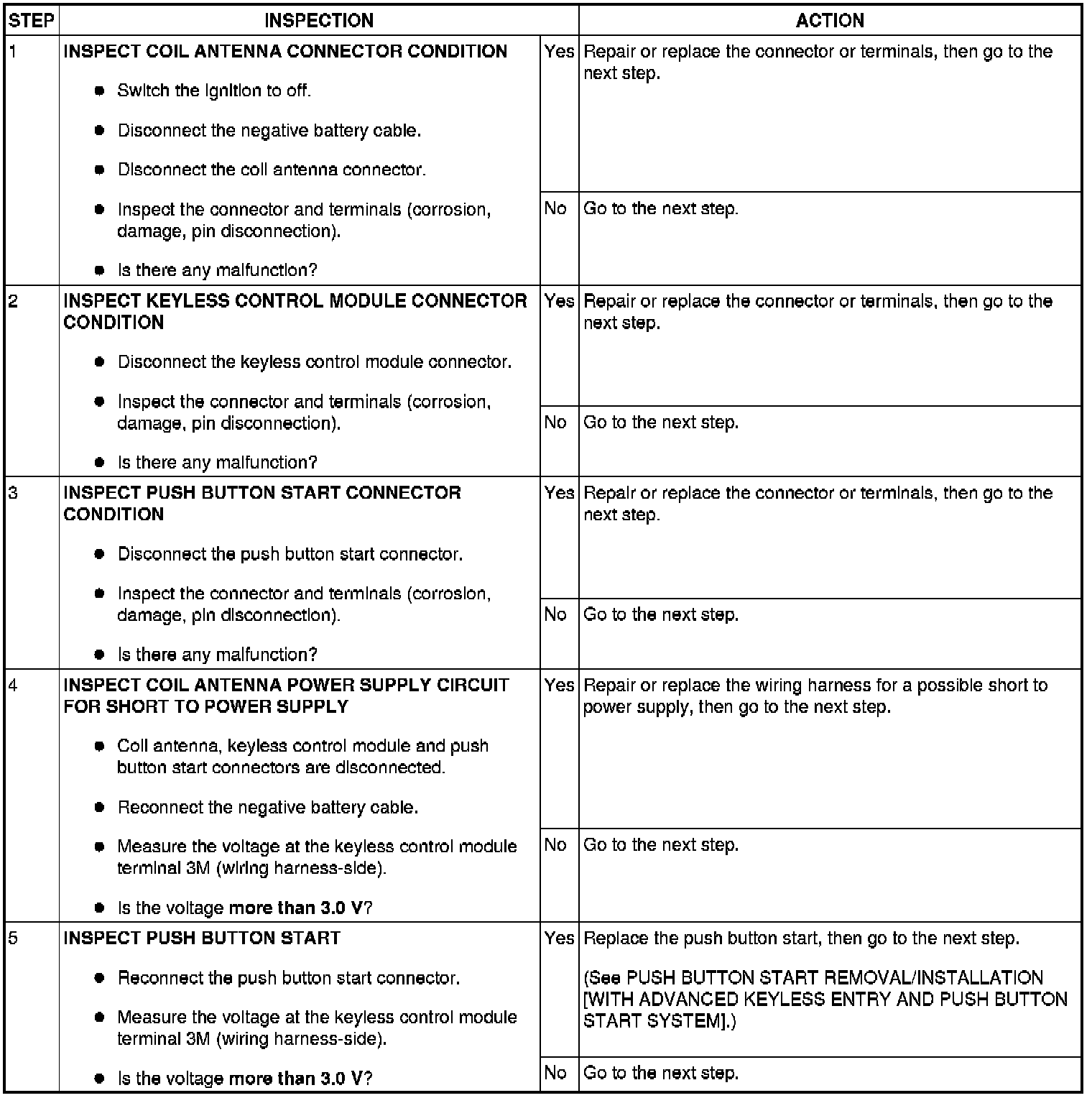

Step 1-Step 5:

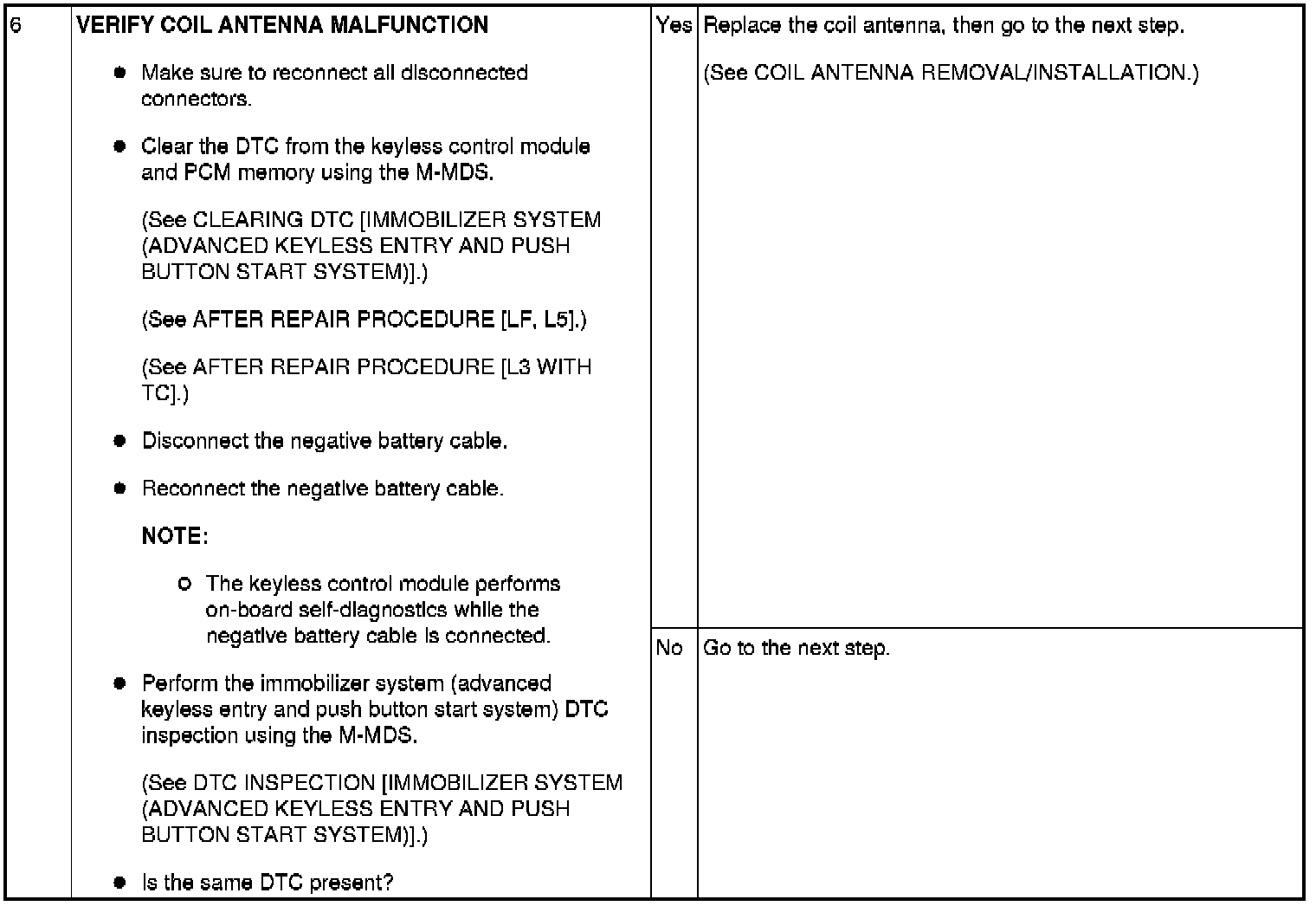

Step 6:

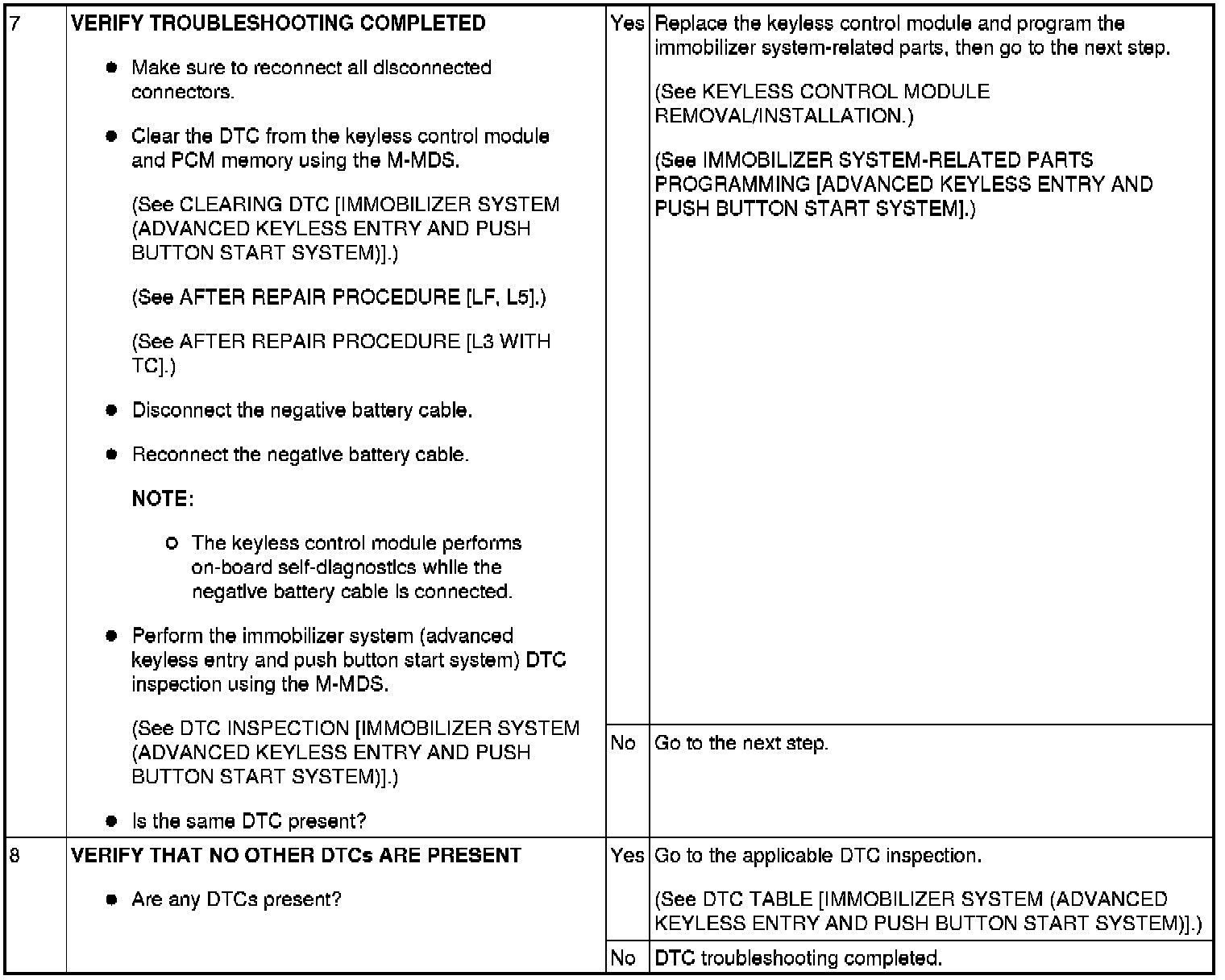

Step 7-Step 8:
